Topic: Rules with handling of conductors

Hello
Is there a particular rule for the labeling of conductors? Does the Multiline text column need to be a character or can it remain empty?
Best regards

Stebo

Re: Rules with handling of conductors

In folio properties i have in the "Type" tab the field "Text:" empty, so conductors initially have no naming, and most conductors i do not name.

There is still a invisible but selectable spot along the conductor for the "Text:" which is possible to select and edit.
Hard to find, but right click the conductor and hit Ctrl+e and edit anything about it.

Have you seen a problem?

Re: Rules with handling of conductors

And whether it is possible to move the conductor's marker aside. Permanently a problem with moving a conductor, I get on a marker.

4 (edited by Morganol 2017-02-05 19:58:59)

Re: Rules with handling of conductors

Yes the default position of conductor labels most often make them land on the neighbour so unless moved manually the labeling is wrong.  (my drawings are pretty dense)

https://qelectrotech.org/bugtracker/view.php?id=91
https://qelectrotech.org/bugtracker/view.php?id=89

I often move them so they "sit" on the conductor

Post's attachments

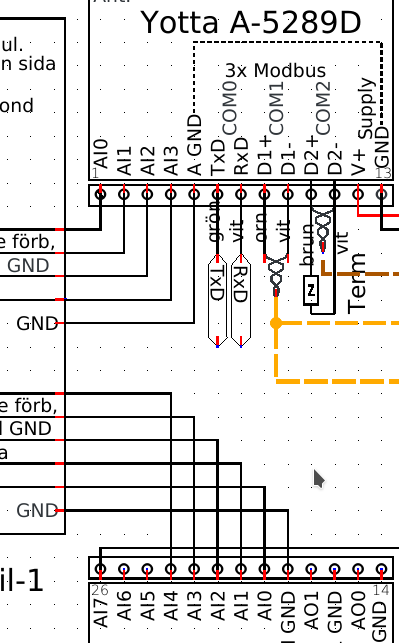

Screenshot_20170205_185236.png, 51.93 kb, 399 x 643
Screenshot_20170205_185236.png 51.93 kb, 326 downloads since 2017-02-05

Re: Rules with handling of conductors

Aleksandr wrote:

And whether it is possible to move the conductor's marker aside. Permanently a problem with moving a conductor, I get on a marker.

He understood himself. It is necessary to remove the mark of the text in the page properties.

Re: Rules with handling of conductors

Ah you wanted to remove it.
Sorry I misunderstood.

Re: Rules with handling of conductors

Didn't notice it earlier, but now often I get on the tag of the conductor, but not on the conductor
https://youtu.be/GZ-GecJmC1w

Re: Rules with handling of conductors

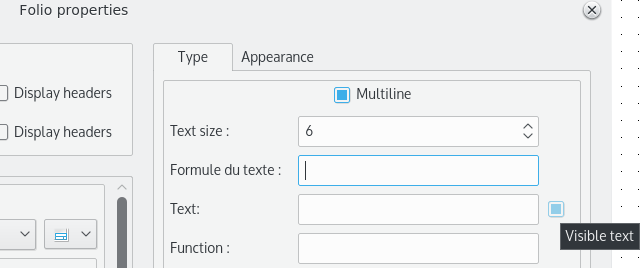

In the folio settings, remove the mark in the box next to "Visible text" in picture

Post's attachments

Screenshot_20170209_081414.png, 20.04 kb, 643 x 268
Screenshot_20170209_081414.png 20.04 kb, 302 downloads since 2017-02-09

Re: Rules with handling of conductors

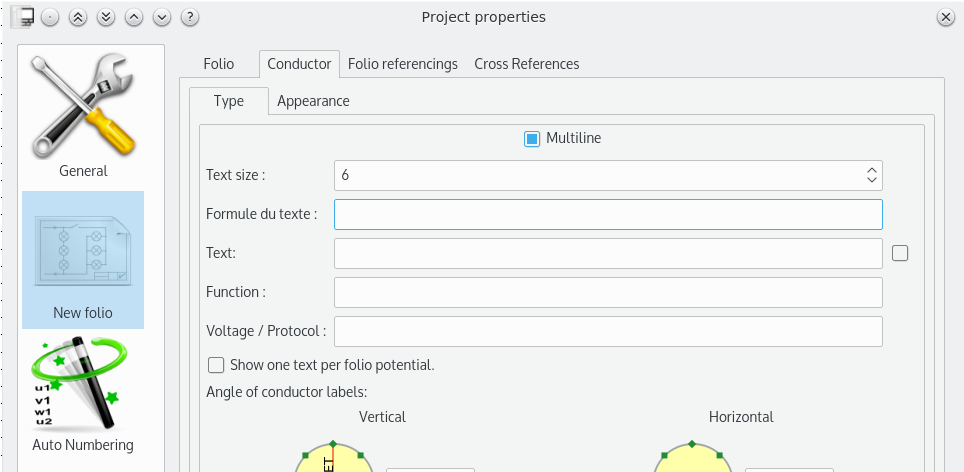

To set the defaults for new pages ("folios"), use Project properties.
Right click your project in the project list and select "Project properties" and select:

Post's attachments

Screenshot_20170209_081814.png, 71.24 kb, 964 x 472
Screenshot_20170209_081814.png 71.24 kb, 300 downloads since 2017-02-09
