Summary0000091: It would be nice to be able to set the default ofset for conductor labels
On many drawings i will probably make i have lots of wires (PLC interfaces) and need to set smaller test size and have labels touching the conductors.

On some types of drawings i would like labels to be centered; ofset =0
(also see referenced bug below regarding labels on front of conductors)

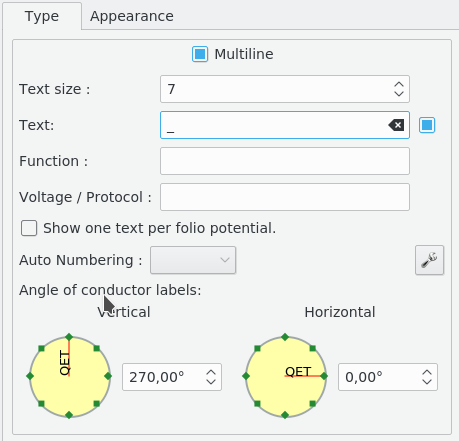

I think the perfect place for where to set it would be right above "Angle of conductor labels:" in attached screen-shot. Something like

    Label ofset: [ -15 ]

Default is some negative value so it is exactly like the default today; a bit under / right of conductors.

Related with:
TagsNo tags attached.



2016-10-07 19:31




2020-05-12 12:03

developer   ~0000420

La gestion des textes de conducteur a été amélioré depuis.
