Topic: potenzials

Hello
I've been working with some versions QTech but with all the problem with cross-references. If I call the current-carrying conductor with eg L1, L2, L3, and this is with fuses Connect everything OK
but if I label manager with N and PE, and this will connect with, for example, terminals shown me again and again, the PE or N several times exist no matter how I this confirms all previously designated Leiter renamed PE or vice versa as if a connection would be between the potentials.

Sincerely yours

Stebo

  • scorpio810
  • scorpio810
  • QElectroTech Team Manager, Developer, Packager
  • Offline

Re: potenzials

Hello,
Wat Qet version you use?

"Le jour où tu découvres le Libre, tu sais que tu ne pourras jamais plus revenir en arrière..."

Re: potenzials

Hello
I work with the versions 20.02.2015 Version 0.4
and to test 0.5-dev + 3929-1

  • scorpio810
  • scorpio810
  • QElectroTech Team Manager, Developer, Packager
  • Offline

Re: potenzials

Could you send me a example or your project to see this problem?

"Le jour où tu découvres le Libre, tu sais que tu ne pourras jamais plus revenir en arrière..."

Re: potenzials

Hello
How can I upload the project have no idea

  • scorpio810
  • scorpio810
  • QElectroTech Team Manager, Developer, Packager
  • Offline

Re: potenzials

Hello,
You could click on cite link.

https://download.qelectrotech.org/qet/forum_img/cite_link.png

"Le jour où tu découvres le Libre, tu sais que tu ne pourras jamais plus revenir en arrière..."

7 Reply by Calypso (edited by Calypso 2015-05-03 20:22:22)

Re: potenzials

Hello
I hope found the way

Post's attachments

Attachment icon Test.qet 128.34 kb, 430 downloads since 2015-05-03

  • scorpio810
  • scorpio810
  • QElectroTech Team Manager, Developer, Packager
  • Offline

Re: potenzials

Hello,
I see a little mistake in your project.nomicons/tongue
https://download.qelectrotech.org/qet/forum_img/caplyso.png
https://download.qelectrotech.org/qet/forum_img/caplyso1.png

"Le jour où tu découvres le Libre, tu sais que tu ne pourras jamais plus revenir en arrière..."

9 Reply by Calypso (edited by Calypso 2015-05-03 21:50:34)

Re: potenzials

Hello

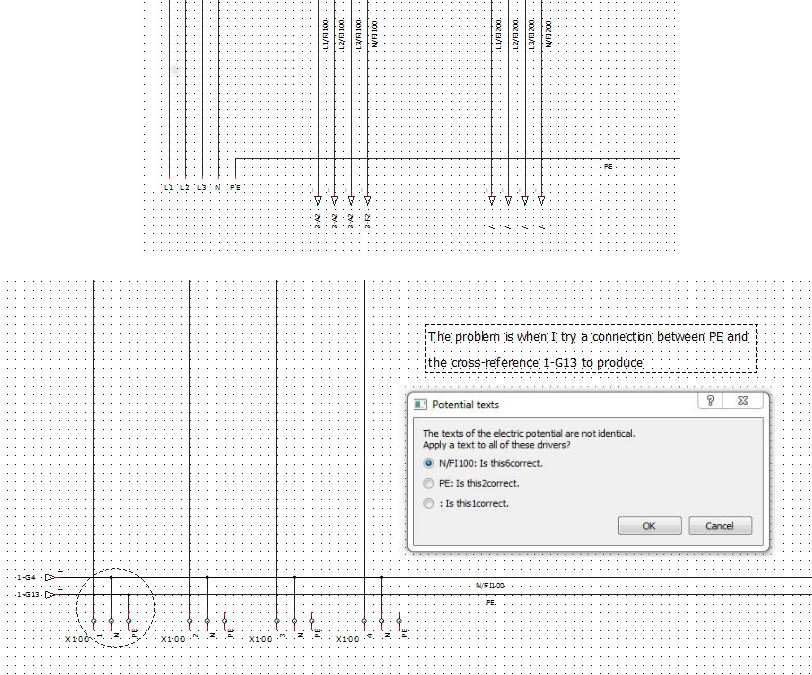

I have two pictures of the drawing looks like here with me. There is no connection between N / PE when I insert a new connection between cross-reference 1-G13 and the terminal X100 / PE appears the selection. Opt N / FI100 specify the potentials in PE N / FI100 be changed and if I will select them PE also changed the N potential in PE

Post's attachments

Picture 1.JPG, 377.4 kb, 812 x 675
Picture 1.JPG 377.4 kb, 525 downloads since 2015-05-03

  • scorpio810
  • scorpio810
  • QElectroTech Team Manager, Developer, Packager
  • Offline

Re: potenzials

Strange, but you are right.
Delete all connections  N and PE in all X100 and redraw also it run better after.
https://download.qelectrotech.org/qet/forum_img/caplyso2.png

"Le jour où tu découvres le Libre, tu sais que tu ne pourras jamais plus revenir en arrière..."

11 Reply by Calypso (edited by Calypso 2015-05-05 19:21:53)

Re: potenzials

Hello

Thanks for your help.



Sincerely yours



SteBo

Re: potenzials

Hello

I have the error found it was the terminal

but I do not know why. I have the terminal new created




Sincerely yours



SteBo

  • scorpio810
  • scorpio810
  • QElectroTech Team Manager, Developer, Packager
  • Offline

Re: potenzials

Hello,
Thank you for the feedback.

"Le jour où tu découvres le Libre, tu sais que tu ne pourras jamais plus revenir en arrière..."

14 Reply by Calypso (edited by Calypso 2015-06-03 22:30:43)

Re: potenzials

Hello
After several try with terminals I've found the problem has to do with what is selected when the component editor as basic type. Is simply selected as the base type will not make any mistakes. Is selected as the basic type terminal strip conductors names get mixed up. Is it important for a function, which is selected as a terminal base type

Sincerely yours

SteBo
