Topic: Conductor's label blocked

Hi

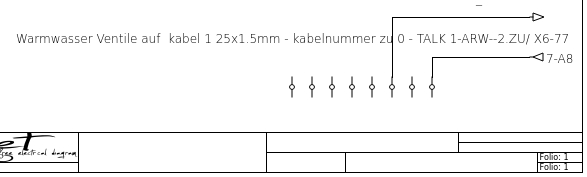

Sometimes happen that conductor's label is getting blocked and I can not move it freely (look at the pic attached). I was triying to move the yellow label to the left but the program does not allow me. Moreover other labels I had problems to move them freely up and down. Is there a way to solve it?

Thanks!

Post's attachments

Screenshoot.png, 21.76 kb, 798 x 700
Screenshoot.png 21.76 kb, 343 downloads since 2017-10-18

  • scorpio810
  • scorpio810
  • QElectroTech Team Manager, Developer, Packager
  • Offline

Re: Conductor's label blocked

Hi,

the movement of a conductor's label is limited in the code.

"Le jour où tu découvres le Libre, tu sais que tu ne pourras jamais plus revenir en arrière..."

3 Reply by leenk10 (edited by leenk10 2017-10-18 13:31:50)

Re: Conductor's label blocked

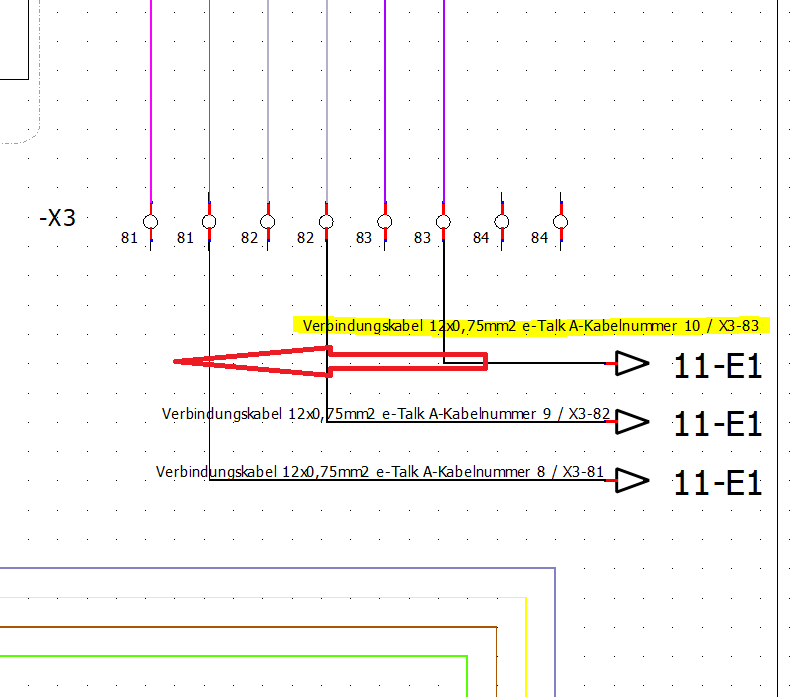

So there is no way to solve this, isn't it?

Post's attachments

Unbenannt2.JPG, 86.46 kb, 829 x 709
Unbenannt2.JPG 86.46 kb, 338 downloads since 2017-10-18

  • scorpio810
  • scorpio810
  • QElectroTech Team Manager, Developer, Packager
  • Offline

Re: Conductor's label blocked

Of course we can increase the limit value in the code.
But, not time this days to found this line code in this big program.

"Le jour où tu découvres le Libre, tu sais que tu ne pourras jamais plus revenir en arrière..."

5 Reply by Calypso (edited by Calypso 2017-10-18 16:15:15)

Re: Conductor's label blocked

Hello leenk10

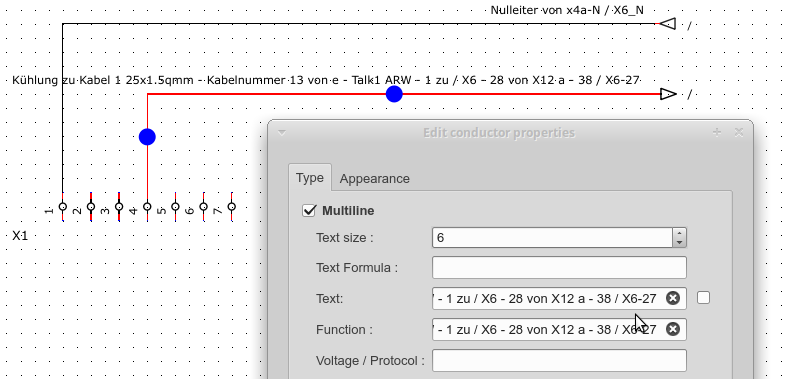

you can copy the conductortext into the field Function or Voltage / protocol.
The texts function or voltage / protocol you can move larger.



Best regards
Stebo


EDIT: The texts for function or voltage / protocoll must be assigned to the element for slide references in the editor because they are not present in the standard symbol.

Post's attachments

Bildschirmfoto 2017-10-18 15:33:08.png, 42.73 kb, 787 x 379
Bildschirmfoto 2017-10-18 15:33:08.png 42.73 kb, 335 downloads since 2017-10-18

  • scorpio810
  • scorpio810
  • QElectroTech Team Manager, Developer, Packager
  • Offline

Re: Conductor's label blocked

Like this :

https://youtu.be/xoRwsC17nlo

"Le jour où tu découvres le Libre, tu sais que tu ne pourras jamais plus revenir en arrière..."

Re: Conductor's label blocked

Merci guys!!!! nomicons/wink

Re: Conductor's label blocked

Hi,
I am still having problems to fit the label in the sheet, could you fix this issue?

Thanks in advance for this and for this great software!

Re: Conductor's label blocked

Hello,

Have found the solution after a long time.
See Forum Progamming Code





Erik

I am an pre-retired industrial developer technician and born in 1960

10 Reply by McCormick (edited by McCormick 2018-11-29 00:33:26)

Re: Conductor's label blocked

Hi,
I am still having problems to fit the label in the sheet, could you fix this issue?
Thanks in advance for this and for this great software!

Re: Conductor's label blocked

@McCormick

Your answer has happened too quickly.
The changes still have to be made by scorpio810(Laurent) or Joshua.

Have the source file retrieved from svn.
The changes made.
Compiles the program.

This is the result.

Post's attachments

QET-Conductor text change.jpg, 28.28 kb, 587 x 177
QET-Conductor text change.jpg 28.28 kb, 282 downloads since 2018-11-29

I am an pre-retired industrial developer technician and born in 1960
