Topic: Cross referencing symbols

I am learning...

I can link coils and contacts.
It seems though, that power contacts are not listed under the coils, see picture.
I guess that is a bug?
Can i edit the contact element somehow to get it working?

QET revision 4728

Post's attachments

Screenshot_20160930_094750.png, 4.95 kb, 258 x 146
Screenshot_20160930_094750.png 4.95 kb, 302 downloads since 2016-09-30

Re: Cross referencing symbols

You have to change style about xref in project setting :

Post's attachments

Capture du 2016-09-30 18-15-09.png, 8 kb, 529 x 350
Capture du 2016-09-30 18-15-09.png 8 kb, 314 downloads since 2016-09-30

Re: Cross referencing symbols

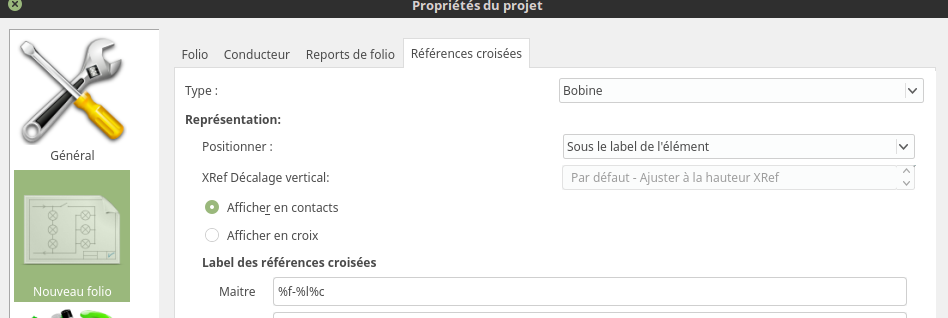

Here:

Post's attachments

Capture du 2016-09-30 18-22-56.png, 51.79 kb, 948 x 318
Capture du 2016-09-30 18-22-56.png 51.79 kb, 366 downloads since 2016-09-30
