Topic: Cross referencing symbols

I am learning...

I can link coils and contacts.

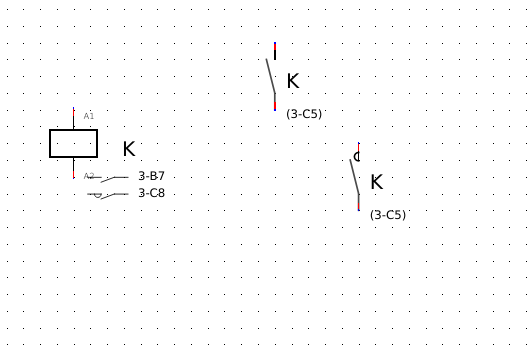

It seems though, that power contacts are not listed under the coils, see picture.
I guess that is a bug?
Can i edit the contact element somehow to get it working?

QET revision 4728

Post's attachments

Attachment icon Screenshot_20160930_094750.png 4.95 kb, 312 downloads since 2016-09-30

2 Reply by galexis

  • galexis
  • Membre
  • Offline

Re: Cross referencing symbols

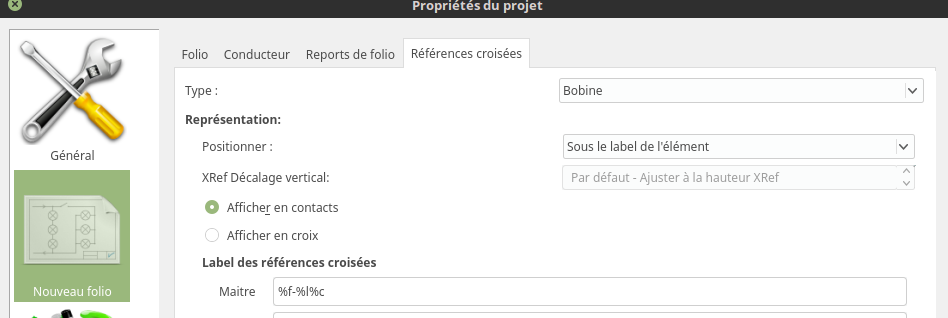

You have to change style about xref in project setting :

Post's attachments

Attachment icon Capture du 2016-09-30 18-15-09.png 8 kb, 322 downloads since 2016-09-30

3 Reply by galexis

  • galexis
  • Membre
  • Offline

Re: Cross referencing symbols

Here:

Post's attachments

Attachment icon Capture du 2016-09-30 18-22-56.png 51.79 kb, 375 downloads since 2016-09-30
