Topic: is it possible to scale elements to a specific size?

Hi there,
Im trying to create an overview page for my PLC (Siemens logo!).

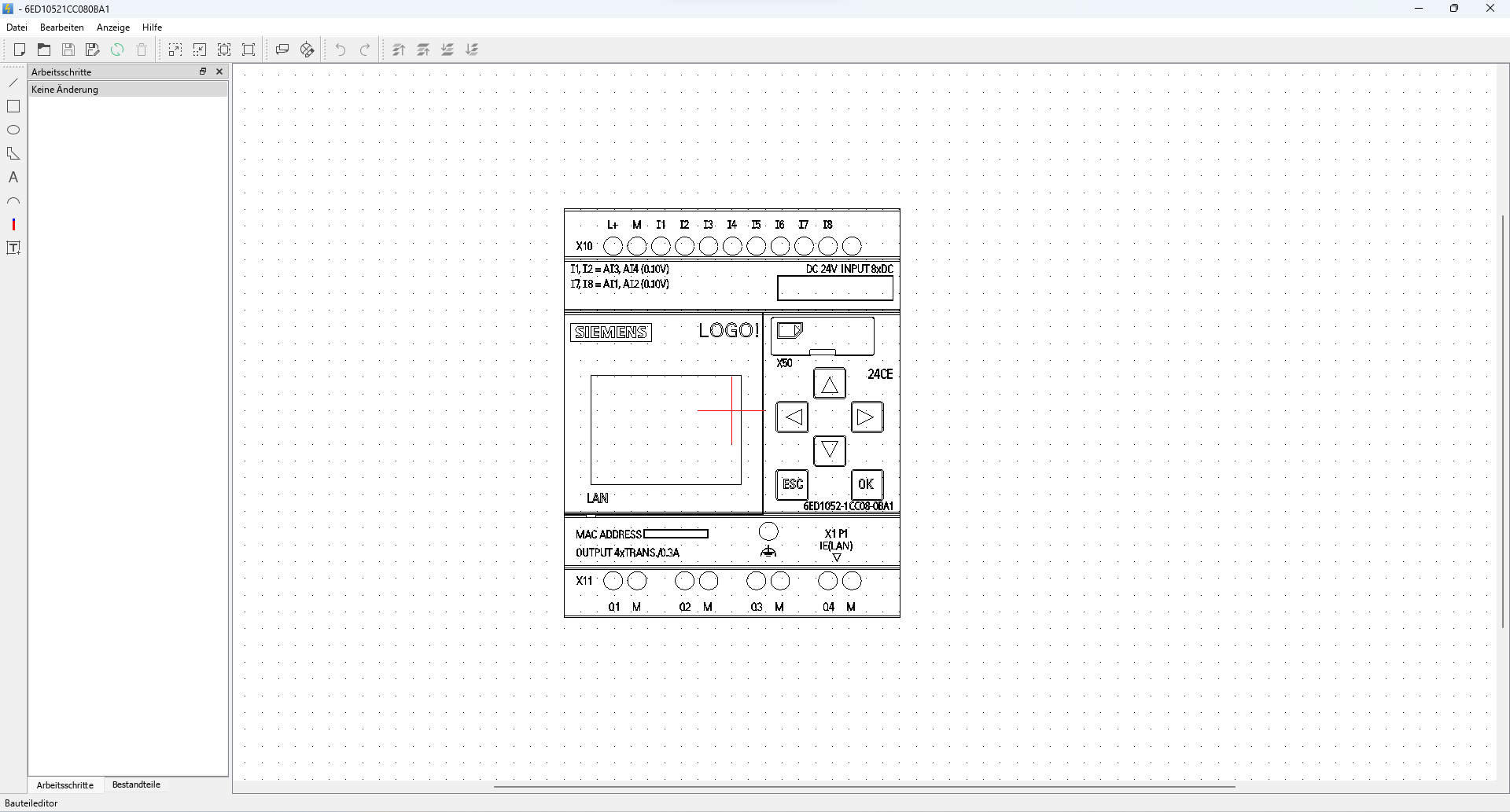

So i downloaded the dxf files of the devices im using and used the dxf to element plugin.
After creating the new elements I saw that they were too small. Now I am wondering if there is a way to make an element a specific size (not just eyeballing it with the green dots in the editor).
I need them to be the same size because I also need some extension modules for the logo.
I could make the Logo CPU + extension module in one element, but then I would need a new element for each configuration.

Post's attachments

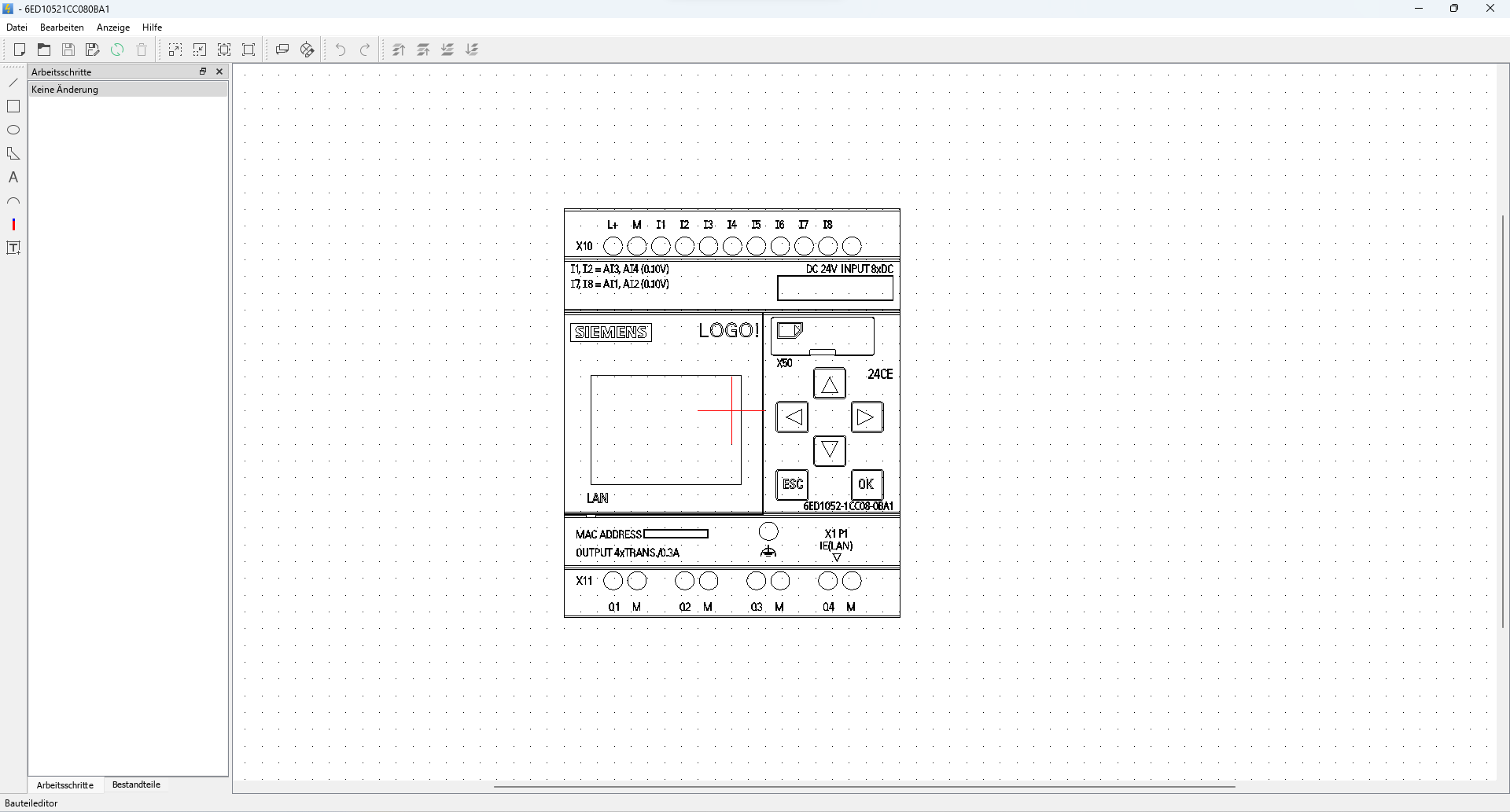

Attachment icon Screenshot 2024-01-17 101615.png 41.37 kb, 25 downloads since 2024-01-17

2 Reply by scorpio810

  • scorpio810
  • scorpio810
  • QElectroTech Team Manager, Developer, Packager
  • Offline

Re: is it possible to scale elements to a specific size?

Hi,
see https://qelectrotech.org/forum/viewtopic.php?id=1946

"Le jour où tu découvres le Libre, tu sais que tu ne pourras jamais plus revenir en arrière..."Questions regarding QET belong in this forum and will NOT be answered via PM! – Les questions concernant QET doivent être posées sur ce forum et ne seront pas traitées par MP !

3 Reply by scorpio810

  • scorpio810
  • scorpio810
  • QElectroTech Team Manager, Developer, Packager
  • Offline

Re: is it possible to scale elements to a specific size?

Siemens Logo is in QET collection -> https://download.qelectrotech.org/qet/e … index.html
https://download.qelectrotech.org/qet/elements/10_electric/20_manufacturers_articles/siemens/01_PLC_controllers/logo/siemenslogo230rce.svg
