Topic: proposal of operation

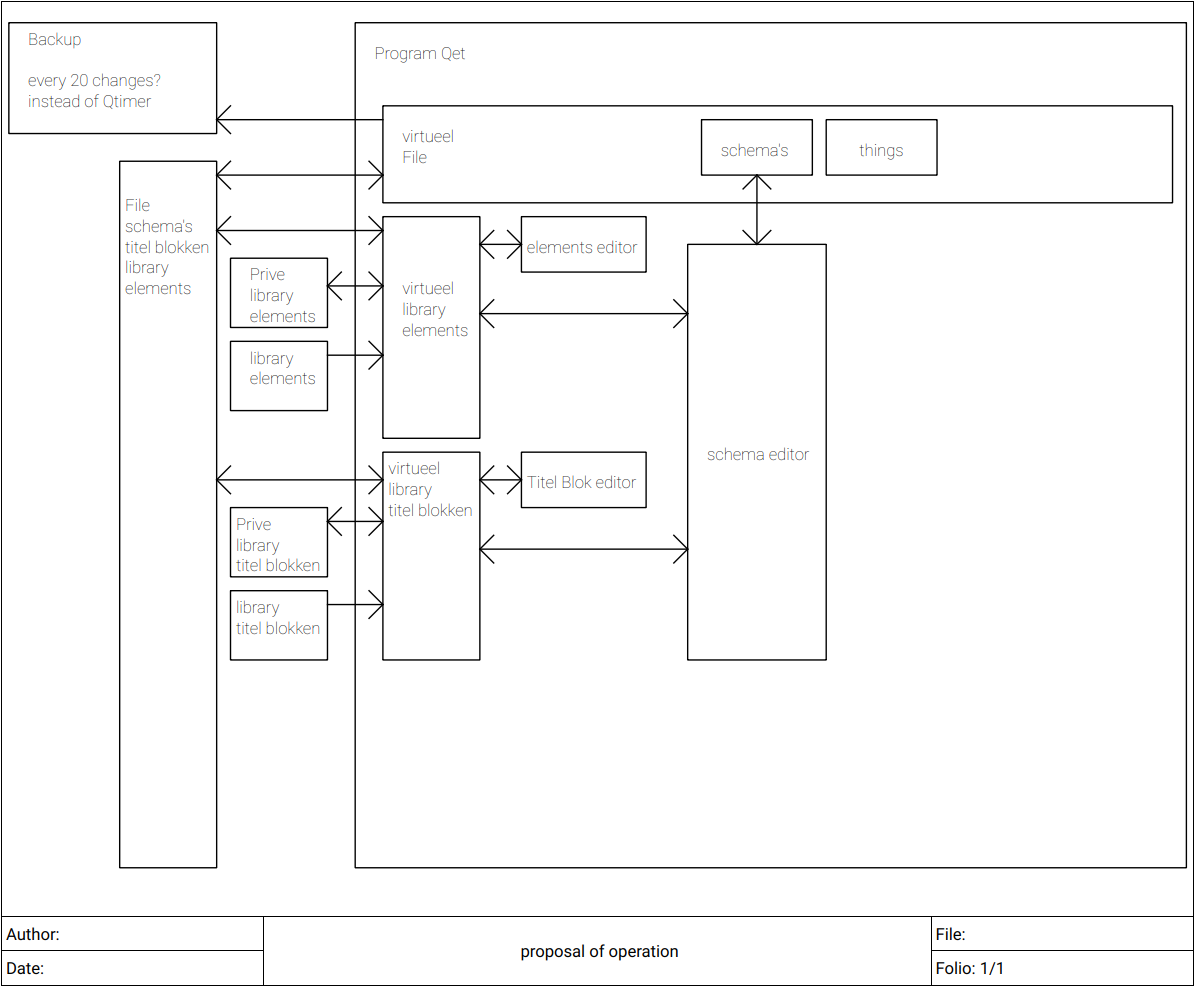

my intention is to make a graphy presentation of the internal functioning of QET

Post's attachments

Screenshot_20201119_210540.png, 59.98 kb, 1196 x 987
Screenshot_20201119_210540.png 59.98 kb, 264 downloads since 2020-11-19

2 Reply by De-Backer (edited by De-Backer 2020-11-20 09:12:13)

Re: proposal of operation

update

Post's attachments

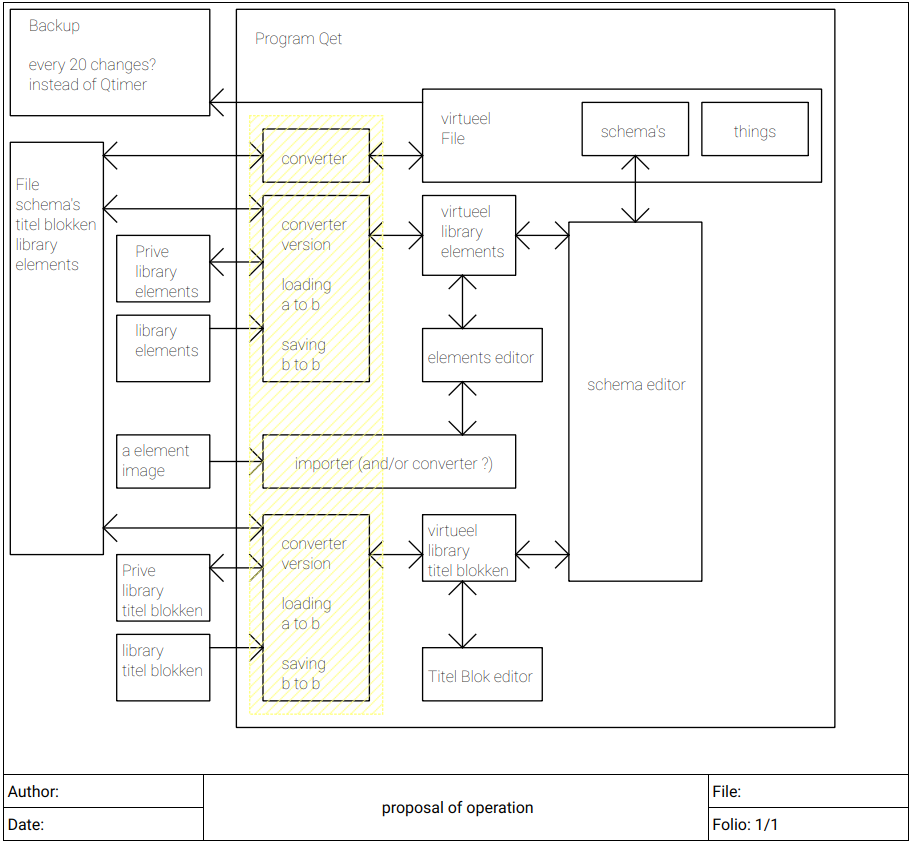

Screenshot_20201120_081107.png, 146.88 kb, 912 x 845
Screenshot_20201120_081107.png 146.88 kb, 291 downloads since 2020-11-20

3 Reply by De-Backer (edited by De-Backer 2020-11-20 14:44:13)

Re: proposal of operation

update

Post's attachments

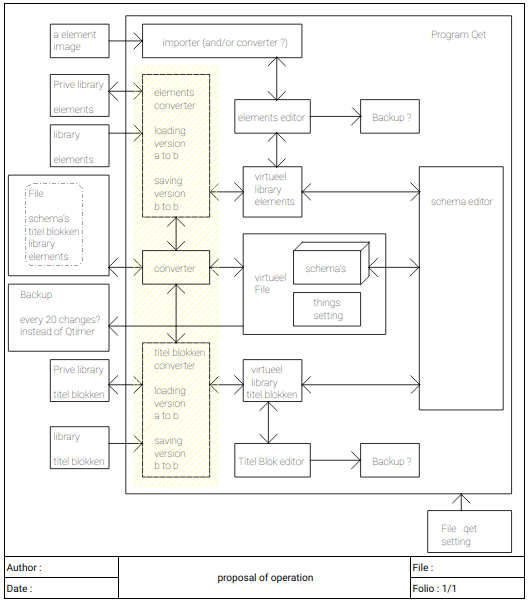

Screenshot_20201120_134317.png, 85.57 kb, 528 x 603
Screenshot_20201120_134317.png 85.57 kb, 290 downloads since 2020-11-20

4 Reply by De-Backer (edited by De-Backer 2020-11-20 22:46:01)

Re: proposal of operation

update

Post's attachments

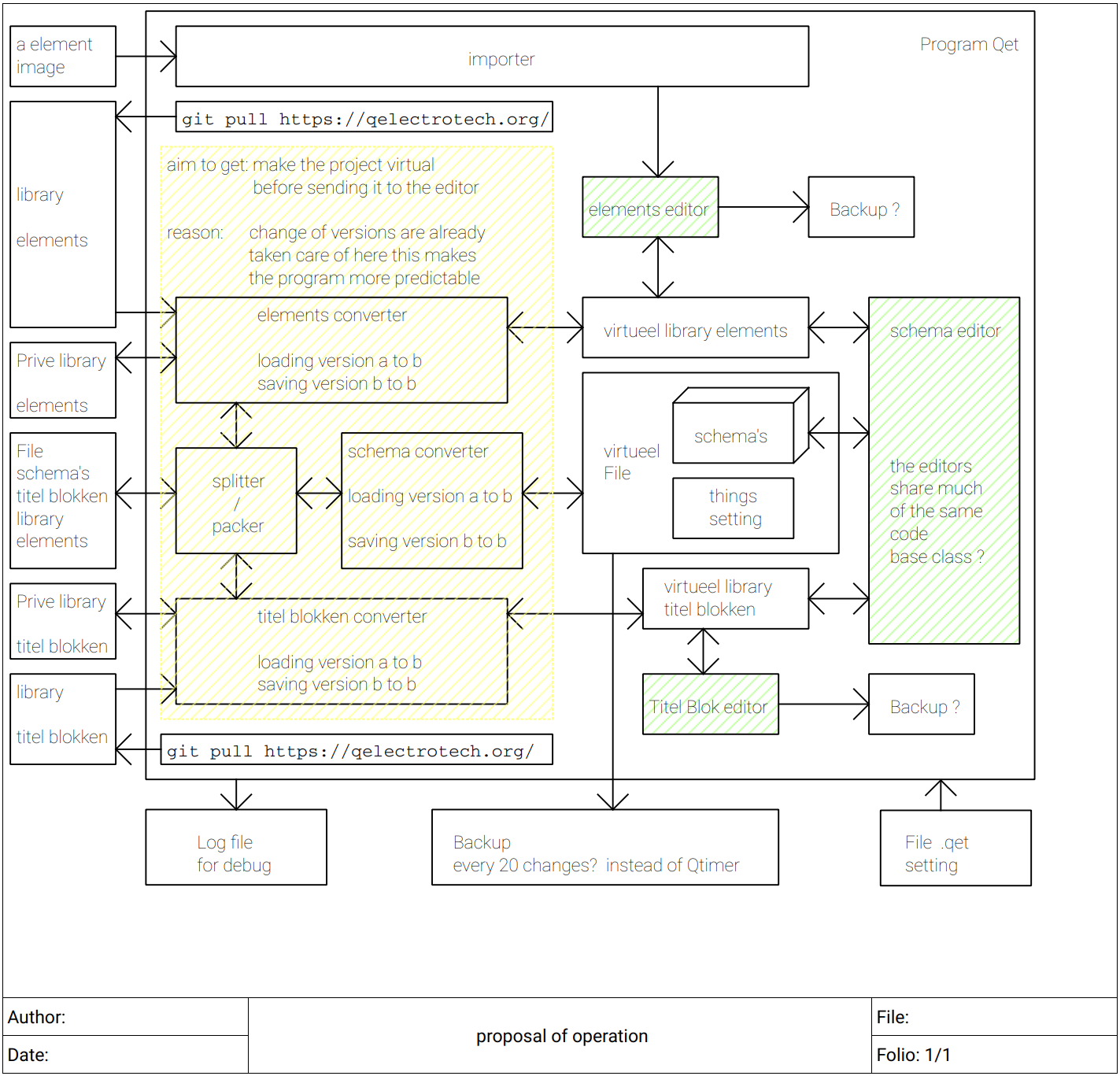

Screenshot_20201120_214532.png, 519.63 kb, 1423 x 1367
Screenshot_20201120_214532.png 519.63 kb, 270 downloads since 2020-11-20

5 Reply by De-Backer (edited by De-Backer 2020-11-20 23:42:46)

Re: proposal of operation

update

Post's attachments

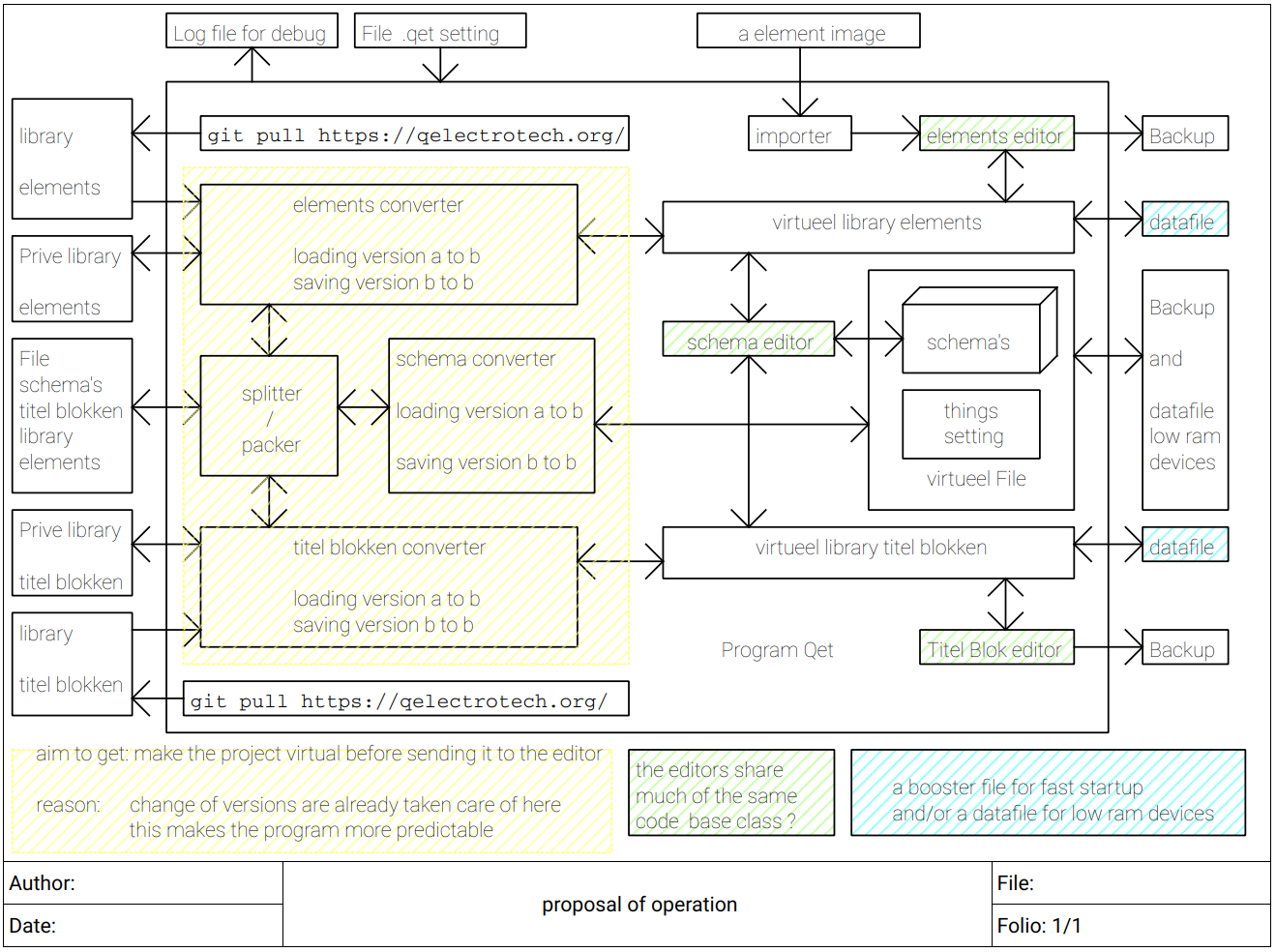

Screenshot_20201120_224146.png, 432.21 kb, 1319 x 984
Screenshot_20201120_224146.png 432.21 kb, 276 downloads since 2020-11-20

6 Reply by De-Backer (edited by De-Backer 2020-11-21 00:54:24)

Re: proposal of operation

update

Post's attachments

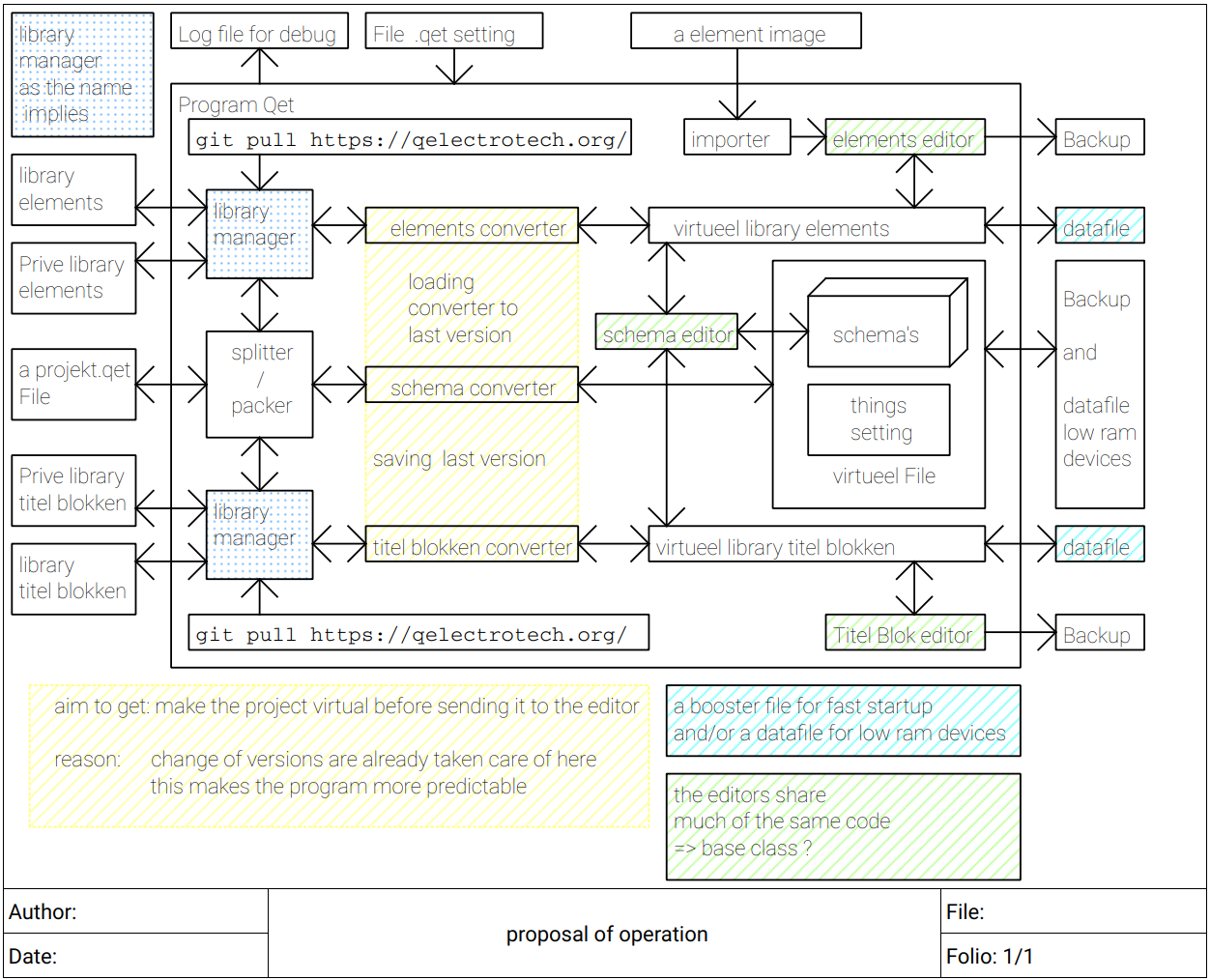

Screenshot_20201120_235353.png, 383.28 kb, 1252 x 1014
Screenshot_20201120_235353.png 383.28 kb, 301 downloads since 2020-11-20

7 Reply by De-Backer (edited by De-Backer 2020-11-21 01:51:12)

Re: proposal of operation

update more proces like

Post's attachments

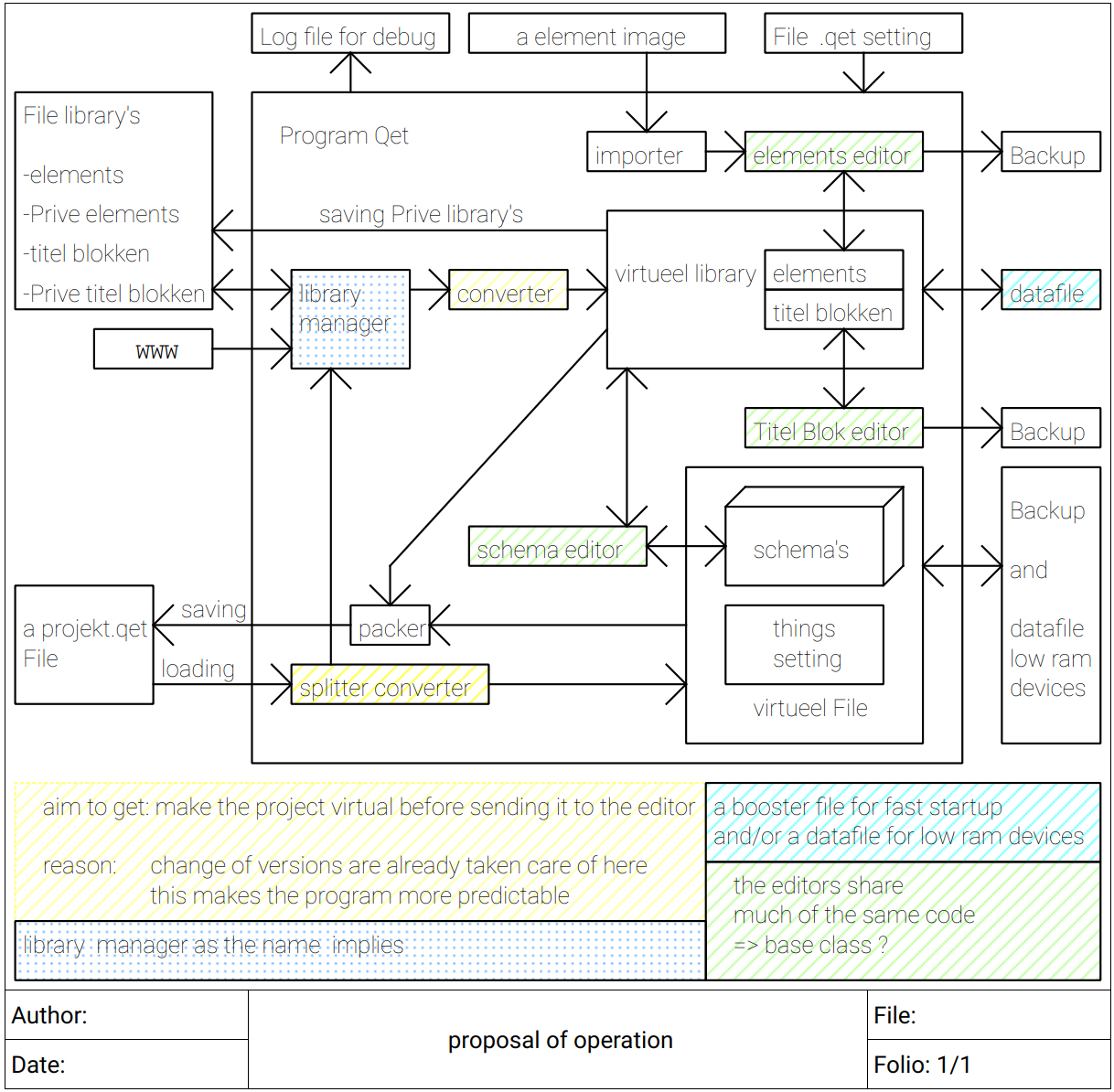

Screenshot_20201121_004903.png, 365.97 kb, 1218 x 1194
Screenshot_20201121_004903.png 365.97 kb, 308 downloads since 2020-11-21

8 Reply by De-Backer (edited by De-Backer 2020-12-02 00:05:45)

Re: proposal of operation

update

Post's attachments

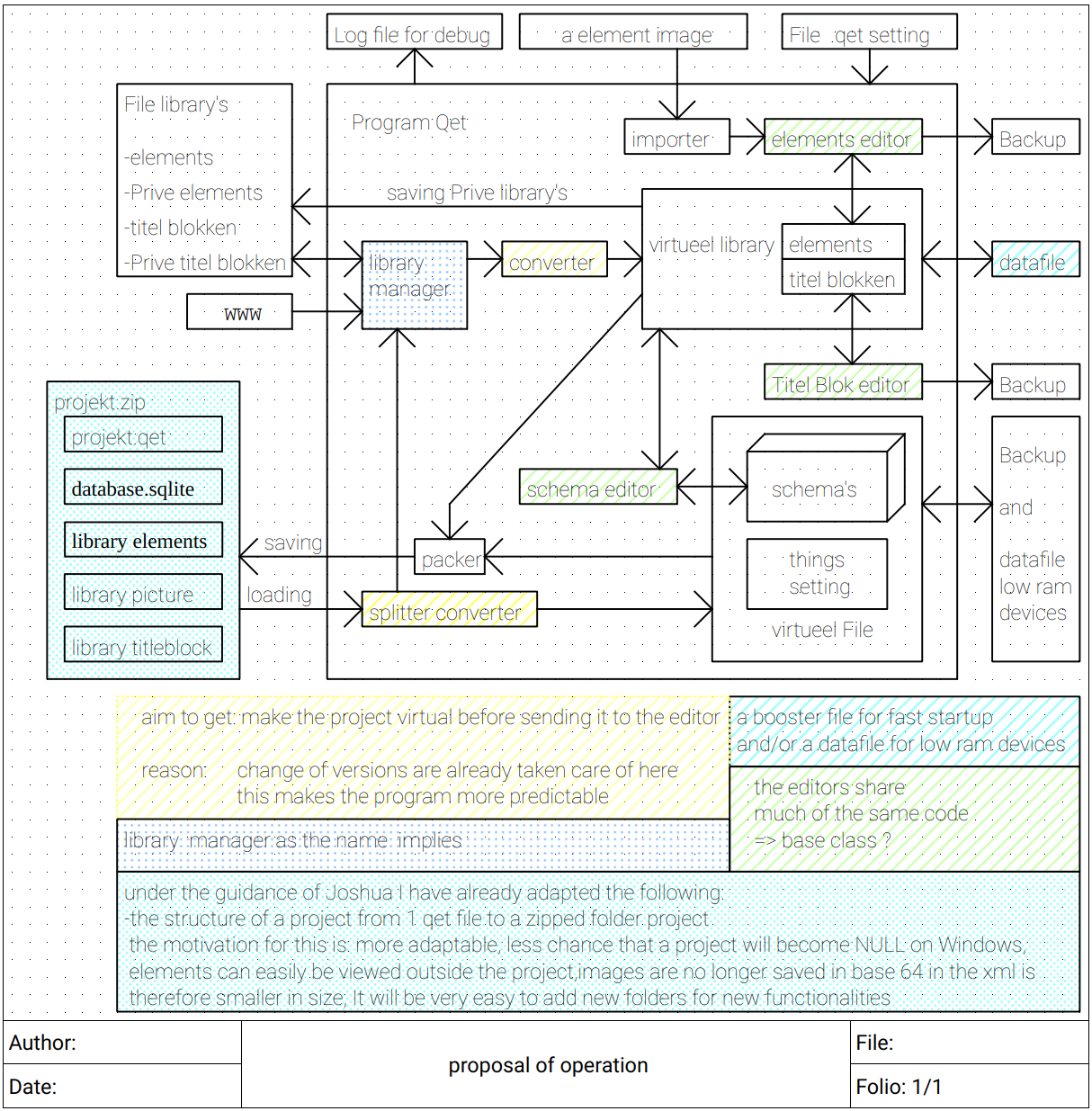

Screenshot_20201201_230420.png, 564.87 kb, 1214 x 1235
Screenshot_20201201_230420.png 564.87 kb, 288 downloads since 2020-12-01

9 Reply by De-Backer (edited by De-Backer 2020-12-02 00:11:51)

Re: proposal of operation

update:
I got info from Joshua for the future of QET and I will adjust this further
- the structure of a project from 1 qet file to a zipped folder project
- ....
I will further adapt the inner workings to allow this new concept of zip file

Datafile (Memory mapped file) QT wikipedia

file

Post's attachments

Attachment icon proposal of operation qet .qet 66.05 kb, 274 downloads since 2020-12-01
