Topic: Reference and Label overlapping

Hi All,

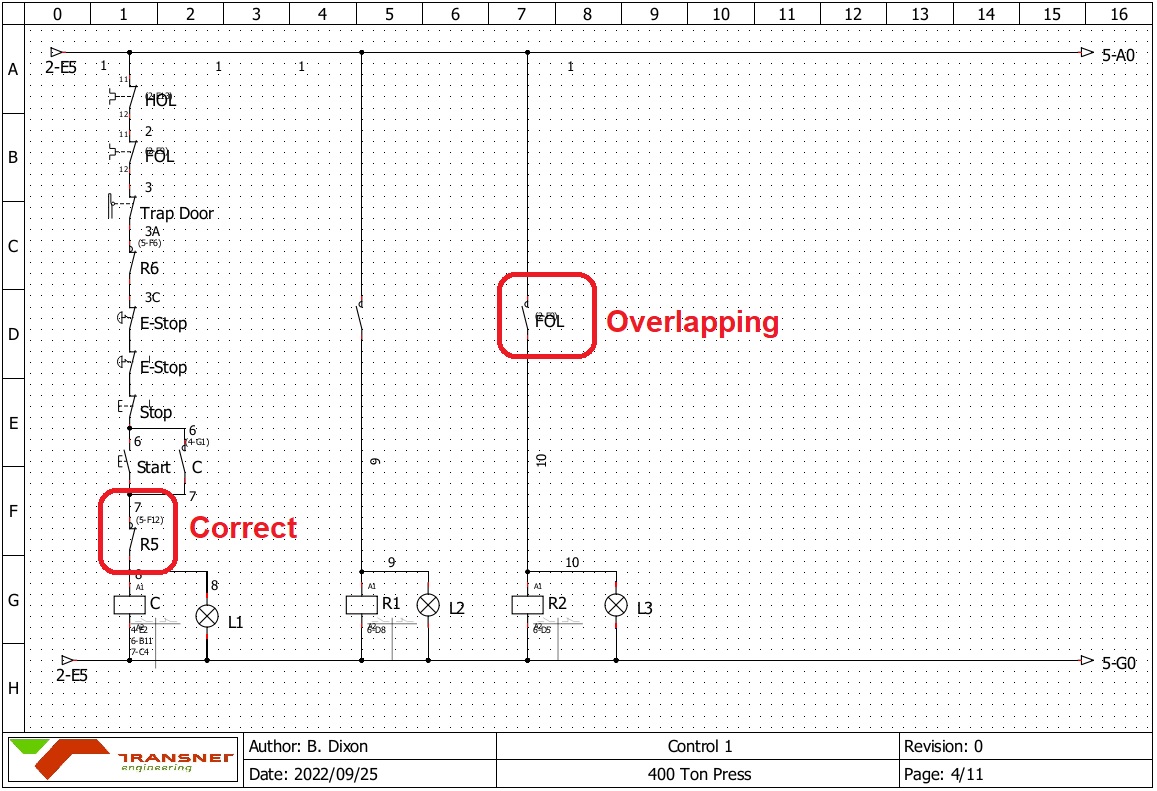

I have an issue that I cannot work out. When using contacts with references. They work fine when the Contact is referenced to a coil. The label will be in the middle right of the Contact and the reference to the coil will be to the top right.

But when I try reference the contact to a overload the Label and reference will overlap each other. If I try move the position of the labe then the reference will follow and still overlap.

Can someone please advise how to sort this out?

Post's attachments

Overlapping Label.jpg, 373.66 kb, 1157 x 791
Overlapping Label.jpg 373.66 kb, 24 downloads since 2022-09-28

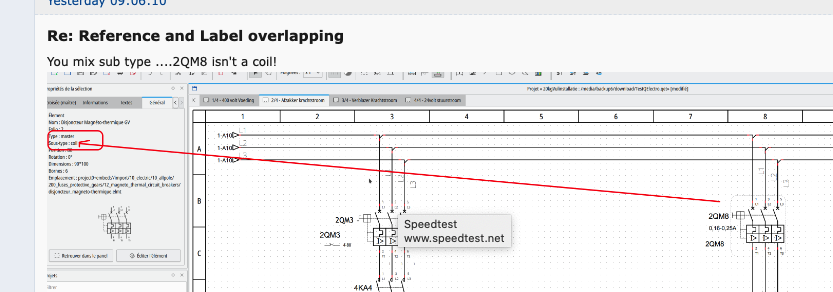

Re: Reference and Label overlapping

https://download.tuxfamily.org/qet/forum_img_2/text_display_protection_fix.png
