Topic: conductors table

Hello!

Is it planned, or perhaps already in the new version, to display a table with conductors, starting point, end point, their designation, function, color, etc.?

2 (edited by b.w.v.leeuwen 2019-05-18 12:05:46)

Re: conductors table

For doing so, the element terminals will need some more functionality, as described in an earlier topic:
https://qelectrotech.org/forum/viewtopic.php?id=1214
It would be good, while considering an update of these terminals, to think about the following:

Each terminal basically has to have the following fields:
1) Element code (inherited from the element). (e.g. 101K1 or 51F2 etc.)
2) Terminal code (exclusive for this junction-point of the element) (e.g. A1 or A2, or 14 etc.)
3) Location (inherited from the element) (e.g. +Field)
4) Installation (Future) (e.g. =IN1)

This will make it possible to easily find the exact connected element and junction-point for each connection. It might open the way to make custom symbols, by placing a shape (assigned as element-box). Herein terminals can be placed, witch automatically inherit the location, installation an element code from the element-box.

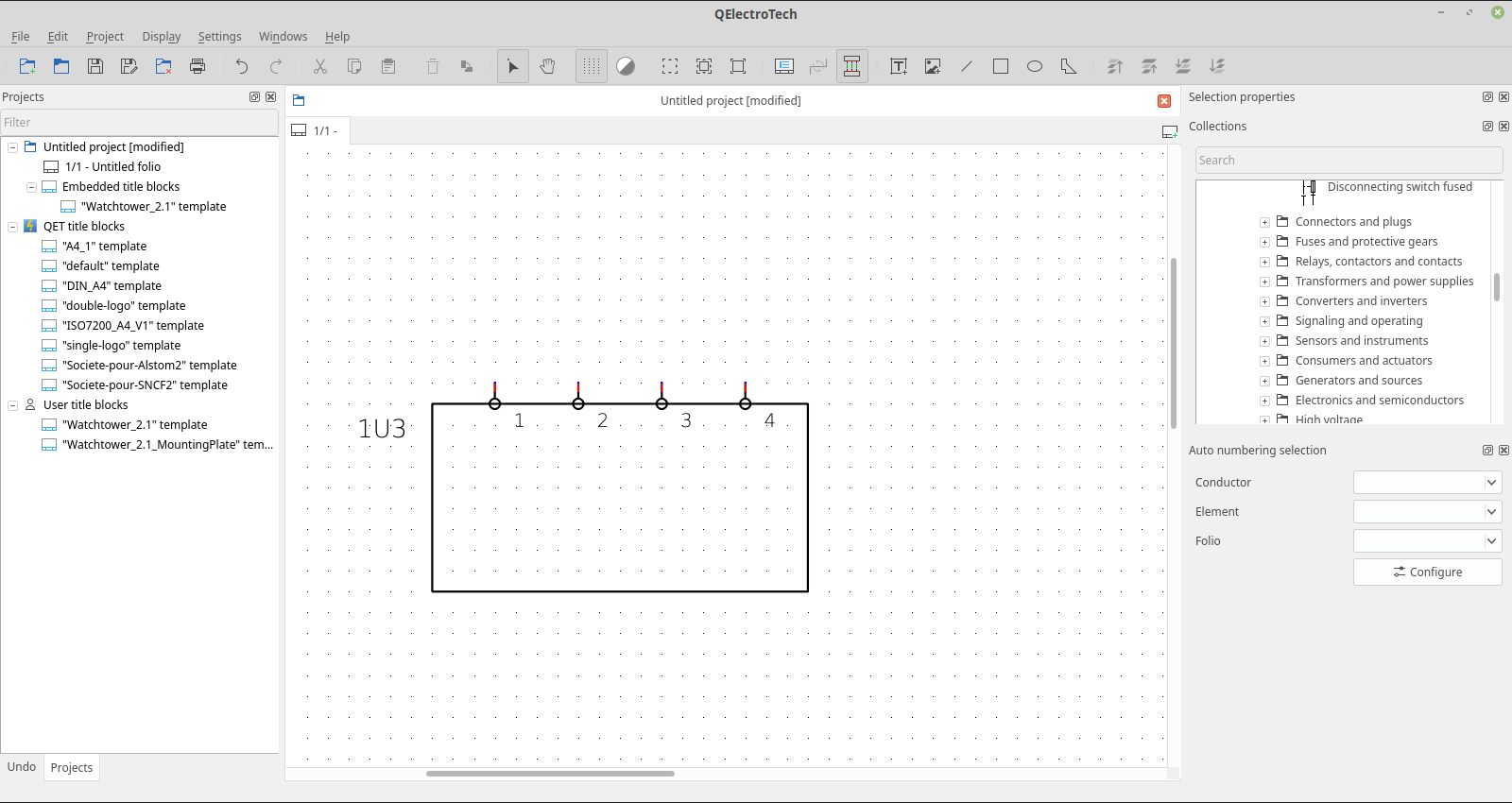

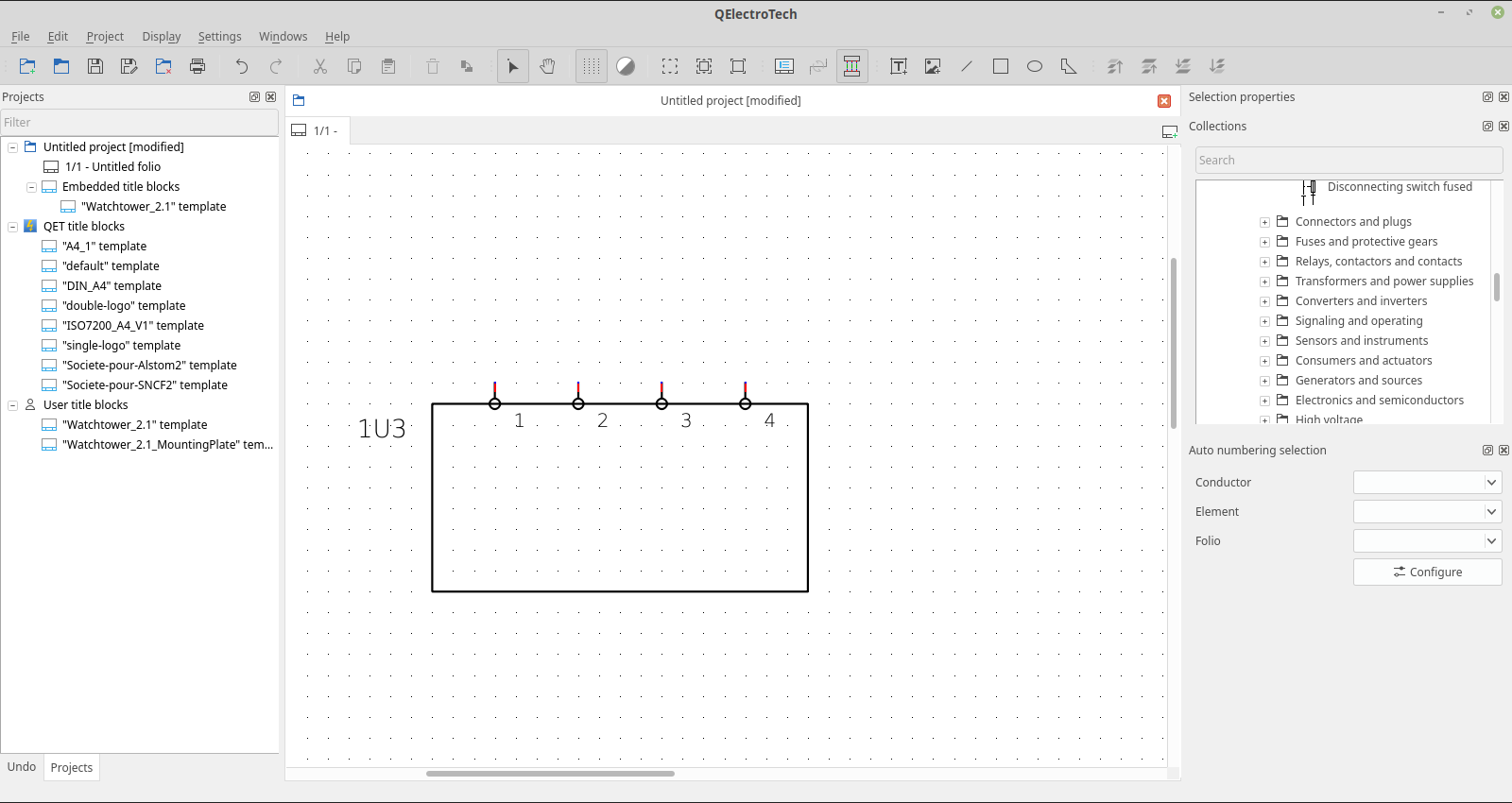

As shown in the attached screenshot, the element-box (1U3) has 4 separate terminals placed on (or possibly within) the rectangle. These will inherit the 1U3 code. They have a junction-connection with the numbers 1 to 4. Location and installation fields are empty in this example, so they will automatically be the same as the standard location and installation of the whole page.

Post's attachments

Attachment icon Screenshot from 2019-05-18 11-46-54.png 114.3 kb, 19 downloads since 2019-05-18

3

Re: conductors table

If I remember correctly, work was started in that direction, but a very very long time ago (Nov 2013), QET was not ready yet and the time eroded the rest.
Cf rev 2609, 2610, 2617, 2618, 2631, 2632
I was able to find the old patchs, If anyone wants to continue this work?

Post's attachments

Attachment icon terminal.zip 8.86 kb, 50 downloads since 2019-05-18
