Topic: How to open png ceations from the gallery?

Hello I'm new to Qelectro tech and find it very easy to create diagrams, but I can't find how to open diagrams in the gallery to modify they and so save time.
Perhaps I'm blind and thick but I've looked in the aide and clicked on all the buttons.
Help Please

Also a search button for the forum would help
A+

Bob

2 Reply by Calypso (edited by Calypso 2018-03-25 22:30:52)

Re: How to open png ceations from the gallery?

Hello Bob,
the items in the QET collection can not be changed. To customize or change them, you can copy them to the user collection. Is this what you mean?

Best regards


Stebo

3 Reply by Nuri (edited by Nuri 2018-03-26 07:13:14)

  • Nuri
  • Nuri
  • German translator
  • Offline

Re: How to open png ceations from the gallery?

hi bobwiles

Post's attachments

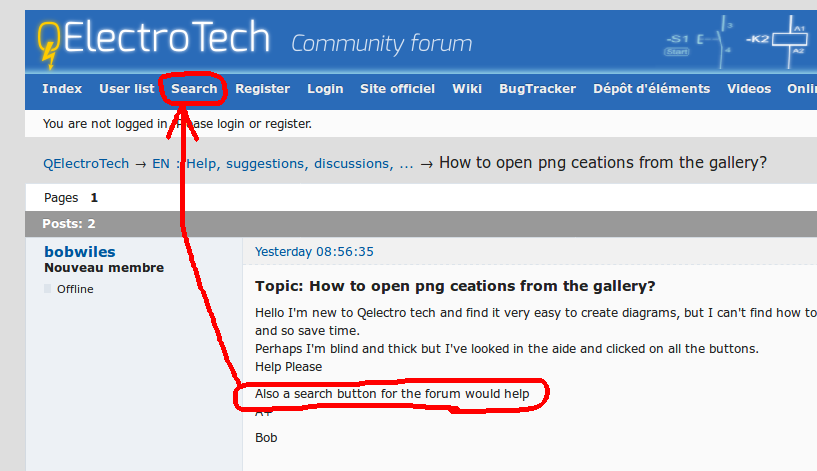

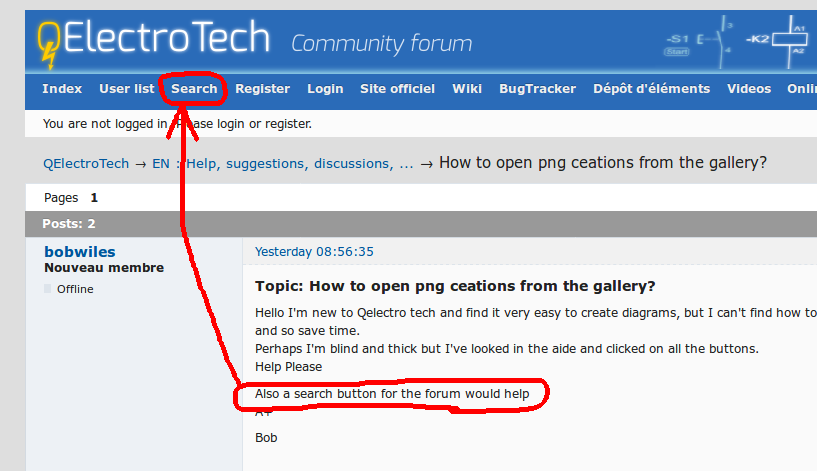

search-forum.png, 56.95 kb, 817 x 471
search-forum.png 56.95 kb, 261 downloads since 2018-03-26

Re: How to open png ceations from the gallery?

Thanks Nuri, So I'm blind and stupid,

To Calypso,; Not exactly - in the gallery, as opposed to the collection, are complete diagrams of whole installations, and the one I wanted to use is a star delta starter combine complete with isolating tranformer and main switch. I wanted to incorporate the starter part of it several times in a control system for a large machine I'm modifying for a client.
Can you or someone else help? The file type is .png (or are they just help items to print out and copy, in which case .pdf would be easier!

Thanks

Bob

  • Nuri
  • Nuri
  • German translator
  • Offline

Re: How to open png ceations from the gallery?

Hi Bob, look in this folder in your PC (I guess you are on Windows):

C:\Program Files\QElectroTech\examples

The example files are pretty old now. I don't know if it really suits to what you're searching for.
