Topic: Minimum text size

Hi guys,

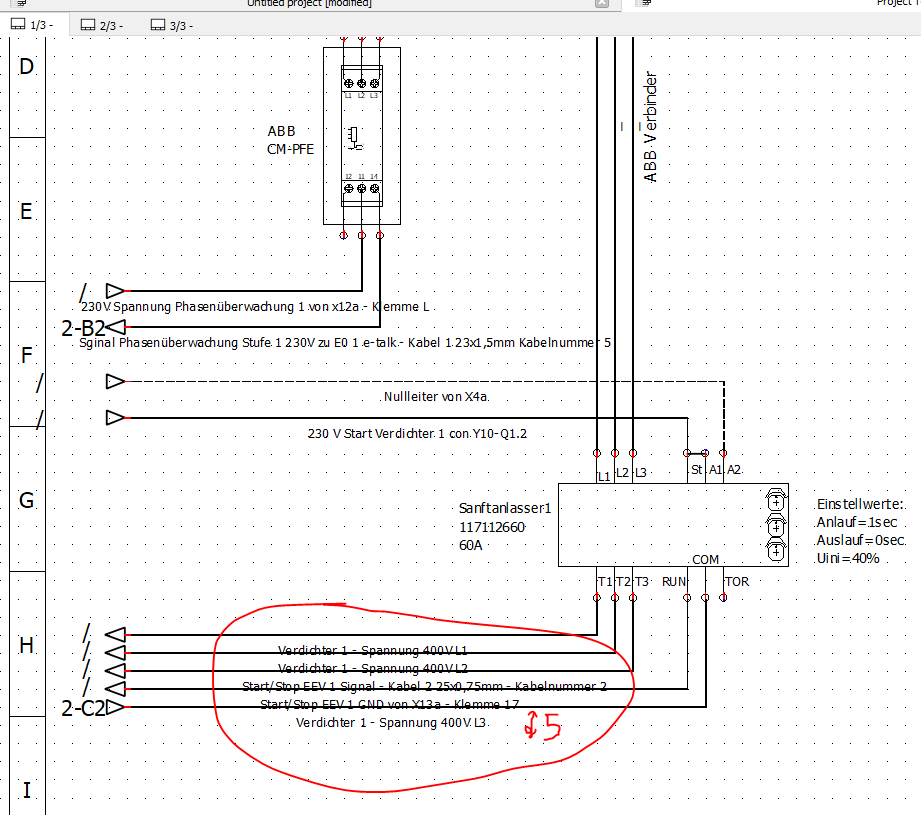

I have this problem when I am drawing my schematic. The minimum text size of the conductor multiline is 5 and it is not suitable for the minimum distance of the conductors. I need to draw schematics with a lot of connections, is it possible to change the minimum text size to 3 or 4?

Post's attachments

Attachment icon Unbenannt.PNG 48.81 kb, 352 downloads since 2017-09-28

2 Reply by scorpio810

  • scorpio810
  • scorpio810
  • QElectroTech Team Manager, Developer, Packager
  • Offline

Re: Minimum text size

Hi,

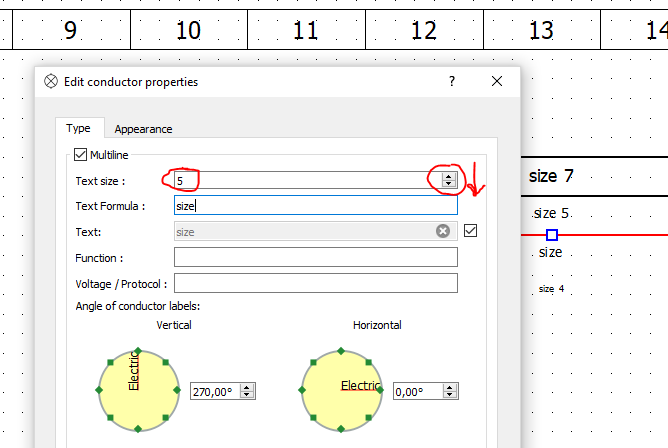

I can reduce the minimum text size, like this ? :
https://download.qelectrotech.org/qet/forum_img/cond-size.png

Post's attachments

Attachment icon project.pdf 18.82 kb, 299 downloads since 2017-09-28

"Le jour où tu découvres le Libre, tu sais que tu ne pourras jamais plus revenir en arrière..."Questions regarding QET belong in this forum and will NOT be answered via PM! – Les questions concernant QET doivent être posées sur ce forum et ne seront pas traitées par MP !

3 Reply by leenk10

  • leenk10
  • Membre
  • Offline

Re: Minimum text size

The point is that I cannot reduce text size from a conductor. If I creat a new text label it is possible, but then it is not linked with the conductor

Post's attachments

Attachment icon Unbenannt2.PNG 20.7 kb, 344 downloads since 2017-09-28

4 Reply by scorpio810

  • scorpio810
  • scorpio810
  • QElectroTech Team Manager, Developer, Packager
  • Offline

Re: Minimum text size

Here fonts rendering in 3, or 4 pt isn't very nice.
I build new packages, you can try it soon.

"Le jour où tu découvres le Libre, tu sais que tu ne pourras jamais plus revenir en arrière..."Questions regarding QET belong in this forum and will NOT be answered via PM! – Les questions concernant QET doivent être posées sur ce forum et ne seront pas traitées par MP !

5 Reply by leenk10

  • leenk10
  • Membre
  • Offline

Re: Minimum text size

Thanks nomicons/wink

6 Reply by scorpio810

  • scorpio810
  • scorpio810
  • QElectroTech Team Manager, Developer, Packager
  • Offline

Re: Minimum text size

0.70-dev+svn5053 build and upload finished.

"Le jour où tu découvres le Libre, tu sais que tu ne pourras jamais plus revenir en arrière..."Questions regarding QET belong in this forum and will NOT be answered via PM! – Les questions concernant QET doivent être posées sur ce forum et ne seront pas traitées par MP !

7 Reply by leenk10

  • leenk10
  • Membre
  • Offline

Re: Minimum text size

It's working, merci
