Topic: Dealing with conductors numbering

Hello,
I have a question to the circuit numbering. Have used it for orientation to join references. Now if I want to connect a link to another page in the version 0.51.r4720 me appears only% sequ_1.
I connect a reference to a conductor on another side of the conductor numbering remain different, is that right?

Best regards

Stebo


Edit

OK
I just found that I need to check the box in the Project Properties under manager so it will also be displayed when connecting references when choosing


Best regards


Stebo

Re: Dealing with conductors numbering

when I draw on each other two symbols, the links are automatically and numbered. If I will connect symbols with a reference with the mouse appears to me no core number, is that correct?

Best regards

Stebo

Edit: How to setup pictures here?

  • scorpio810
  • scorpio810
  • QElectroTech Team Manager, Developer, Packager
  • Offline

Re: Dealing with conductors numbering

Edit: How to setup pictures here?

Edit your previous message, new menu appear "send file".

"Le jour où tu découvres le Libre, tu sais que tu ne pourras jamais plus revenir en arrière..."

4 Reply by Calypso (edited by Calypso 2016-10-01 21:00:05)

Re: Dealing with conductors numbering

Thanks for the answer.
have two screenshots I hope you can see what I mean. My English is not good

Post's attachments

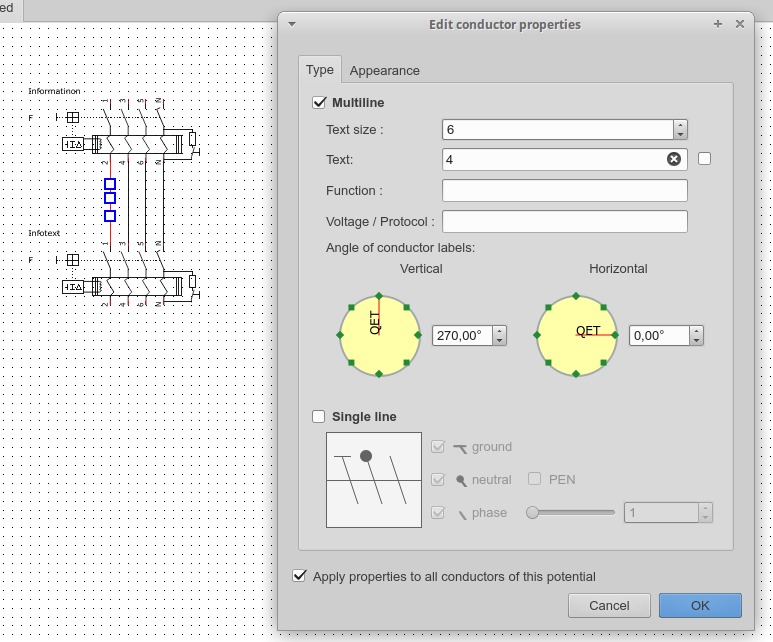

screenshot 1.png, 59.54 kb, 773 x 642
screenshot 1.png 59.54 kb, 404 downloads since 2016-10-01

5 Reply by Calypso (edited by Calypso 2016-10-01 21:03:28)

Re: Dealing with conductors numbering

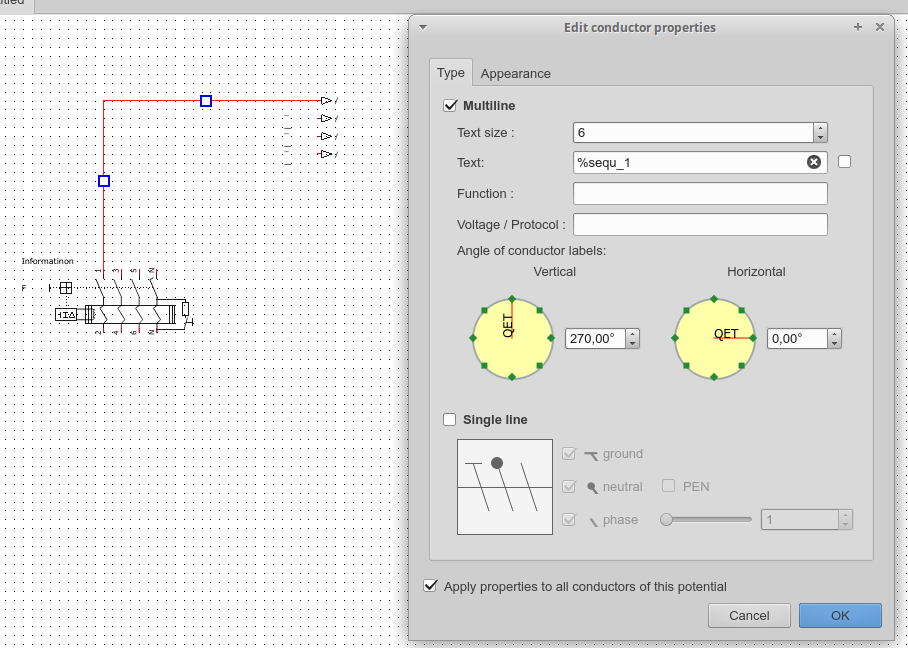

here the second screenshot

Post's attachments

screenshot 2.png, 59.49 kb, 908 x 648
screenshot 2.png 59.49 kb, 391 downloads since 2016-10-01

  • scorpio810
  • scorpio810
  • QElectroTech Team Manager, Developer, Packager
  • Offline

Re: Dealing with conductors numbering

In Autonum selection choose an empty rule.
