Topic: How to define own master slave

Hi!
I want to make a VFD divided into control and power part and set dependency between them (xref).
How can I do it?
I try mark control as coil and power as slave-contact, but after placing it and linking at main diagram, there is no cross near master part.

If I place built-in coil and contacts, cross appears.

Re: How to define own master slave

You mean the table with clickable cross-references?  That is inserted automatically as part of the designator text.  You need to include a dynamic text item with the source "Element information" - "Annotation".

  • jarek
  • Nouveau membre
  • Offline

Re: How to define own master slave

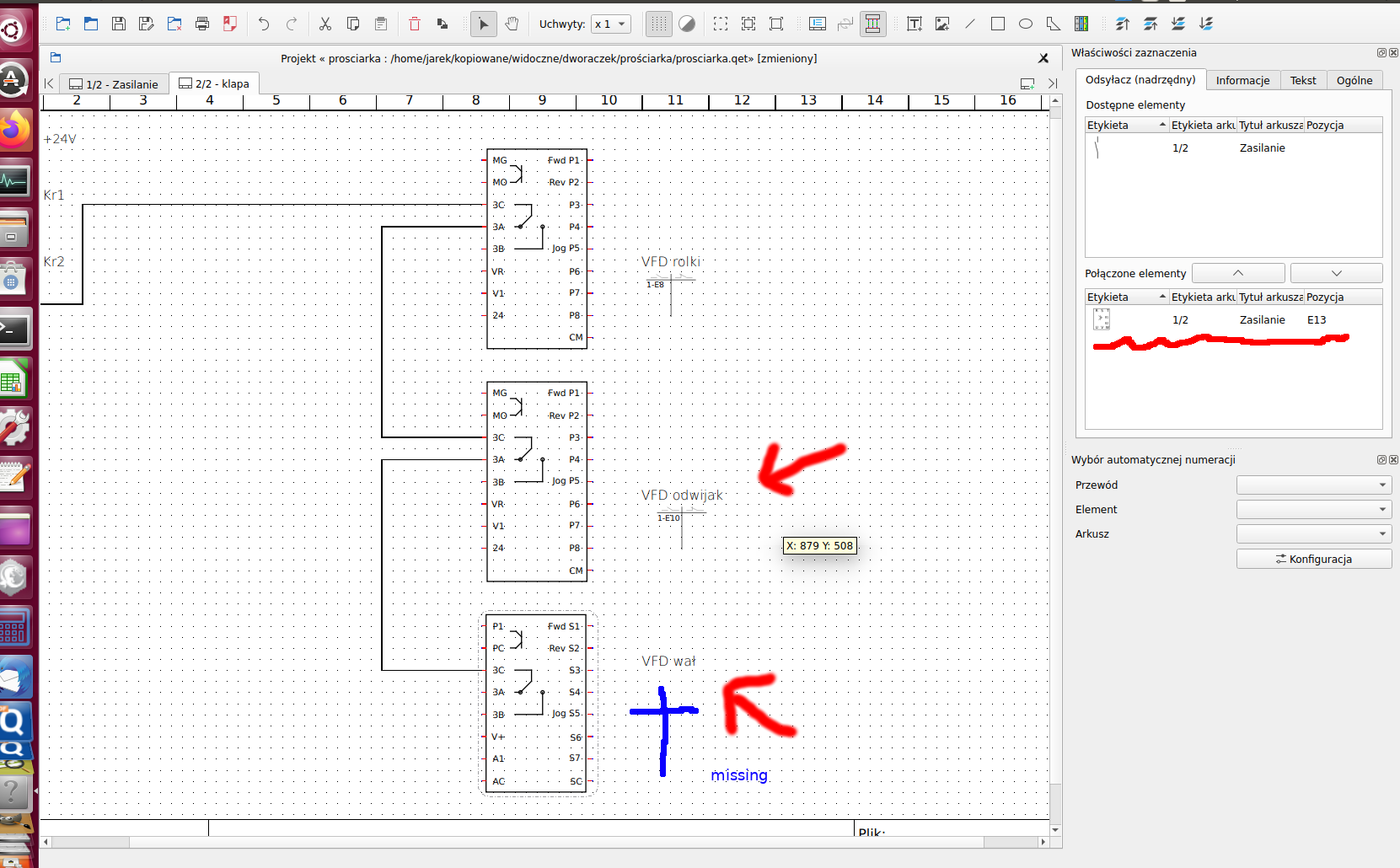

I attached image to clarify but I don't see it in preview,

Post's attachments

Attachment icon quet_wlasne.png 204.11 kb, 7 downloads since 2024-03-10

  • scorpio810
  • scorpio810
  • QElectroTech Team Manager, Developer, Packager
  • Offline

Re: How to define own master slave

@jarek,

your element missing xrefs not be a slave element?
You forgot to change its simple type property to slave element?

"Le jour où tu découvres le Libre, tu sais que tu ne pourras jamais plus revenir en arrière..."

Re: How to define own master slave

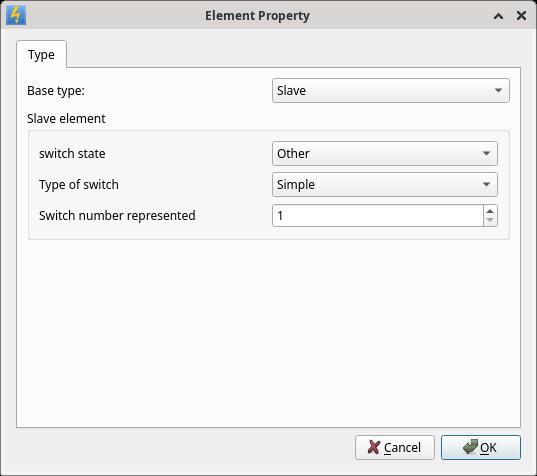

If the slave-element is defined to have "switch state" defined as "other" then there is no reference shown with the master!

Post's attachments

Bildschirmfoto_Element-Property.jpg, 23 kb, 537 x 476
Bildschirmfoto_Element-Property.jpg 23 kb, 14 downloads since 2024-03-11

Re: How to define own master slave

Consider integrating a dynamic text item within the source "Element information" - "Annotation" to ensure the insertion of the table with clickable cross-references. Ensure that the properties of the control and power parts are appropriately configured, including setting the simple type property to slave element for the power part.
