Topic: Jump Element

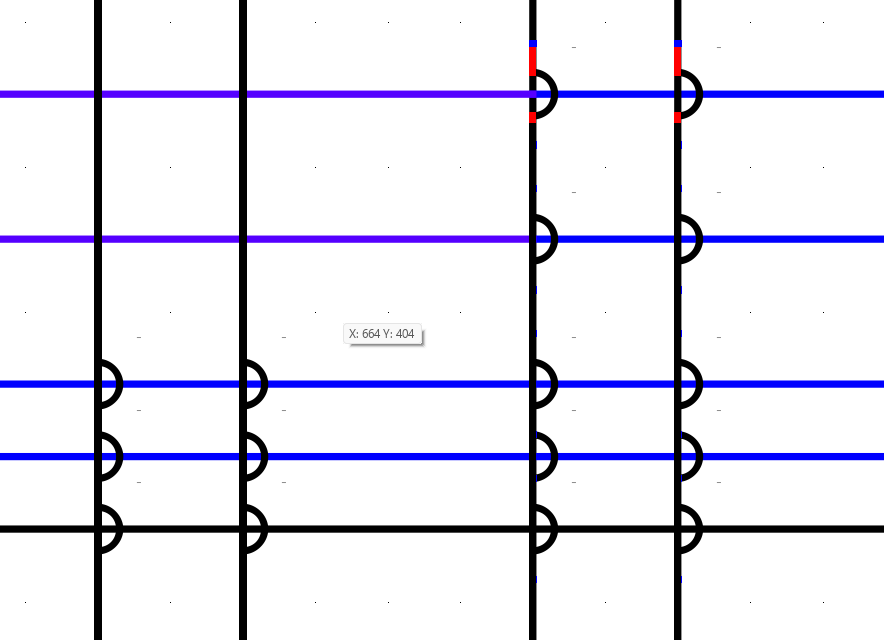

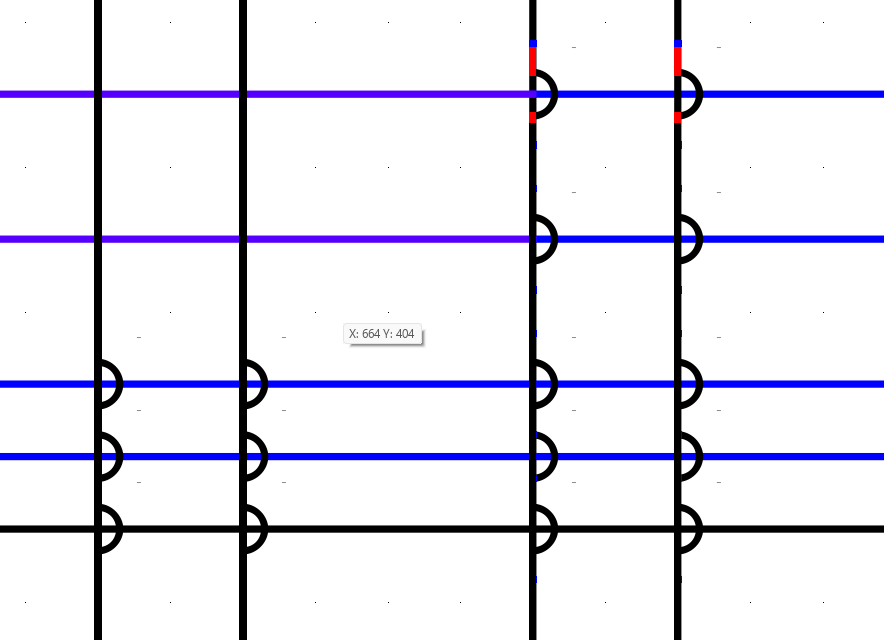

Hello, I seem to be having a problem with how the jump element works. When I add the jump element, all the lines are crossed instead of having the space between the arc, am I missing something?

Post's attachments

jump_problem.png, 21.79 kb, 884 x 640
jump_problem.png 21.79 kb, 41 downloads since 2023-07-25

Re: Jump Element

I believe the problem is that I can't seem to connect a regular line to the jump connection

  • scorpio810
  • scorpio810
  • QElectroTech Team Manager, Developer, Packager
  • Offline

Re: Jump Element

Hello,

first drag your jump and if autoconnect is enabled the second jump vertically in the same alignment is connected by conductor.

"Le jour où tu découvres le Libre, tu sais que tu ne pourras jamais plus revenir en arrière..."

Re: Jump Element

That worked, thank you.

  • scorpio810
  • scorpio810
  • QElectroTech Team Manager, Developer, Packager
  • Offline

Re: Jump Element

Great ! ;-)

"Le jour où tu découvres le Libre, tu sais que tu ne pourras jamais plus revenir en arrière..."
