Topic: No adding of components after update

Hello,
After today's update, I cannot add any parts to the drawing (new project). If I want to insert a component in an existing project, it doesn't work either and the existing components in the drawing behave strangely (delayed)

Best regards

Stebo

2 Reply by Max

  • Max
  • Membre
  • Offline

Re: No adding of components after update

Hello,
i have same problem after update.

QElectroTech V 0.80-DEV+f21cdb404c957a06d79751d3
Compilation : GCC 8.3.0
Built with Qt 5.11.3 - Date : Sep 21 2020 : 05:33:56
Run with Qt 5.11.3 using 16 thread(s)
CPU : model name : AMD Ryzen 7 3700X 8-Core Processor
RAM Total : 64340 MB
RAM Available : 60606 MB
GPU : Advanced Micro Devices, Inc. [AMD/ATI] Hawaii PRO [Radeon R9 290/390] (rev 80)
GPU RAM : @ToDo
OS : linux - x86_64 - Version : Debian GNU/Linux 10 (buster) - Kernel : 5.8.0-1-amd64
*** Qt screens ***
( 1 : 1920 x 1200 )
( 2 : 1920 x 1200 )
( 3 : 1920 x 1200 )

Greetings
Max

3 Reply by De-Backer (edited by De-Backer 2020-09-22 20:22:27)

  • De-Backer
  • De-Backer
  • QElectroTech Team
  • Offline

Re: No adding of components after update

Hello,
git SHA1 id

f21cdb4040940c02b4de9d201890db55de14e6b4

i have made some changes to QRegExp.
and probably it went wrong there...

update at git SHA1 id

0a46b83dca7c4f26064a9b0101b9eeeddddaf4e3

Post's attachments

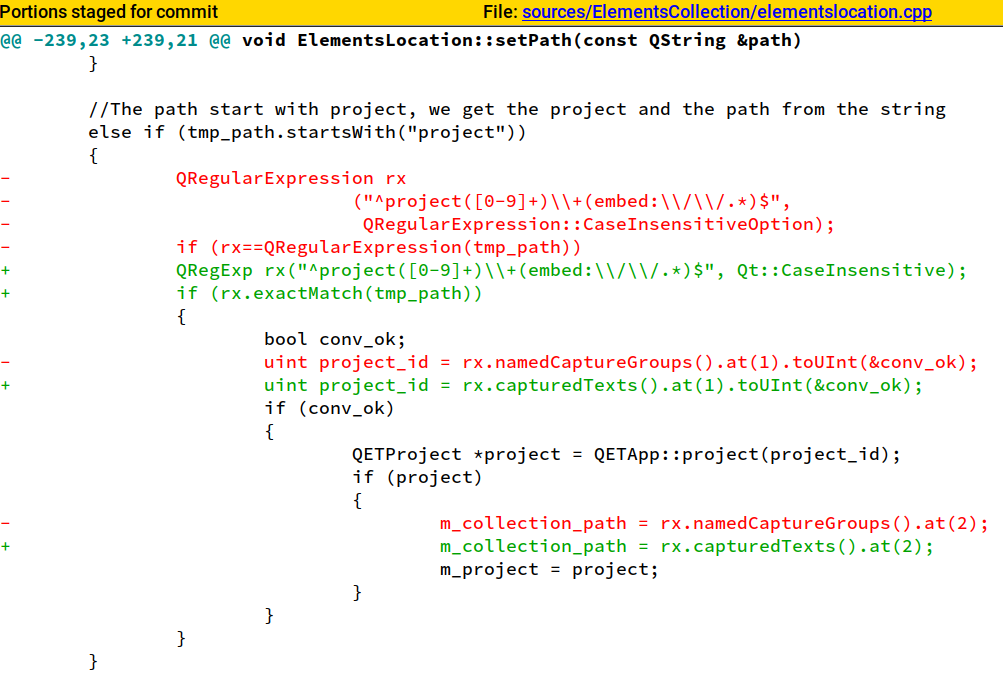

Attachment icon Screenshot_20200922_202142.png 89.5 kb, 216 downloads since 2020-09-22

4 Reply by Joshua (edited by Joshua 2020-09-22 20:38:05)

  • Joshua
  • Joshua
  • QElectroTech Team Developer
  • Offline

Re: No adding of components after update

De-Backer
I think it's a little problem.
In all your comit change the code who look like this :

QRegularExpression regexp("^.*([^/]+)\\.elmt$");
    if (regexp==QRegularExpression(m_collection_path)) {

by

    QRegularExpression regexp("^.*([^/]+)\\.elmt$");
    if (regexp.match(m_collection_path).hasMatch()) {

I think they will fix the bug for the element, and probably all other class where the regular expression was modified is bugged.
Regard joshua.

Développeur QElectroTech

5 Reply by De-Backer

  • De-Backer
  • De-Backer
  • QElectroTech Team
  • Offline

Re: No adding of components after update

Debug: 1 QRegularExpression("^project([0-9]+)\\+(embed:\\/\\/.*)$", QRegularExpression::PatternOptions("CaseInsensitiveOption")) "project0+embed://import/new_element.elmt" (../qet/sources/ElementsCollection/elementslocation.cpp:247, void ElementsLocation::setPath(const QString&))
Debug: B false (../qet/sources/ElementsCollection/elementslocation.cpp:248, void ElementsLocation::setPath(const QString&))

in

QRegularExpression rx
                ("^project([0-9]+)\\+(embed:\\/\\/.*)$",
                 QRegularExpression::CaseInsensitiveOption);
        qDebug()<<"1"<<rx<<tmp_path;
        qDebug()<<"B"<<rx.match(tmp_path).hasPartialMatch();
        if (rx.match(tmp_path).hasPartialMatch())

=>

"^project([0-9]+)\\+(embed:\\/\\/.*)$"
"project0+embed://import/new_element.elmt"

6 Reply by De-Backer (edited by De-Backer 2020-09-22 23:01:16)

  • De-Backer
  • De-Backer
  • QElectroTech Team
  • Offline

Re: No adding of components after update

Joshua wrote:

I think they will fix the bug for the element, and probably all other class where the regular expression was modified is bugged.
Regard joshua.

yes I will have to review everything.. of QRegExp

Revert for now.

ps test

rx.match(tmp_path).hasMatch()

fails

info QRegExp
https://doc.qt.io/qt-5/qregularexpressi … t-matching

QRegularExpression re("^project(?<project_id>[0-9]+)");
        QRegularExpressionMatch match = re.match(tmp_path);
        qDebug()<< match.hasMatch()<<match.hasPartialMatch();
        if (match.hasMatch()) {
            qDebug()<< match.captured("project_id");
        }
Debug: true false
Debug: "0"

now this:

\\+(embed:\\/\\/.*)$

https://perldoc.perl.org/perlre.html
test code:

QRegularExpression re("^project(?<project_id>[0-9]+)");
        if(re.isValid()){
            QRegularExpressionMatch match = re.match(tmp_path);
            qDebug()<< match.hasMatch()<<match.hasPartialMatch();
            if (match.hasMatch()) {
                qDebug()<< match.captured("project_id");
            }
        } else {
            qDebug()<< re.errorString()<<re.patternErrorOffset();
        }

7 Reply by scorpio810

  • scorpio810
  • scorpio810
  • QElectroTech Team Manager, Developer, Packager
  • Offline

Re: No adding of components after update

David sent me this:

sur le build 6763 , lorsque l'on intégre un élément qui a de la couleur
sur un folio il perd ses couleurs.

"Le jour où tu découvres le Libre, tu sais que tu ne pourras jamais plus revenir en arrière..."Questions regarding QET belong in this forum and will NOT be answered via PM! – Les questions concernant QET doivent être posées sur ce forum et ne seront pas traitées par MP !

8 Reply by De-Backer

  • De-Backer
  • De-Backer
  • QElectroTech Team
  • Offline

Re: No adding of components after update

pattern is:

^project(?<project_id>[0-9])\+(?<collection_path>embed://*.*)$

I look for the other mistakes

Post's attachments

Attachment icon Screenshot_20200923_181119.png 46.21 kb, 237 downloads since 2020-09-23

9 Reply by De-Backer (edited by De-Backer 2020-09-23 23:12:37)

  • De-Backer
  • De-Backer
  • QElectroTech Team
  • Offline

Re: No adding of components after update

Joshua wrote:

De-Backer
I think it's a little problem.
In all your comit change the code who look like this :

QRegularExpression regexp("^.*([^/]+)\\.elmt$");
    if (regexp==QRegularExpression(m_collection_path)) {

by

    QRegularExpression regexp("^.*([^/]+)\\.elmt$");
    if (regexp.match(m_collection_path).hasMatch()) {

I think they will fix the bug for the element, and probably all other class where the regular expression was modified is bugged.
Regard joshua.

ok i think i'm done
https://git.tuxfamily.org/qet/qet.git/c … 4c633d1701

edit
not nomicons/unsure

23:06:15.946 Debug: no Match "line-style:normal" (../qet/sources/factory/elementpicturefactory.cpp:584, void ElementPictureFactory::setPainterStyle(const QDomElement&, QPainter&) const)
23:06:15.946 Debug: no Match "line-weight:normal" (../qet/sources/factory/elementpicturefactory.cpp:584, void ElementPictureFactory::setPainterStyle(const QDomElement&, QPainter&) const)
23:06:15.946 Debug: no Match "filling:none" (../qet/sources/factory/elementpicturefactory.cpp:584, void ElementPictureFactory::setPainterStyle(const QDomElement&, QPainter&) const)
23:06:15.946 Debug: no Match "color:red" (../qet/sources/factory/elementpicturefactory.cpp:584, void ElementPictureFactory::setPainterStyle(const QDomElement&, QPainter&) const)

edit
ok
https://git.tuxfamily.org/qet/qet.git/c … 6a510617d5
night.

10 Reply by Max

  • Max
  • Membre
  • Offline

Re: No adding of components after update

Thanks, it works now.

11 Reply by De-Backer

  • De-Backer
  • De-Backer
  • QElectroTech Team
  • Offline

Re: No adding of components after update

Max wrote:

Thanks, it works now.

Thank you for providing the git ID (from the bug version), and testing the Dev version.
Feedback is important to us (developers).
