Topic: terminal names

can we finish this?
-what was missing
-what is wrong
-what do we want to achieve
-


https://qelectrotech.org/forum/viewtopi … 851#p12851

De-Backer wrote:

https://github.com/De-Backer/qelectrote … minal_name
an example:
https://youtu.be/Ae6nfh876gM

Is this where we want to go?

please give your input developers and users.

2 Reply by De-Backer (edited by De-Backer 2020-08-22 06:42:38)

Re: terminal names

For QElectroTech:
- Pin name or number    Yes
- Pin name and number  NO

- is Pin text a PartDynamicTextField?

/**
    @brief The PartDynamicTextField class
    This class represents an editable dynamic text field
    which may be used to compose the
    drawing of an electrical element within the element editor.
    The field will remain editable once the element is added onto
    a diagram
*/

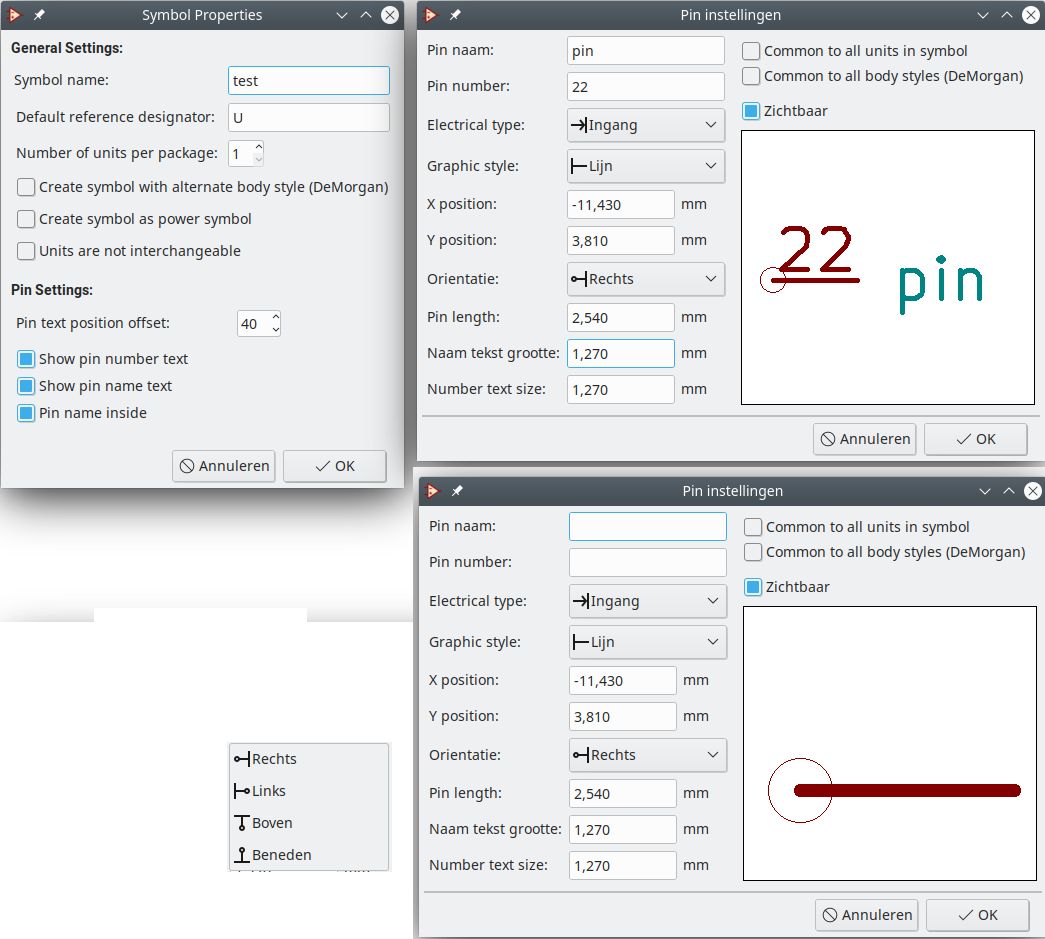

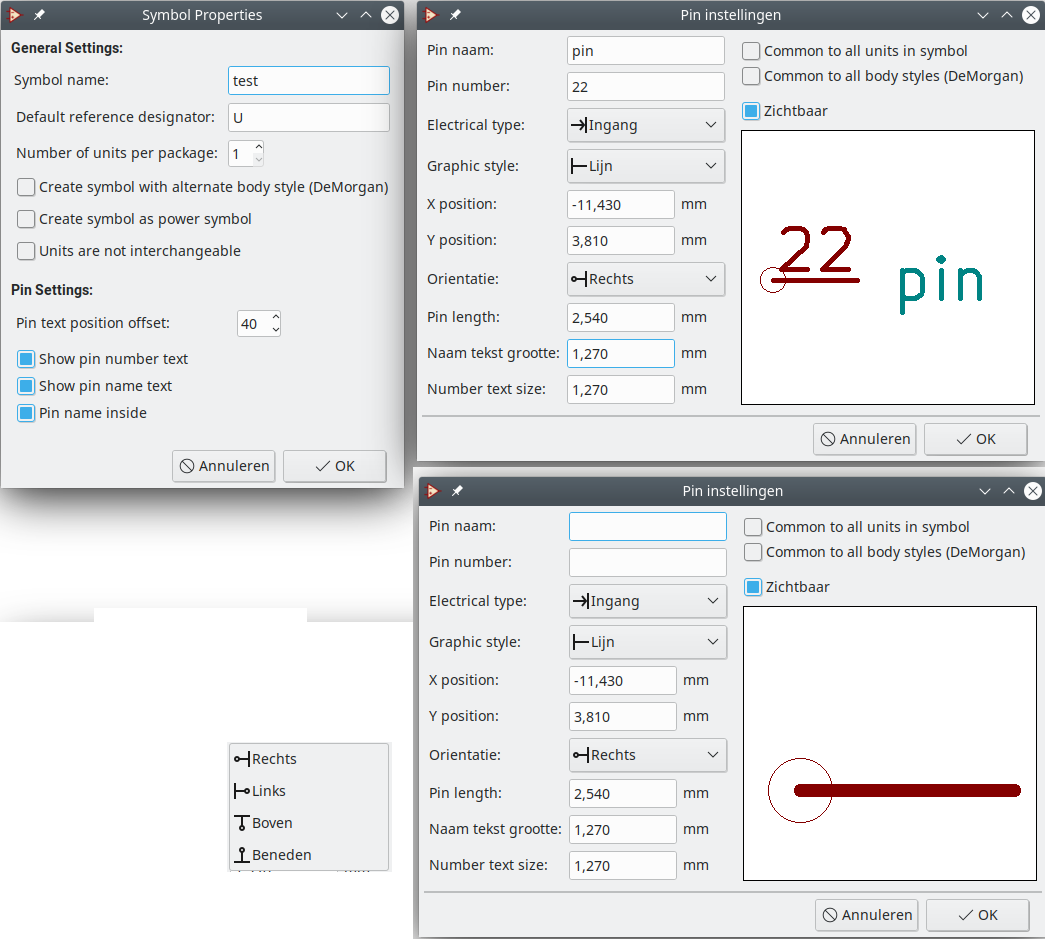

for KiCAD: (note is for pcb's)

Post's attachments

temp.png, 135.56 kb, 1045 x 939
temp.png 135.56 kb, 263 downloads since 2020-08-21
