Topic: Wire numbering

Hello, all! I'm a new user of QElectroTech and I have a question about wire numbering. I need such wire numbering as: Plant.number (the formula is %M.%sequ_1), but "Plant" is always empty... So, number look like ".2", for example. But I need "KM1.2". Can anybody help me, please?

  • bat
  • bat
  • Membre
  • Offline

Re: Wire numbering

Hi mate, you may need to create a custom format that includes both "plant" and the sequential number. Make sure to watch the naming configuration, there may be a mistake. Double check your data input it may not be assigned properly.

3 Reply by rvc100 (edited by rvc100 2023-08-25 15:15:52)

  • rvc100
  • Nouveau membre
  • Offline

Re: Wire numbering

Hello! I understand my bug. It works, but not way I wanted. I wants wire number consists of name of element and wire number. For example, wires from contactor KM1 are KM1.1; KM1.2; KM1.3. In this way I always can understand what is the wire without scheme. But autonumbering like this is impossible unfortunately.

And now I have one more question. Does the cable function work or not? I want to join several wires into one cable, as in the video from this forum (QET version is 0.5 or 0.6), but I can't do it.

And one more problem... I cannot start qet_tb_generator... I setup it like in manual, but it starts with error and doesn't see any terminal. May be it because of Win10x64?

Thanks for help!

Post's attachments

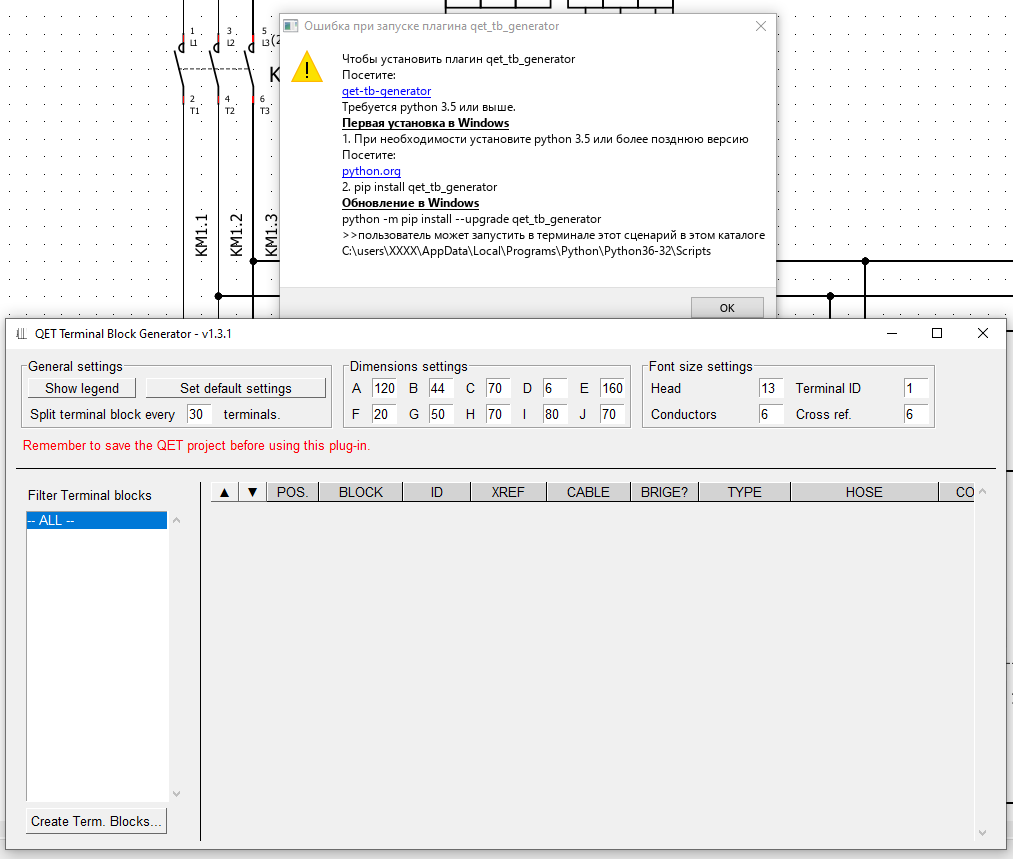

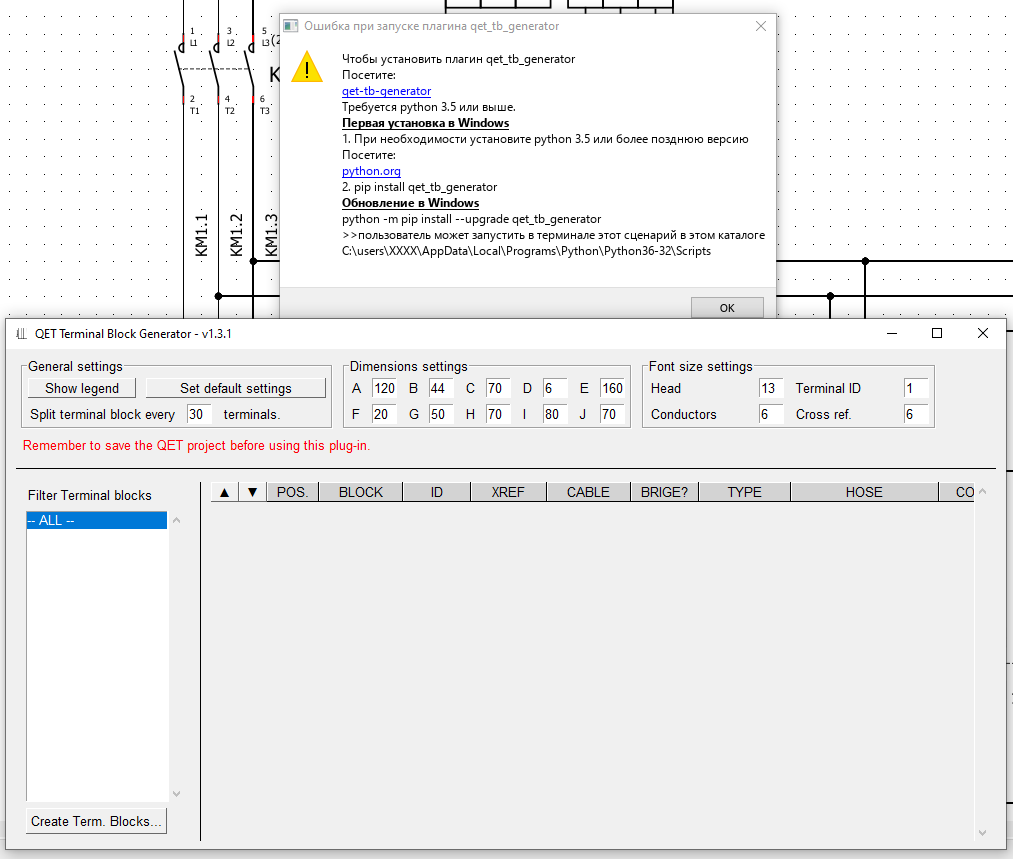

Снимок экрана 2023-08-25 161413.png, 58.74 kb, 1013 x 859
Снимок экрана 2023-08-25 161413.png 58.74 kb, 41 downloads since 2023-08-25

  • scorpio810
  • scorpio810
  • QElectroTech Team Manager, Developer, Packager
  • Offline

Re: Wire numbering

Cable function is not ready yet.

"Le jour où tu découvres le Libre, tu sais que tu ne pourras jamais plus revenir en arrière..."
  • rvc100
  • Nouveau membre
  • Offline

Re: Wire numbering

scorpio810 wrote:

Cable function is not ready yet.

Thanks! And can you help me with qet_tb_generator, please?

  • scorpio810
  • scorpio810
  • QElectroTech Team Manager, Developer, Packager
  • Offline

Re: Wire numbering

See, here:
https://qelectrotech.org/forum/viewtopi … 079#p17079

"Le jour où tu découvres le Libre, tu sais que tu ne pourras jamais plus revenir en arrière..."

7 Reply by rvc100 (edited by rvc100 2023-08-25 19:52:40)

  • rvc100
  • Nouveau membre
  • Offline

Re: Wire numbering

scorpio810 wrote:

See, here:
https://qelectrotech.org/forum/viewtopi … 079#p17079

Great thanks for your help!!! :thumbsup:
