Greetings.
I didn’t notice it before, but now I noticed that the design became a little not convenient for the laptop. When leaving for objects it is impossible to take a good monitor. On the laptop, the resolution is 1368 * 768.https://photos.google.com/share/AF1QipN … BNZl9jVkpR
The window of the properties of the conductor does not exactly fit in height.
Is this sometimes a solution for you?
for the developer:
this is a quick and not thoughtful change please don't consider this ok.
The-window-of-the-properties-of-the-conductor-does.zip 93.15 kb, 176 downloads since 2020-06-18
I think such a solution would be ideal. Only I do not know how to run it with the program.
Thanks Simon for your patch.
You could try latest commit, on your laptop?

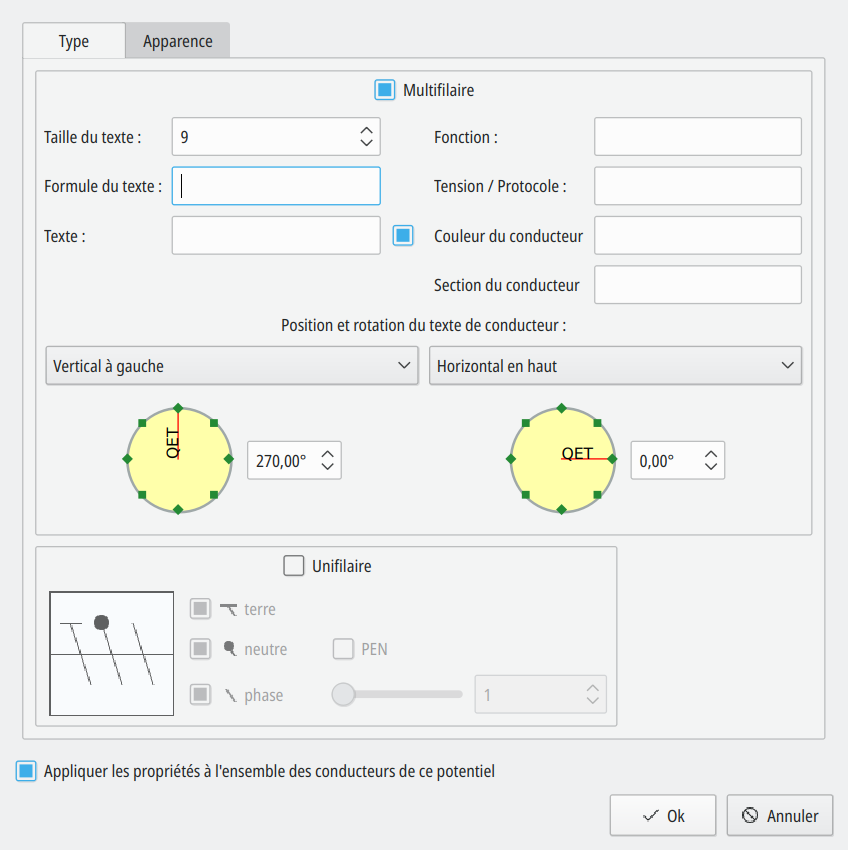

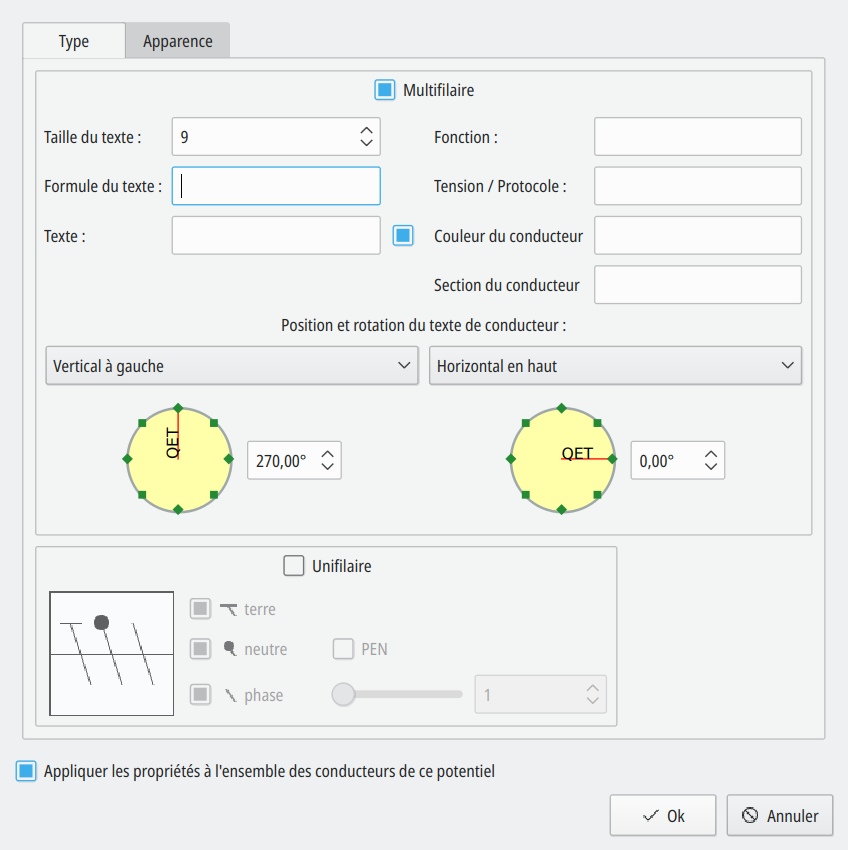

widget_conductor.png 68.9 kb, 196 downloads since 2020-06-19
Patch to check on 1368 * 768 laptop with lastest commit. Not sure working on 1024 * 768 monitor..
0001-Try-to-improve-conductor-widget.patch 1.48 kb, 170 downloads since 2020-06-19

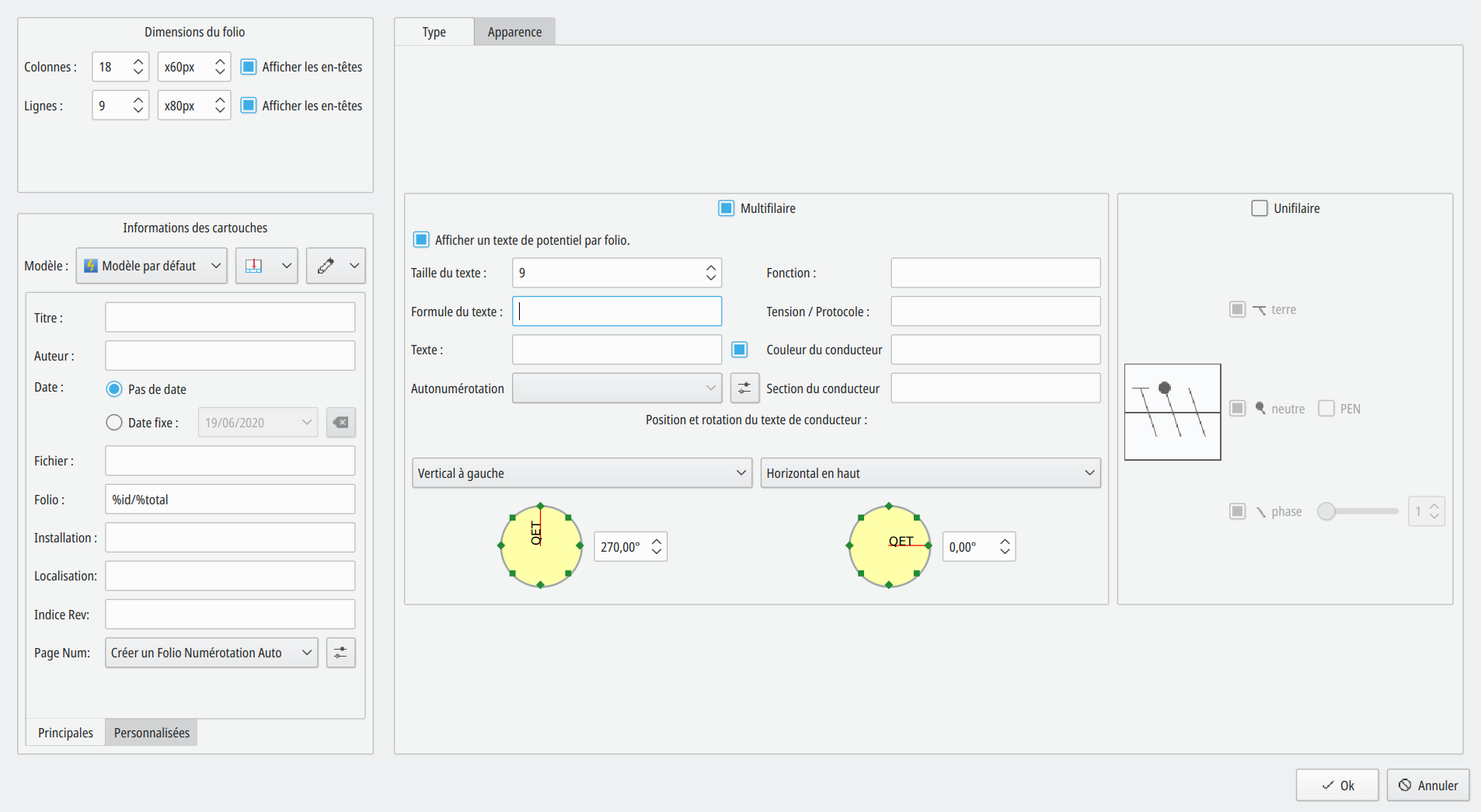

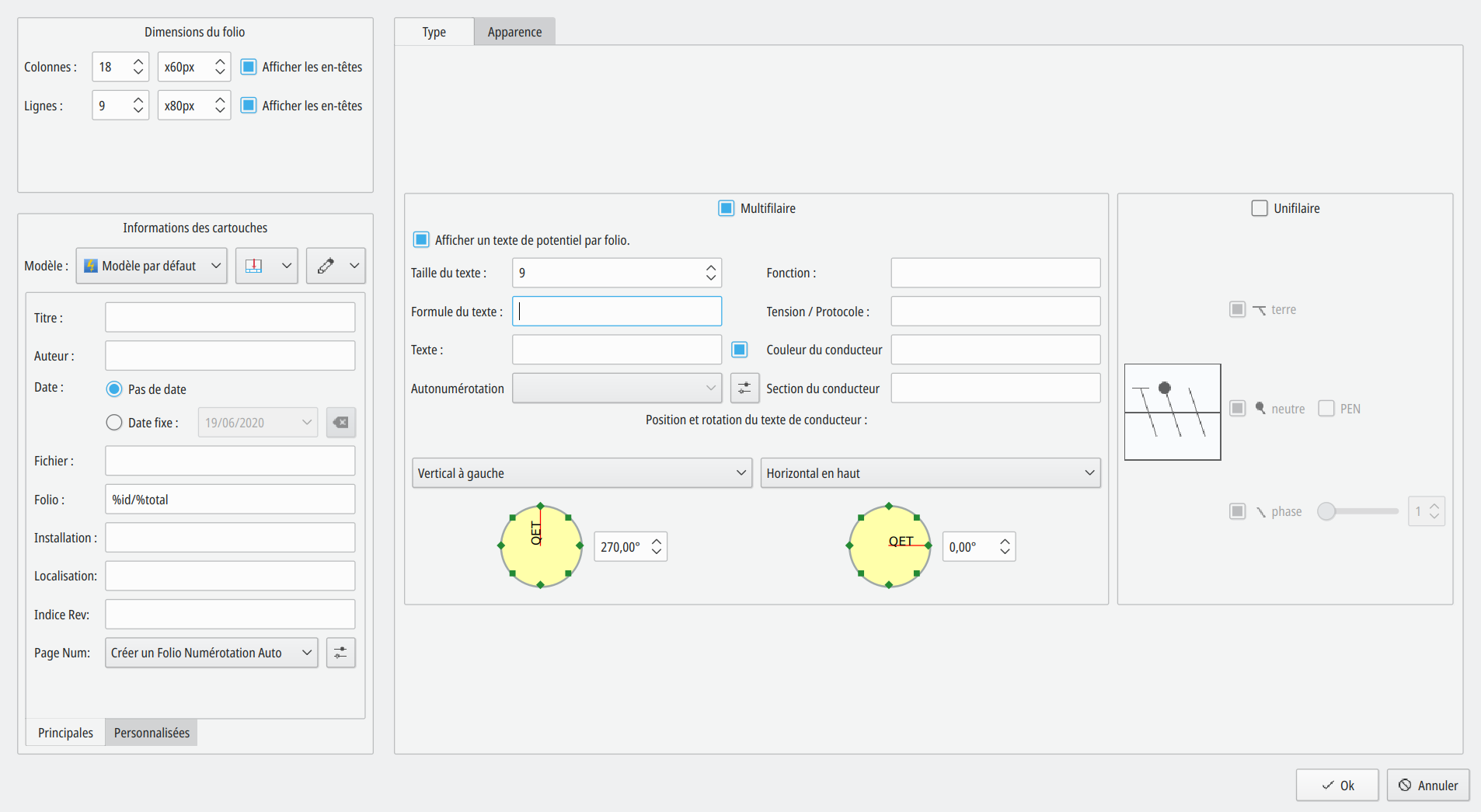

widget_to_check.png 135.82 kb, 66 downloads since 2020-06-19
I think such a solution would be ideal. Only I do not know how to run it with the program.
Try latest package.
extra info:
https://doc.qt.io/qt-5/scalability.html
https://doc.qt.io/qt-5/qdesktopwidget.html
https://stackoverflow.com/questions/246 … tion-in-qt
QUiLoader: basically put the * .ui files in resources and then get the right one, see "calculator builder" in Examples
another alternative ui
Temp.zip 186.79 kb, 169 downloads since 2020-06-19

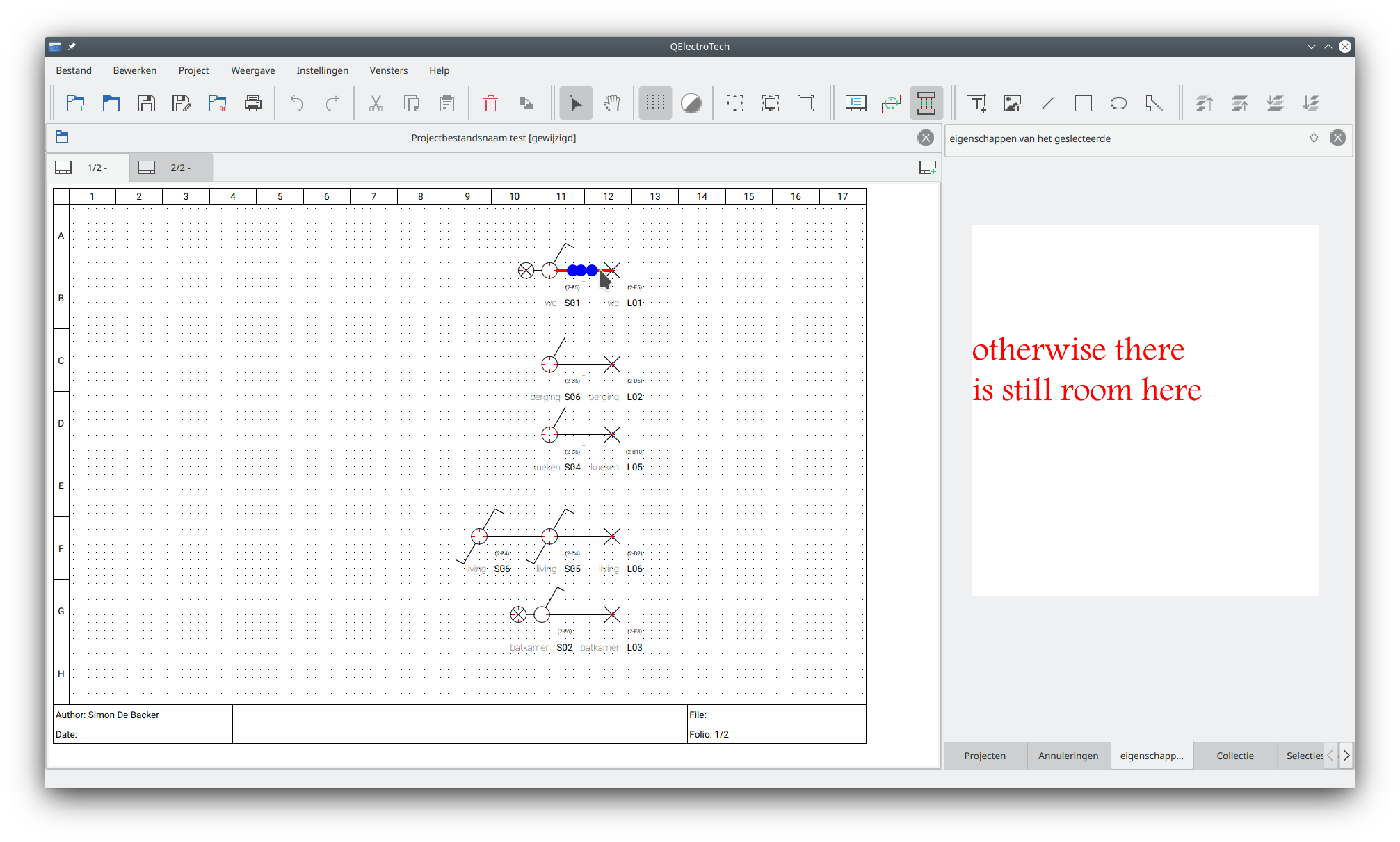

otherwise there is still room here

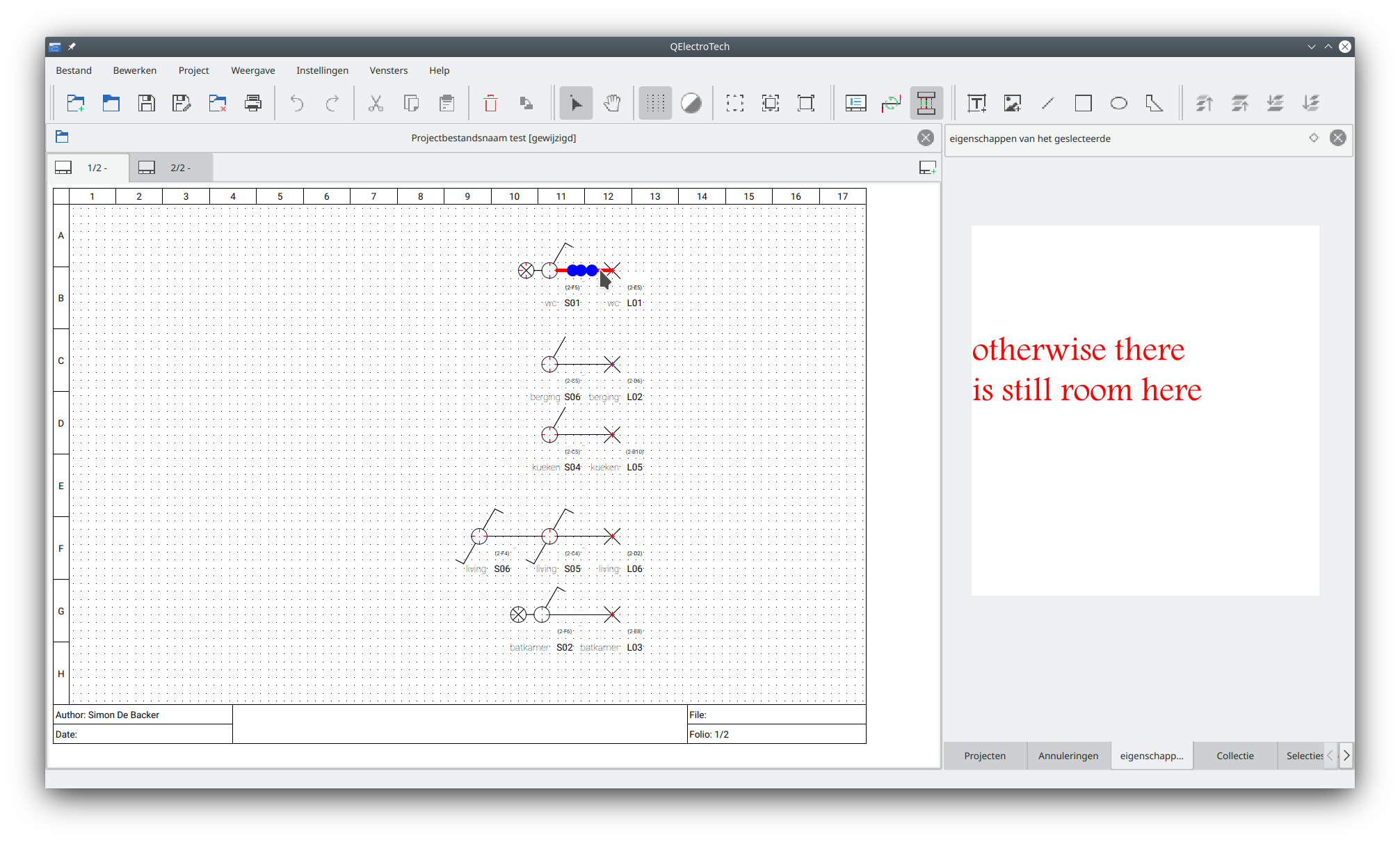

Screenshot_20200619_192058.png 133.94 kb, 67 downloads since 2020-06-19
At work, I have another program for drawing diagrams. There I use brown color to number the conductors, and for links to other pages I use blue color. I know that in practice it is very convenient. Less trained people are easier to navigate.
It would not be bad if you could change the font color here.
you mean this?
you can do this.

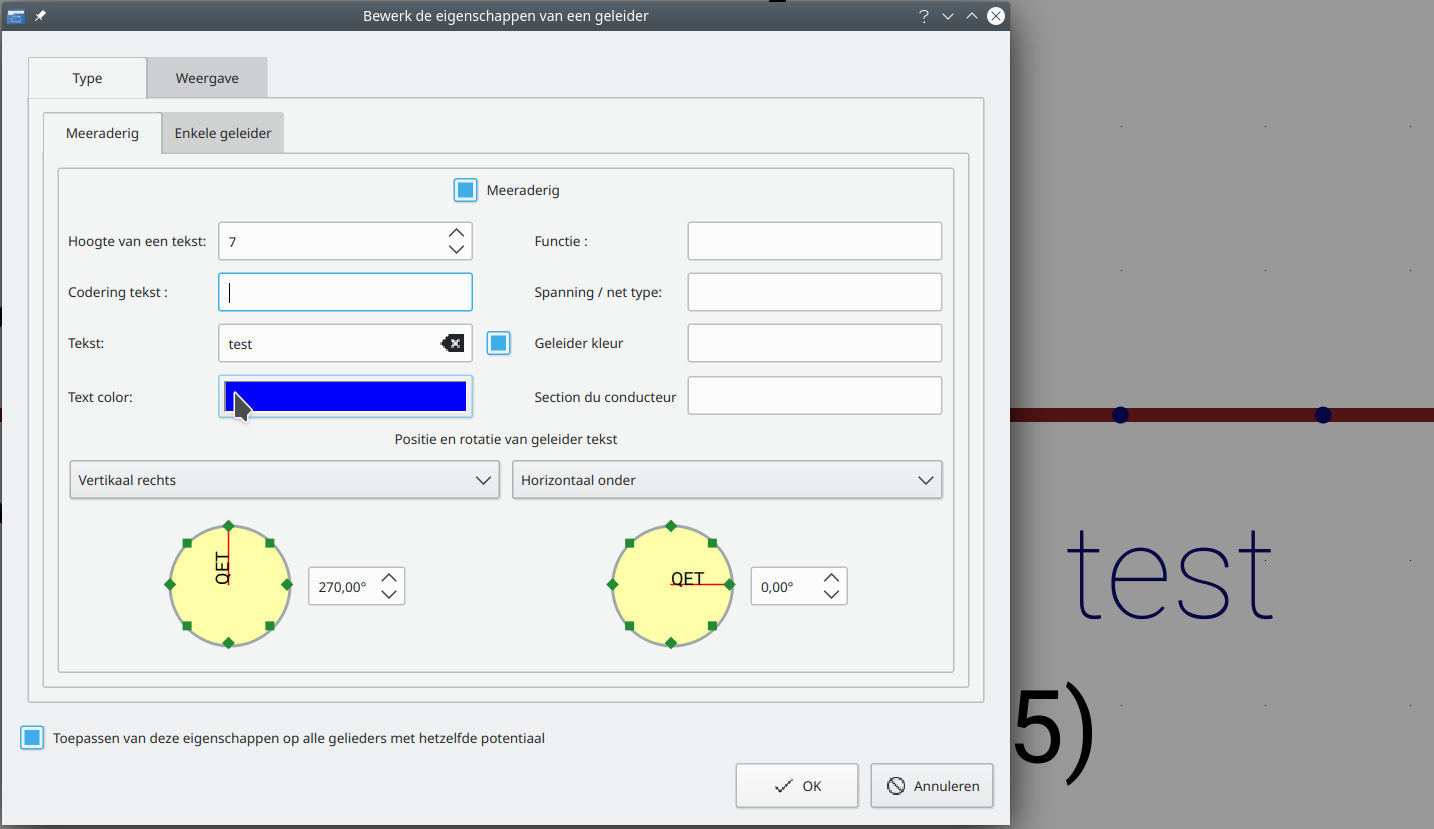

Screenshotok.png 200.76 kb, 158 downloads since 2020-06-19
extra info:
https://doc.qt.io/qt-5/scalability.html
https://doc.qt.io/qt-5/qdesktopwidget.htmlhttps://stackoverflow.com/questions/246 … tion-in-qt
QUiLoader: basically put the * .ui files in resources and then get the right one, see "calculator builder" in Examplesanother alternative ui
I forgot to add patch.
0001-another-alternative-ui-for-ConductorPropertiesWidget.patch 28.27 kb, 159 downloads since 2020-06-19
you mean this?
you can do this.
Yes, with paths to other pages this works. But with the text number / name of the conductor, such a property does not appear. I'm not very worried about this. I put the slope of the text. It also stands out very well and users like it. Only one thing is bad - you cannot put this turn automatically on the entire project. Or I don’t know how to do it.
Yes, with paths to other pages this works. But with the text number / name of the conductor, such a property does not appear. I'm not very worried about this. I put the slope of the text. It also stands out very well and users like it. Only one thing is bad - you cannot put this turn automatically on the entire project. Or I don’t know how to do it.
ya, it's not yet in the software.
/**
* @brief ConductorPropertiesWidget::properties
* @return the edited properties
*/
ConductorProperties ConductorPropertiesWidget::properties() const
{
ConductorProperties properties_;
if (ui -> m_multiwires_gb -> isChecked()) properties_.type = ConductorProperties::Multi;
else if (ui -> m_singlewire_gb -> isChecked()) properties_.type = ConductorProperties::Single;
properties_.color = ui -> m_color_kpb->color();
properties_.m_bicolor = ui->m_color_2_gb->isChecked();
properties_.m_color_2 = ui->m_color_2_kpb->color();
properties_.m_dash_size = ui->m_dash_size_sb->value();
properties_.style = ui -> m_line_style_cb->itemData(ui->m_line_style_cb->currentIndex()).value<QPen>().style();
properties_.m_formula = ui->m_formula_le->text();
properties_.text = ui -> m_text_le -> text();
properties_.m_function = ui -> m_function_le->text();
properties_.m_tension_protocol = ui -> m_tension_protocol_le->text();
properties_.m_wire_color = ui -> m_wire_color_le->text();
properties_.m_wire_section = ui -> m_wire_section_le->text();
properties_.text_size = ui -> m_text_size_sb -> value();
properties_.cond_size = ui -> m_cond_size_sb -> value();
properties_.m_show_text = ui -> m_show_text_cb -> isChecked();
properties_.m_one_text_per_folio = ui -> m_one_text_per_folio_cb -> isChecked();
properties_.verti_rotate_text = m_verti_select -> value();
properties_.horiz_rotate_text = m_horiz_select -> value();
properties_.m_vertical_alignment = ui->m_verti_cb->currentIndex() == 0? Qt::AlignLeft : Qt::AlignRight;
properties_.m_horizontal_alignment = ui->m_horiz_cb->currentIndex() == 0? Qt::AlignTop : Qt::AlignBottom;
properties_.singleLineProperties.hasGround = ui -> m_earth_cb -> isChecked();
properties_.singleLineProperties.hasNeutral = ui -> m_neutral_cb -> isChecked();
properties_.singleLineProperties.is_pen = ui -> m_pen_cb -> isChecked();
properties_.singleLineProperties.setPhasesCount(ui -> m_phase_cb -> isChecked() ? ui -> m_phase_sb -> value() : 0);
return properties_;
}
I forgot to add patch.
Great, merged, thanks Simon.
How quickly do you work! You have a good team!
Yes, with paths to other pages this works. But with the text number / name of the conductor, such a property does not appear. I'm not very worried about this. I put the slope of the text. It also stands out very well and users like it. Only one thing is bad - you cannot put this turn automatically on the entire project. Or I don’t know how to do it.
OK I think this can work, but !! this has not been tested for errors yet !!! if you want to test this make backups of your files !!!

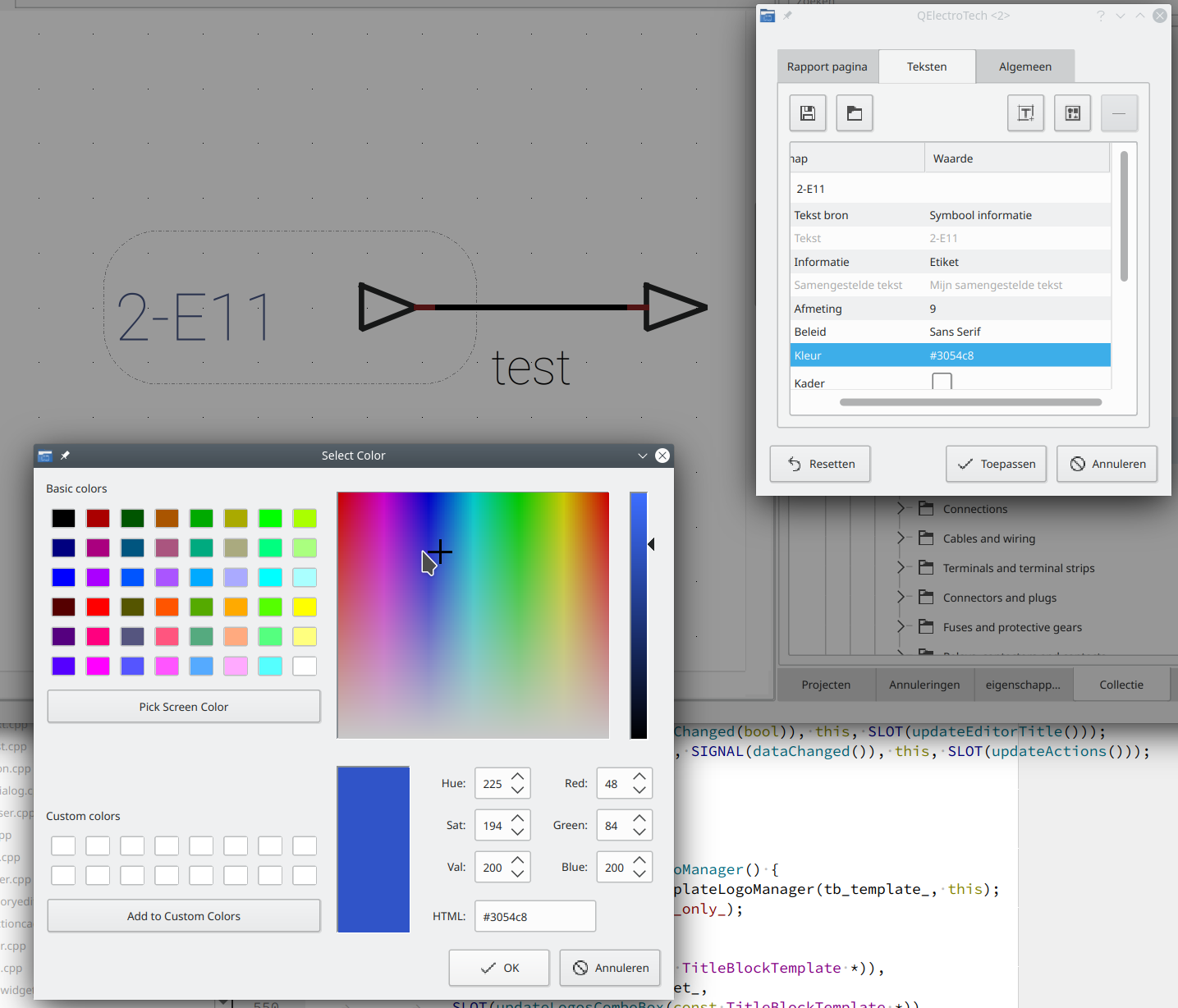

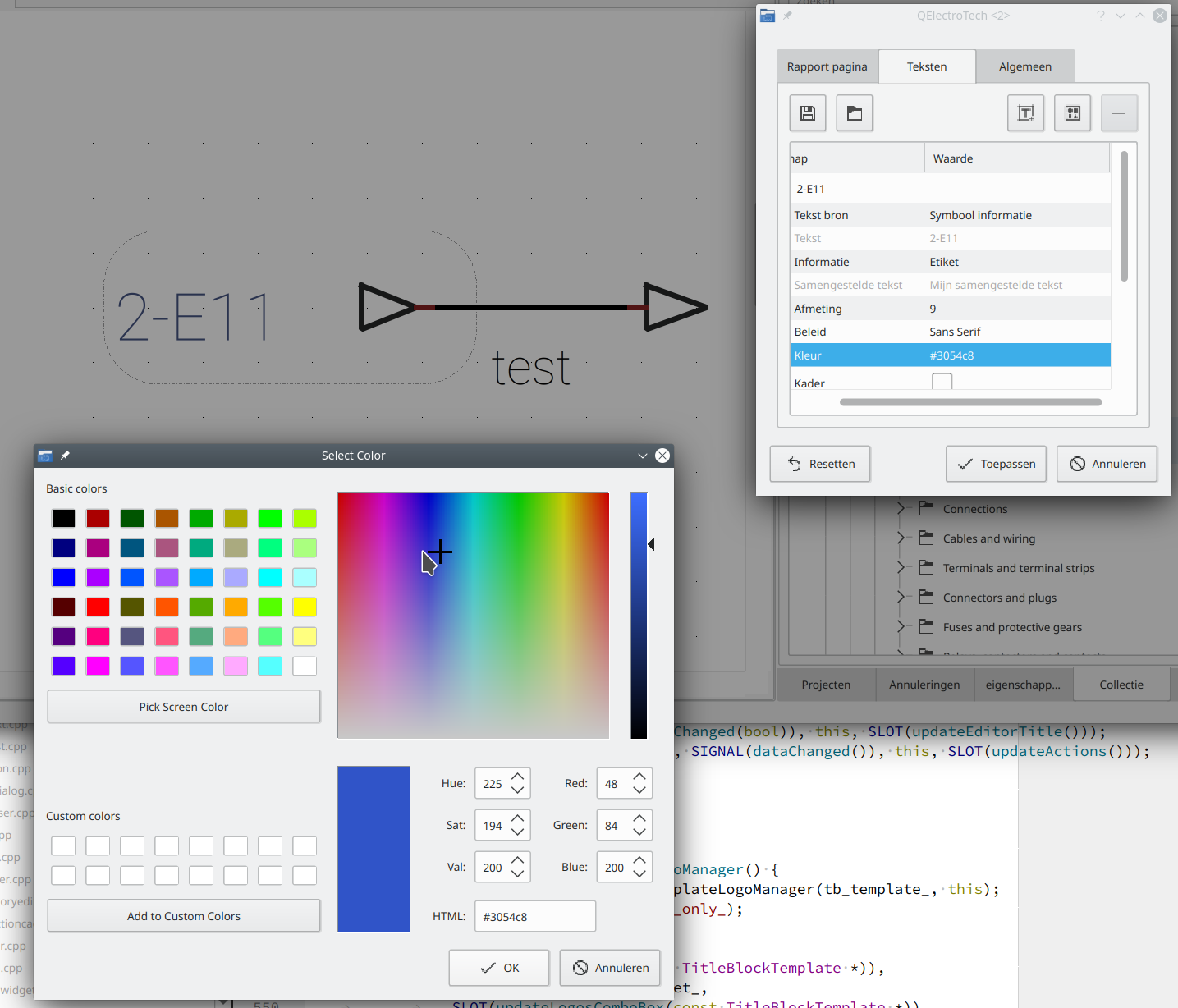

0001-add-font-color-of-the-conductors.patch 24.06 kb, 163 downloads since 2020-06-20
example
from
<conductor onetextperfolio="1" color2="#ff0000" displaytext="1" terminal1="23" freezeLabel="false" function="" tension-protocol="" bicolor="true" terminal2="{b5bb2186-29f5-4b62-baa7-8267cc4afb93}" horizontal-alignment="AlignBottom" section-conducteur="" formula="" element2="{2d2c36fc-594a-40bb-8b5f-201b9adea815}" type="multi" numsize="7" horizrotatetext="0" dash-size="2" x="0" num="test" y="0" condsize="1" couleur-conducteur="" vertirotatetext="270" vertical-alignment="AlignRight">
<sequentialNumbers/>
</conductor>
to
<conductor function="" text_color="#0000ff" horizrotatetext="0" vertirotatetext="270" couleur-conducteur="" numsize="7" num="test" bicolor="true" section-conducteur="" condsize="1" vertical-alignment="AlignRight" color2="#ff0000" type="multi" x="0" horizontal-alignment="AlignBottom" freezeLabel="false" terminal2="{b5bb2186-29f5-4b62-baa7-8267cc4afb93}" tension-protocol="" element2="{2d2c36fc-594a-40bb-8b5f-201b9adea815}" dash-size="2" terminal1="15" formula="" displaytext="1" y="0" onetextperfolio="1">
<sequentialNumbers/>
</conductor>
Edit @Simon you can use tag code=xml. GeSHi - Generic Syntax Highlighter.

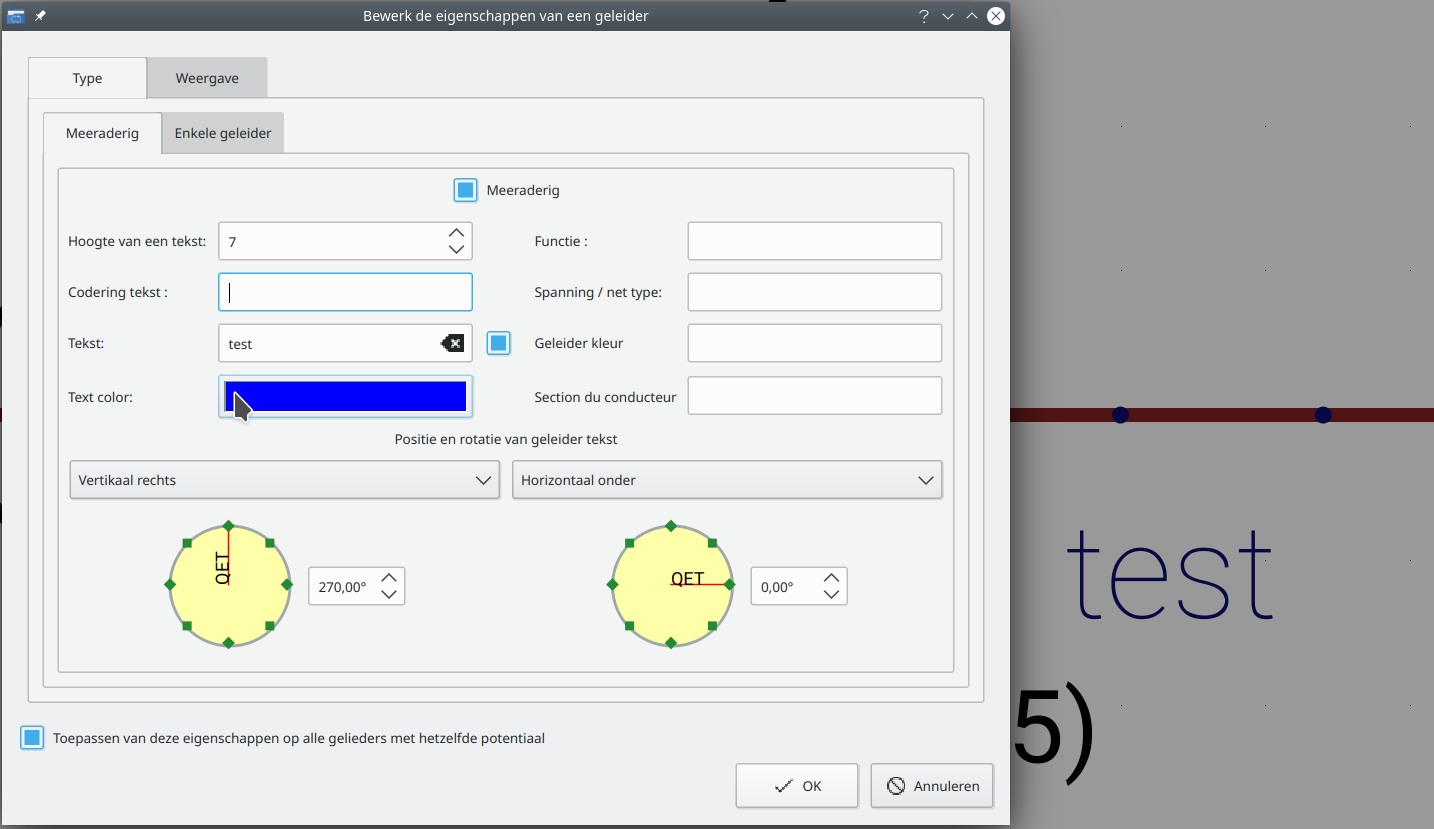

color.png 87.47 kb, 184 downloads since 2020-06-20
OK I think this can work, but !! this has not been tested for errors yet !!! if you want to test this make backups of your files !!!
Great.
Edit : merged, thanks Simon.
After the last update, everything is super!
Great.
I wanted to ask more.
But is it possible to make the cursor focus immediately turn into “Formula du labe” when entering the properties of an element. And if the focus remained in the same place, then after pressing enter, the "apply" button was pressed. And then it turns out a lot of movements "mouse - keyboard - mouse". Although it would be possible to do everything from the keyboard.
ctrl + E
Tab
Tab
entering the properties of an element. (“Formula du labe”)
Alt + T
Thanks for the help. But this is not the best option. The discovery of the properties of an element is indeed sometimes better done through Ctrl+E. But the window opens and you need to press TAB to get into the label string. But then you need to press TAB several times to get to the "apply" button. Is it really impossible to make a default focus in the correct place in the qt and when you press Enter you clicked "apply"?
ctrl + E
Tab
Tab
entering the properties of an element. (“Formula du labe”)
Alt + T
Alt + T == is the "apply" button.
I can not find where it is. I have Ubuntu 20.4
