Topic: creating elements with mulitple links?

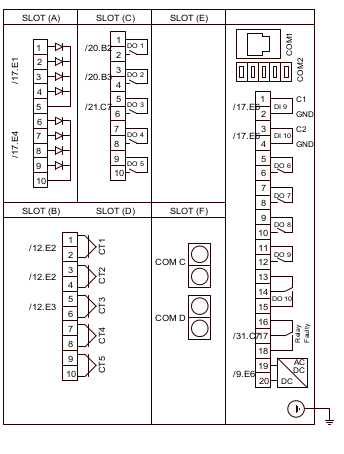

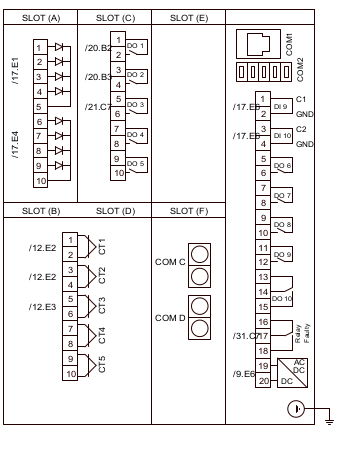

i want to create an element to use multiple times and link some of its points in it  with other elements in different foilos, as shown below i wanna create this diagram as one element and link points inside it.

Post's attachments

Attachment icon Screenshot from 2019-10-15 14-00-00.png 35.65 kb, 374 downloads since 2019-10-15

2 Reply by scorpio810

  • scorpio810
  • scorpio810
  • QElectroTech Team Manager, Developer, Packager
  • Offline

Re: creating elements with mulitple links?

Look http://www.favreber.ch/QElectroTech/

http://www.favreber.ch/QElectroTech/dow … schema.zip

https://qelectrotech.org/forum/viewtopi … 2705#p2705

"Le jour où tu découvres le Libre, tu sais que tu ne pourras jamais plus revenir en arrière..."Questions regarding QET belong in this forum and will NOT be answered via PM! – Les questions concernant QET doivent être posées sur ce forum et ne seront pas traitées par MP !

3 Reply by asmaama.ahmed2020

  • asmaama.ahmed2020
  • Nouveau membre
  • Offline

Re: creating elements with mulitple links?

that is not what i am looking for , i want each link to  be beside its corresponding pin in the element, not the whole element to have all linked devices

4 Reply by scorpio810

  • scorpio810
  • scorpio810
  • QElectroTech Team Manager, Developer, Packager
  • Offline

Re: creating elements with mulitple links?

Like this?



https://qelectrotech.org/forum/viewtopic.php?id=1460


https://download.qelectrotech.org/qet/forum_img/750431.png
https://download.qelectrotech.org/qet/forum_img/31_bwo-steuerung_-kf1-_belegungs%c3%bcbersicht_(1-2).svg
https://download.qelectrotech.org/qet/forum_img/52_sensor-aktor-box_beschickung_(3).svg

"Le jour où tu découvres le Libre, tu sais que tu ne pourras jamais plus revenir en arrière..."Questions regarding QET belong in this forum and will NOT be answered via PM! – Les questions concernant QET doivent être posées sur ce forum et ne seront pas traitées par MP !

5 Reply by asmaama.ahmed2020

  • asmaama.ahmed2020
  • Nouveau membre
  • Offline

Re: creating elements with mulitple links?

yes this is kind of what i am talking about but i want the link label to be attached with the element in case of moving it another place in the foilo

Post's attachments

Attachment icon 31_bwo-steuerung_-kf1-_belegungsÃŒbersicht_(1-2).svg 234.61 kb, 513 downloads since 2019-10-16

6 Reply by scorpio810

  • scorpio810
  • scorpio810
  • QElectroTech Team Manager, Developer, Packager
  • Offline

Re: creating elements with mulitple links?

Example :

Post's attachments

Attachment icon PLC.qet 55.2 kb, 537 downloads since 2019-10-17
