Topic: Master/Slave elements

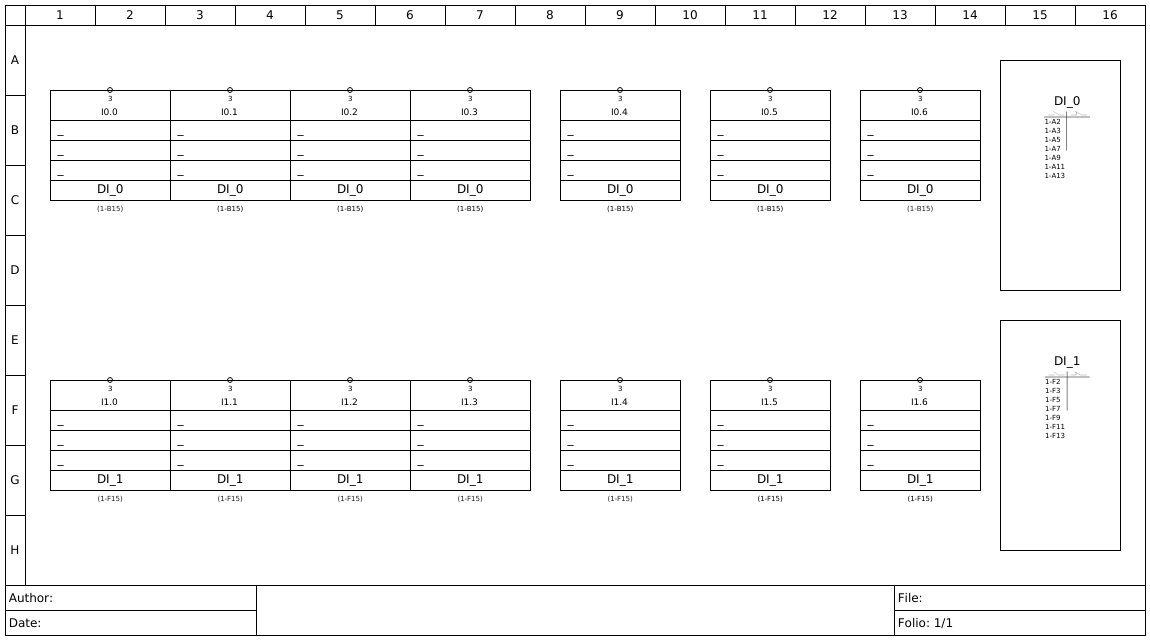

I was wondering if there is another option available for master slave element then contacts (NO, NC or CO). I am trying to make a Digital input card and Digital output card with the inputs/outputs in referred tot the card. Is there some way to remove the "Cross"-symbol or "Contacts" and just get the references. Is there an option to control them by using the dynamic text fields?

Post's attachments

1_diagram.png, 22.54 kb, 1150 x 640
1_diagram.png 22.54 kb, 290 downloads since 2018-05-08

Re: Master/Slave elements

When new dynamic text appear, I proposed to dev to add possibility to call label or position of others elements. With this evolution, you could do that and more ...

Post's attachments

Capture du 2018-05-09 08-37-55.png, 13.54 kb, 359 x 195
Capture du 2018-05-09 08-37-55.png 13.54 kb, 306 downloads since 2018-05-09

  • scorpio810
  • scorpio810
  • QElectroTech Team Manager, Developer, Packager
  • Offline

Re: Master/Slave elements

Perhaps you could user report element  hack like me :

https://qelectrotech.org/forum/viewtopi … 7812#p7812


Fixed on 5248 :


https://qelectrotech.org/forum/viewtopi … 7814#p7814
