Topic: Macro's

Is it possible to make macro's for multiple use. In a macro will be several symbols with connections and their definitions. There will also be formula's for auto numbering in the symbols. By inserting a complete macro the symbols are numbered according to their format. This speeds up the making of schedules and gives them more consistency.

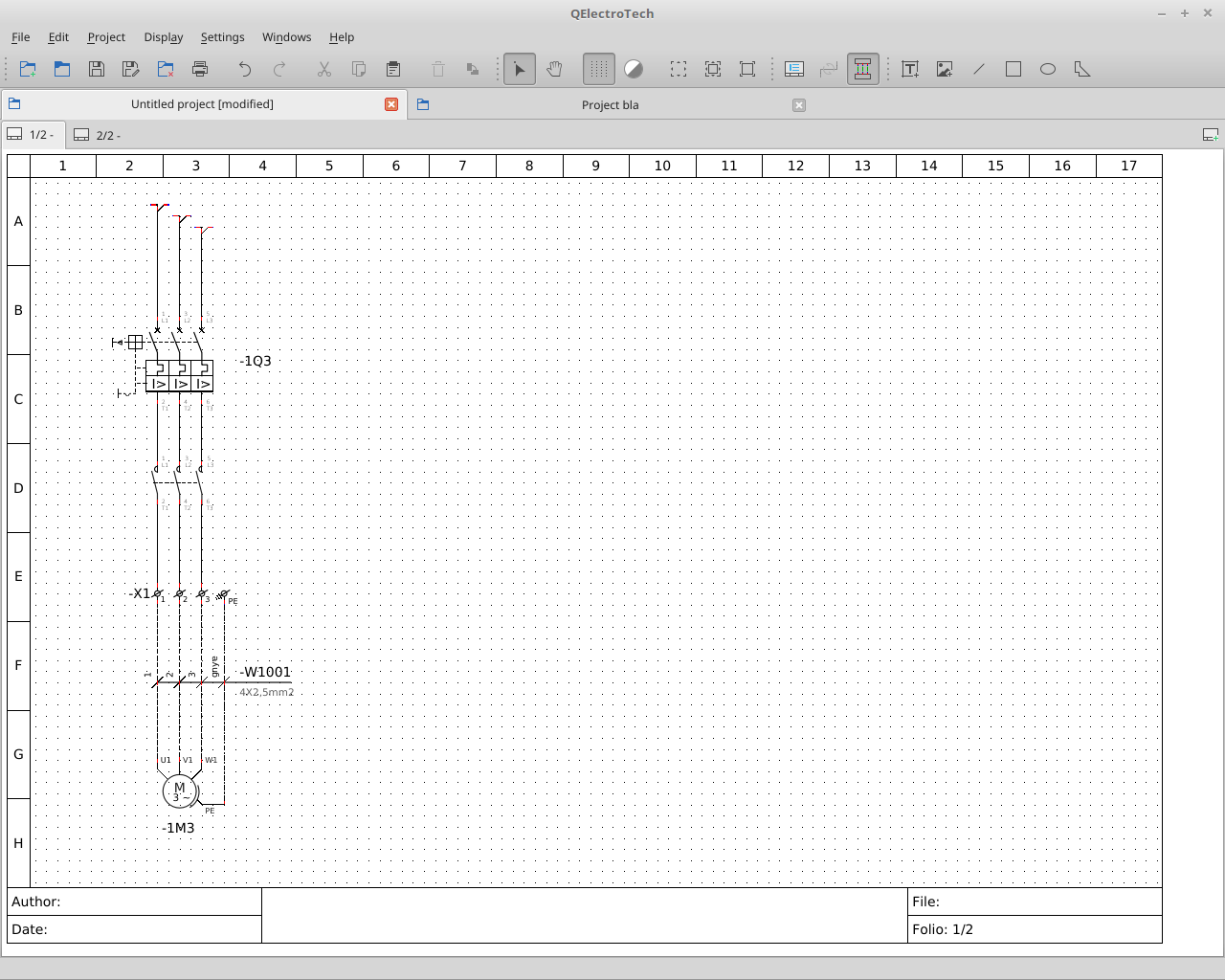

Here is an example of a macro:

Post's attachments

pic1.png, 43.98 kb, 1280 x 1024
pic1.png 43.98 kb, 294 downloads since 2018-04-16

Re: Macro's

I already thought of this, in past.
I think I will add it to the version 0.7

Re: Macro's

Probably a good option for version 0.8?
