Topic: Auto labeling

Hello

I created some library elements. When I drag an element into the schematic, the component is not automatically labeled.
When I drag an element into the schematic from the official QET-Libarary, labeling works fine.

When I copy an element from the official libarary in my custom folder, labeling also does not work.

If possible, I would like to label my elements like

-KF01..
-MA01...
-QA01..
and so on.

Is there a way to set up QET so that components are automatically labeled like this?
Best regards
Geri

Post's attachments

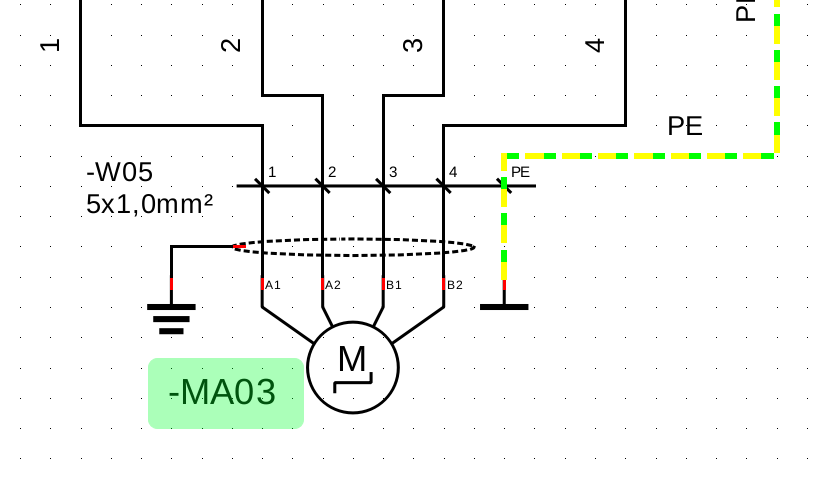

Attachment icon BMK_Description.png 29.98 kb, file has never been downloaded.

Re: Auto labeling

Hallo Geri,

looks like you're missing a file in your custom-collection:
search the forum for "qet_labels.xml".

Fragen zu QET gehören in dieses Forum und werden nicht per PM beantwortet! – Questions regarding QET belong in this forum and will NOT be answered via PM! – Les questions concernant QET doivent être posées sur ce forum et ne seront pas traitées par MP !

3 (edited by Geri Yesterday 22:06:44)

Re: Auto labeling

--

4 (edited by Geri Yesterday 22:05:56)

Re: Auto labeling

Cool, thank you!

Before, I spent more than three hours with gemeni on this theme without any success. No hints about qet_labels.xml...nomicons/ermm
