Topic: Difficulties with cross-referencing

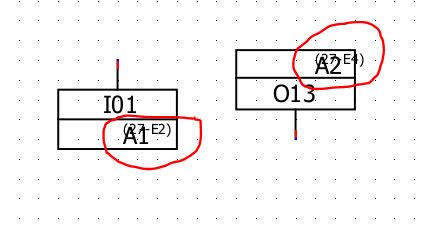

I can't solve a problem I'm having with the cross-reference representation. I've tried several ways but it keeps appearing over the element label. Can anyone help me with this?

Post's attachments

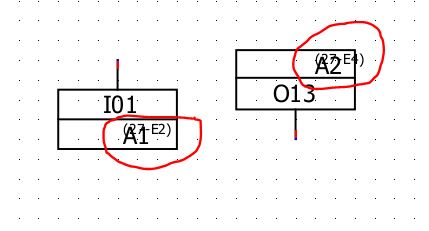

Capturar.JPG, 16.91 kb, 429 x 231
Capturar.JPG 16.91 kb, 32 downloads since 2024-05-14

Re: Difficulties with cross-referencing

Hello
Project/Project Settings/new folio/Cross References/XRef slave position

Best regards
Stebo

Re: Difficulties with cross-referencing

This happens because the reference position is the legend and you have placed the legend inside the symbol, you must change the position setting or the legend of the place symbol.

Re: Difficulties with cross-referencing

Oh, it's work.
thanks.
