Topic: How to change Neutral/Grounds symbol in the single line diagram?

Hi!

I need to develop a single line diagram but it need to follow some standards.

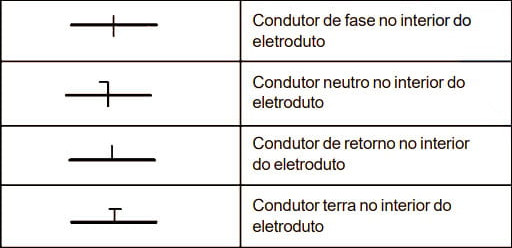

The phase is OK! But Neutral and Ground is a bit different, Neutral instead of use a line with a circle, it's an inverted "L", while Ground is a "half T", like:

Is there some way to change it?

BTW QEletroTech is amazing!

Post's attachments

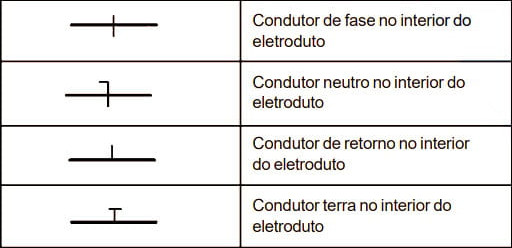

neutral.jpg, 40.15 kb, 512 x 248
neutral.jpg 40.15 kb, 91 downloads since 2022-07-30

  • scorpio810
  • scorpio810
  • QElectroTech Team Manager, Developer, Packager
  • Offline

Re: How to change Neutral/Grounds symbol in the single line diagram?

Hi fagnerin and thanks for compliments,

see here :
https://git.tuxfamily.org/qet/qet.git/t … s.cpp#n119
https://git.tuxfamily.org/qet/qet.git/t … s.cpp#n154

"Le jour où tu découvres le Libre, tu sais que tu ne pourras jamais plus revenir en arrière..."

Re: How to change Neutral/Grounds symbol in the single line diagram?

I tried to change and broke the compilation every time, I don't know much about cpp, and I had some problems compiling it, so I give up.

Maybe would be nice if those items was treated as a collection, so the user customize it as an element.

Anyway, thanks for your help!

  • scorpio810
  • scorpio810
  • QElectroTech Team Manager, Developer, Packager
  • Offline

Re: How to change Neutral/Grounds symbol in the single line diagram?

Like this:
https://download.qelectrotech.org/qet/forum_img_2/fagnerln.png
