Hello,
when I insert new connection onto already existing wire (splice for example), it won't delete old wire, so I'm left with three wires. Only solution I found, is to delete old wire first and then insert connection. Can I change this behavior? Thank you

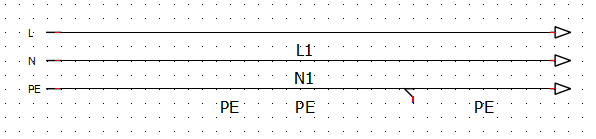

1Capture.PNG 3.32 kb, 231 downloads since 2020-05-03
Hi,
splice like terminal element keep equipotential wire and extend your PE wire.
Btw, enable use one text per folio potential .
Hi, so you saying it's normal behaviour?
This is what I mean, if I add splice onto existing wire, wire is still there and I if try to move splice you can see that there are three wires, which is incorrect:
Yes is normal, but you use the wrong element in this configuration :
It should be interesting when you put element over existing wire to insert automatically element on wire (in line) ...
What do you mean by wrong element? I can't remove terminal from splice, I can remove wire or whole splice.
#galexis: Yes that's what I mean.
So right way to do it, is deleting the the existing wire fire and then inserting splice? But then I'm loosing wire's text..
Is easy to edit an element.
The two horizontal terminals in your splice create a new wire in your fisrt wire, because automatic conductor connect the spline when you align to report elements.
Sorry, I don't understand you. I know that splice create new wire, my problem is, that if I insert splice onto already existing wire, I have to delete that old wire.
So far, it has never bothered anyone for ~13 years under QET to superimpose the wires ... in the case of the common parts of the coils, there are many overlapping wires to form one . ;-)
QET does not work like Eplan, example :
Nice improvement about wires when a part is removed.
Is there a way to trig that handling automatically - so we can say that all wires of a net is to connect to a by user selected terminal?
That would make it easier to then insert a split or other part in series with another part (where there then is not multiple but only a single wire)
Is there a way to trig that handling automatically - so we can say that all wires of a net is to connect to a by user selected terminal?
That would make it easier to then insert a split or other part in series with another part (where there then is not multiple but only a single wire)
I think no, you need to select manually a selected area for connect wires.
Thanks for all your answers
Hi...i have a small query here. How you go about adding a #12 or #14 wire to an existing splice in a JB, should i redo the splice with the new wire or simply add it into the pre twisted splice and let the Wire nut twist it together.
