Topic: Reference elements in wrong column

I'm using element (Magneto Thermal Circuit Breaker):

project0+embed://import/10_electric/10_allpole/200_fuses_protective_gears/12_magneto_thermal_circuit_breakers/disjoncteur_magneto-thermique.elmt

and the NO-contact:

project0+embed://import/10_electric/10_allpole/310_relays_contactors_contacts/03_contacts/contact_gv_no.elmt

and the NC-contect:

project0+embed://import/10_electric/10_allpole/310_relays_contactors_contacts/03_contacts/contact_gv_nf.elmt

And linked the two slave components to the master.
But the slave components show up at the wrong column in the master component:

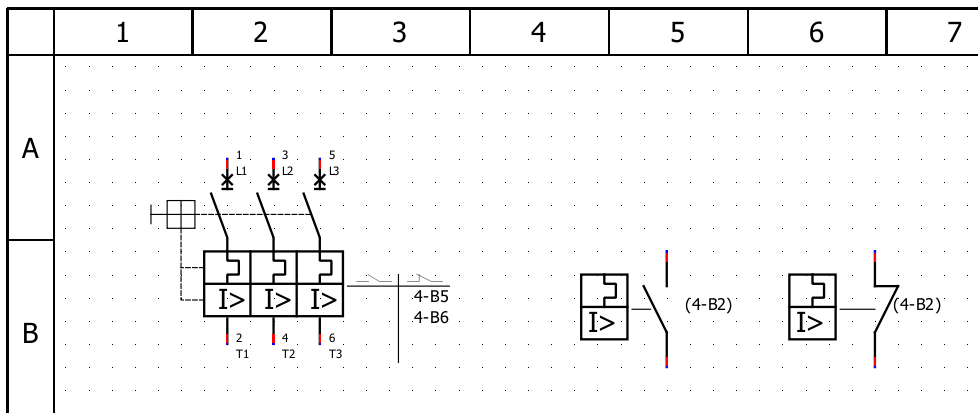

I expected the NO-contact (4-B5) to be in the left column, but it ended up in the same column as the NC-contact.

Post's attachments

Attachment icon 2025-05-05 14_16_25-Greenshot.png 20.12 kb, 2 downloads since 2025-05-05

2 Reply by jophuttenhuis

  • jophuttenhuis
  • Nouveau membre
  • Offline

Re: Reference elements in wrong column

Found the solution,

the NO-element had the wrong property "switch state".
It was: "Switch normally closed", but must be "Switch normally open".
Saved the element in the user library. Done for now.

Maybe the development/main branch should be fixed?

On what branch is the nightly development build based? 0.100.0 DEV 8445 ?
