1 Topic by sloth1089 (edited by sloth1089 2023-09-13 14:58:18)

Topic: Types of "Splice" symbols

https://i.imgur.com/zFjrD0g.jpg

This might be non qet specific, but what does all these symbols really mean?

And I mean this in the context of physical wiring. Does the shape have any significance on where the spliced end is connected to?

This can make a lot of difference if my loads will be connected radially + spurs.

Any reference material?

2 Reply by Calypso (edited by Calypso 2023-09-13 16:58:16)

Re: Types of "Splice" symbols

Hello,
I know these elements as directional wiring.

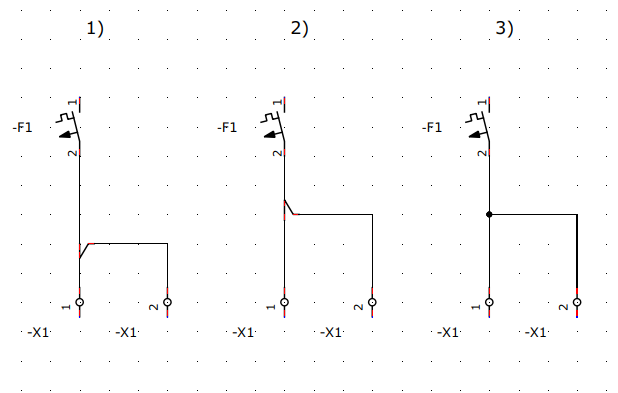

1) A connection goes from fuse -F1 to terminal -X1/2 and from there to terminal -X1/2
2) From fuse -F1 there is a connection to terminal -X1/ and -X1/2
3 It is not immediately apparent that the connection has been branched off

Stebo

Post's attachments

2023-09-13 16:57:20.png, 13.65 kb, 618 x 393
2023-09-13 16:57:20.png 13.65 kb, 42 downloads since 2023-09-13

Re: Types of "Splice" symbols

Calypso wrote:

Hello,
I know these elements as directional wiring.
1) A connection goes from fuse -F1 to terminal -X1/2 and from there to terminal -X1/2
2) From fuse -F1 there is a connection to terminal -X1/ and -X1/2
3 It is not immediately apparent that the connection has been branched off

Stebo


I see. Thanks man
