Topic: Which symbol would correspond to this box?

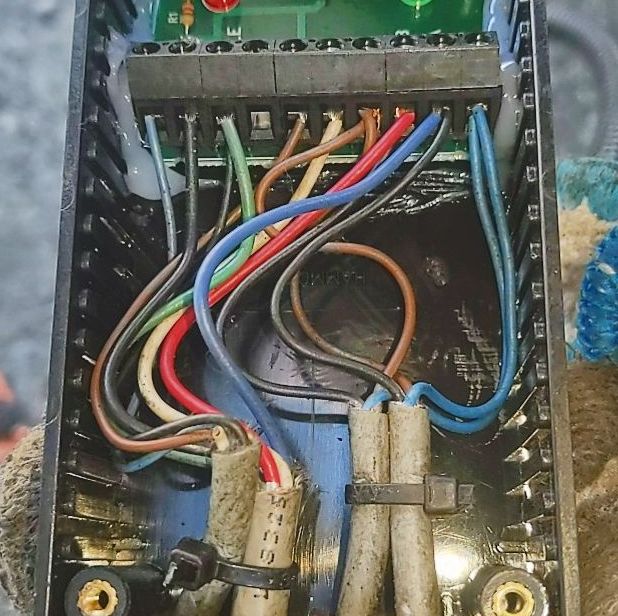

I would call it a terminal block with 10 screws. I expect there not to be a symbol for all numbers of terminal blocks. The attached photo shows them in a box. What is the best way to represent and label the box? Should I draw a rectangle around however the block is achieved? Ideally, the surround frame should be associated to the screw points. Is this a case where one must design a symbol for a box containing a 10 screw terminal strip?

Post's attachments

Boîte Jonction (2).jpg, 90.23 kb, 618 x 616
Boîte Jonction (2).jpg 90.23 kb, 39 downloads since 2023-05-27

Gilles, Canada
  • scorpio810
  • scorpio810
  • QElectroTech Team Manager, Developer, Packager
  • Offline

Re: Which symbol would correspond to this box?

Is easy to draw your self this board, no?
