Topic: Installing/Using Terminal Block Generator on current MacOS

Hi everybody,

thank you all for this marvelous piece of software.  I was looking for software to draw my electrical wirings in my workshop and found qeletrotech.  I am working an a MacOS (10.15.4).  I found it on Thursday and now my actual project has over 10 folios and nearly 200 parts.  Learning qelectrotech was easy to me and I am impressed by its functionality.  So very well done!

I also tried the Terminal Block Generator plugin.  I found the menu entry and clicked on it.  A new window opened, saying, that I had to download the package "pip3 install qet_tb_generator", which I did.  (In fact, I am running Python 3.7.7, installed from Homebrew.)

Next I again clicked on the menu button, but still the same notice appeared. :-(

I was able, to start the qet_tb_generator from the shell/terminal.  It starts and asks for a .qet file to process.  (I can also add a filename, while starting it from the shell prompt.  Then the file seems to be loaded directly.)

In either cases, the application starts its own window and presents the help, how to operate it.  I can also click on the "Create Terminal Blocks" button, but the best I can get, is an error message, that I first have to select the terminals.  But there are no terminals, there is no window, to select from, ...

I tried to read all the related articles in this community forum, except those on french, which I am not able to speak.  Pardon.

There where some issues in the past, regarding installation and usage from MacOS; the most recent ones originating from 2018.Neither of the given solutions where appropriate to my.  (E. g. I don't have any /Applications/Framework/Python ..., or whatsoever was suggested. :-()

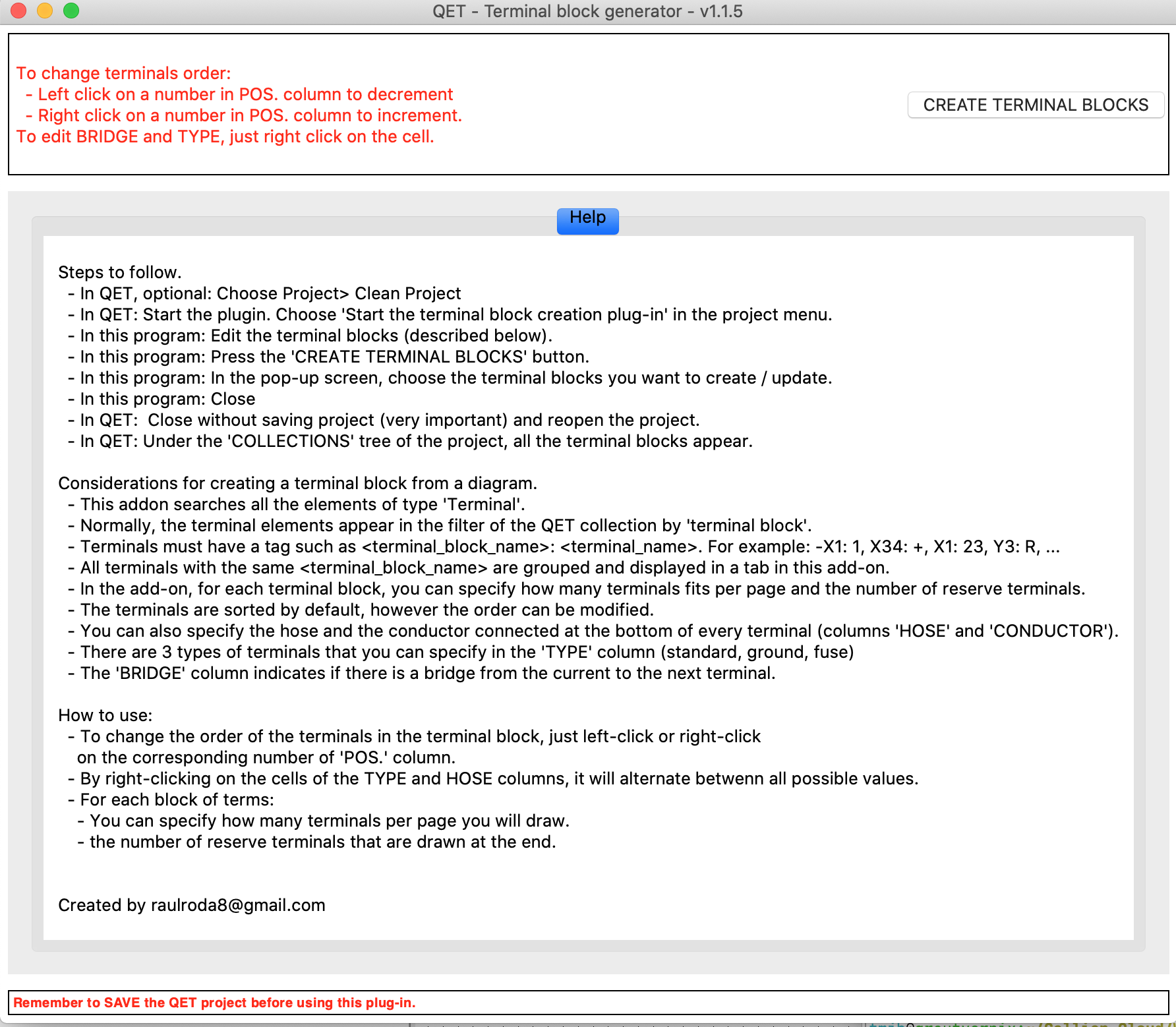

This is the best, I can get, see attachment #1.

... to be continued

Post's attachments

Attachment icon Bildschirmfoto 2020-04-27 um 19.09.10.png 412.04 kb, 101 downloads since 2020-04-27

2 (edited by titanic-jb 2020-04-27 19:34:59)

Re: Installing/Using Terminal Block Generator on current MacOS

... continued, as I was not able to upload more then one attachment.

I'd wish, I could upload some more images, as I prepared another one, which shows one of the folios, where I was extensively playing with connections, in the hope, to get one working with the plugin.

If I missed anything important, feel free to give me some hints.

Bye

   Jan

Post's attachments

Attachment icon Bildschirmfoto 2020-04-27 um 19.23.25.png 172.88 kb, 111 downloads since 2020-04-27

Re: Installing/Using Terminal Block Generator on current MacOS

Hi Jan,

Terminal Block Generator use on macOS a hardcoded PATH in principle the user must install python 3.8 by a bundle and not by homebrew, sorry.
https://git.tuxfamily.org/qet/qet.git/t … .cpp#n2262

https://www.python.org/ftp/python/3.8.2 … sx10.9.pkg

I tried to remove hardcoded PATH but macOS can't see qet-tb-generator ...
https://git.tuxfamily.org/qet/qet.git/c … 1db4ef0fd8

"Le jour où tu découvres le Libre, tu sais que tu ne pourras jamais plus revenir en arrière..."

Re: Installing/Using Terminal Block Generator on current MacOS

Bonjour Scorpio,

thanks for your help.

I installed this python and it helped (a bit).  I am still not able, to start the plugin from within the QElectroTech application, but when I start it by hand, it runs and creates the terminal blocks.

Hoorrrray! :-)

Bye

   Jan

Re: Installing/Using Terminal Block Generator on current MacOS

Hallo Jan,

great. ;-)

The new PATH to 3.8 python version is only changed in latest 0.8-dev bundle, before is used 3.5 version in PATH.
https://download.qelectrotech.org/qet/b … 0r6221.dmg

"Le jour où tu découvres le Libre, tu sais que tu ne pourras jamais plus revenir en arrière..."
