Topic: P&ID

is there a module of p&ID symbols

2 Reply by ArnoVal

  • ArnoVal
  • Membre
  • Offline

Re: P&ID

Hi,

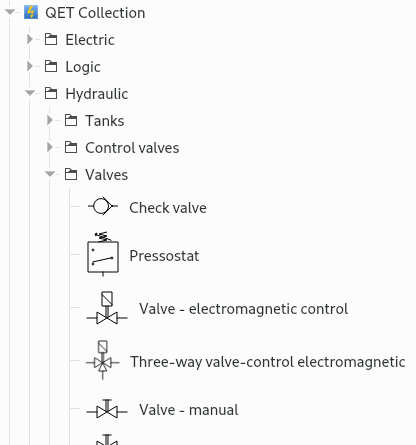

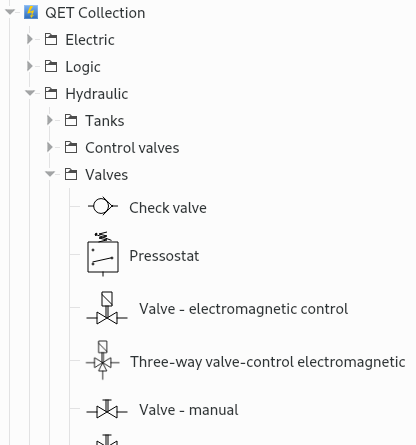

You can find many symbols on the official QET collection in the "Hydraulic" and "Pneumatic" folders, for valves, motors, pumps and many more.
Arnaud

Post's attachments

Attachment icon qet-hydraulic-valves.png 31.59 kb, 213 downloads since 2020-04-20
