1 Topic by George.Hawryluk (edited by George.Hawryluk 2018-09-06 12:16:11)

Topic: Collection Graphics Misaligment

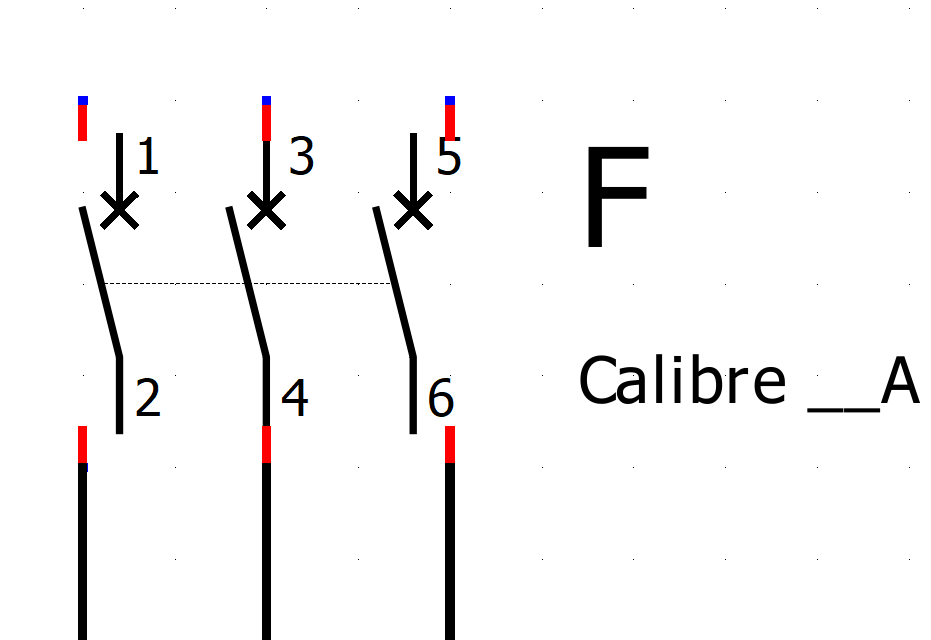

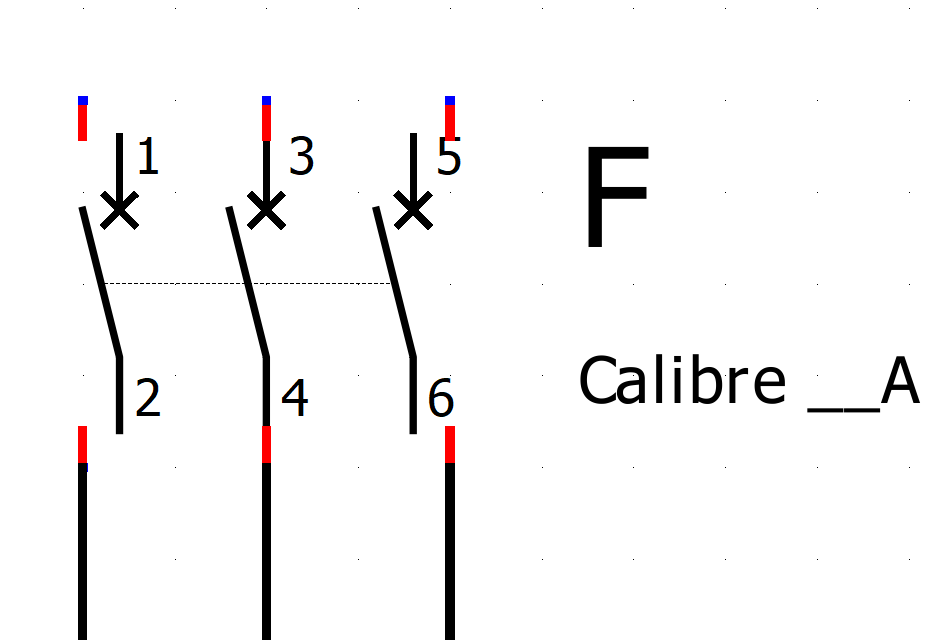

Hi All, I'm having a strange issue (I'm new here so Hi All;-) ), the graphics of let's say a three phase breaker seems to be a bit smaller than the connection points.

Post's attachments

misaligned.png, 18.06 kb, 931 x 640
misaligned.png 18.06 kb, 267 downloads since 2018-09-06

Re: Collection Graphics Misaligment

Ok Seems to be monitor dependant.
