View Issue Details

IDProjectCategoryView StatusLast Update
0000263QElectroTechDiagram Editorpublic2022-10-12 21:21
ReporterTada9 Assigned Toblack_sun
Status closedResolutionfixed
Summary0000263: XRef functionality assumes slave is a switch
DescriptionMaster - slave elements are super useful for splitting one part into multiple logical elements. This makes schematic much more readable.

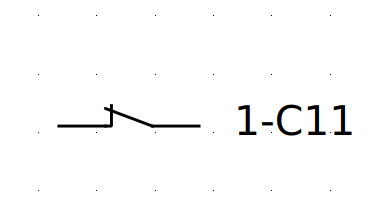

My issue is, QET always assumes the slave is a switch. And draws appropriate switch symbol next to the slave link(see pic.). I would like to use the master-slave elements for other parts as well. My specific use-case has power meters with digital outputs. It makes sense to separate the low voltage digital part into second sheet.
I would like to have an option to display nothing. No symbol is better than wrong symbol.
There is demand for this among the community. I am not the first one to stumble upon this issue.

TagsNo tags attached.
Attached Files



2022-10-12 21:21

developer   ~0000584

Feature added in the 0.9 development version.
Slave have a new type : other

Issue History

Date Modified Username Field Change
2022-06-17 17:16 Tada9 New Issue
2022-06-17 17:16 Tada9 File Added: image.png
2022-06-17 17:16 Tada9 Description Updated
2022-10-12 21:21 black_sun Assigned To => black_sun
2022-10-12 21:21 black_sun Status new => closed
2022-10-12 21:21 black_sun Resolution open => fixed
2022-10-12 21:21 black_sun Note Added: 0000584
