0000253QElectroTechDiagram Editorpublic2022-01-27 23:182026-10-01 05:13
Reporterhubert@zire.pl Assigned To
PriorityimmediateSeverityblockReproducibilityalways
Status newResolutionopen
Summary0000253: Terminals position on each element is random.
DescriptionHi,

On diagram editor terminal positon of elements are "random". In element editor everything is fine.

I even reinstalled QET but without effect :(
Steps To ReproduceI don't know :(
TagsNo tags attached.
Attached Files
QET Terminals bug.png (129,520 bytes)
QET Terminals bug.png (129,520 bytes)

Activities

black_sun

2022-03-30 20:01

developer   ~0000546

What's you monitor resolution (HD, 4K 8K etc...)?
Did you set a scale factor on Windows ?
We encounter strong difficulty with with hpdi monitor and scale factor.
https://qelectrotech.org/forum/viewtopic.php?id=1004
https://qelectrotech.org/forum/viewtopic.php?id=2011

ispyisail

2026-10-01 05:13

developer   ~0000923

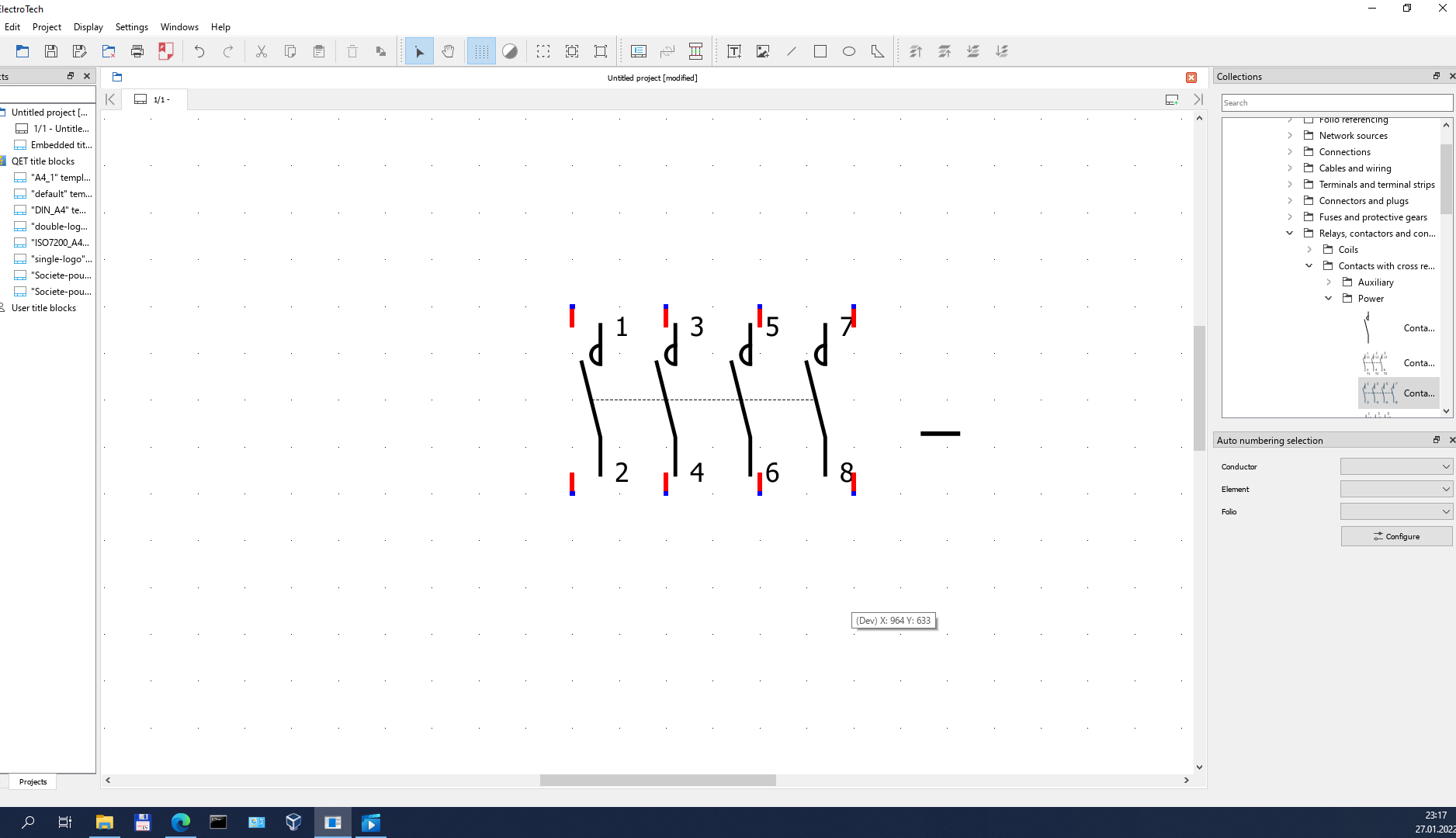

Thanks for the screenshot. In it, the terminals are spread 25 % wider than the symbol's lines, which matches Windows display scaling at 125 %. I could not reproduce it on the current version, at 125 % scaling or at 120 DPI. Do you use two screens with different scaling? Does it still happen with a current build (https://qelectrotech.org/download.php)?
