Summary0000241: Inserting an element on a line - not possible.

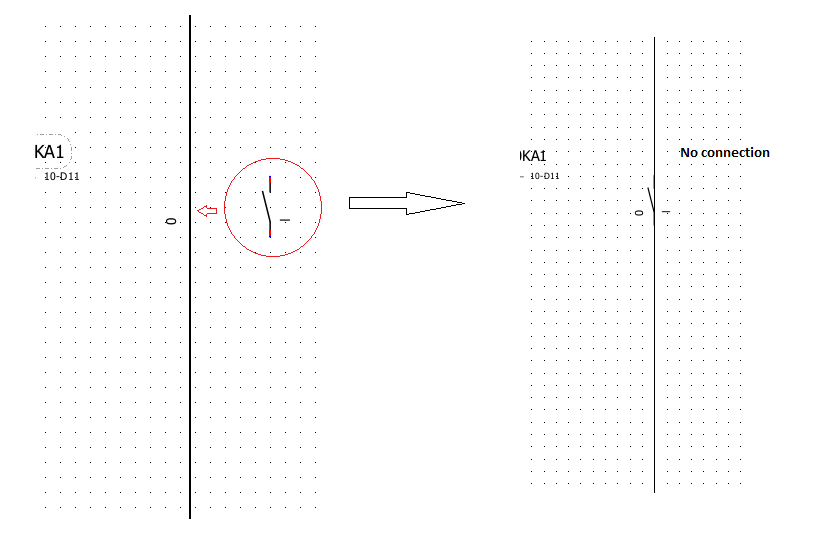

DescriptionCurrently, inserting an element on a signal line does not break this line and does not make a connection to the element terminals. Is this a bug or a deliberate act? The possibility of such insertion of an element will make drawing diagrams much easier.
TagsNo tags attached.

Activities

solpm

2021-07-15 15:37

reporter


scorpio810

2021-07-16 13:14

administrator   ~0000518

Not possible yet.

black_sun

2021-10-16 12:05

developer   ~0000522

May be in future version
