Summary0000239: Generic master/slave elements
DescriptionWe have a number of elements that need to be split across several sheets. As a workaround I define them as coil/switch, but this is not ideal. I would like to have simple generic master/slave elements that I can link together. On the master element there should only appear a simple list of references to slave elements without any switch symbol.
TagsNo tags attached.

Activities

ikcalb

2021-09-11 18:14

reporter   ~0000519

+1

use case: PLC I/Os.
Have a module overview page, and one element per I/O at the appropriate location of the schematic

ikcalb

2021-09-12 11:51

reporter   ~0000520

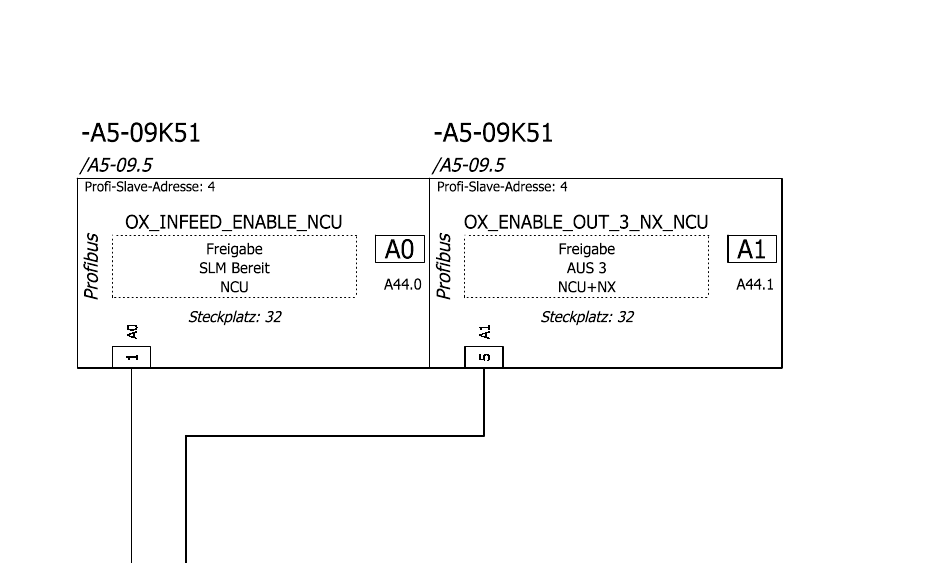

I try to provide an example, what could be a desireable end result.
If more clarification is needed, please let me know.

This would also add back references from / to slave, to display at the master.

I'm currently hired on a project, where I'm supporting the OS community. When my main tasks are done, I'd like to contribute (this feature) to qelectrotech.

ntd

2021-11-10 12:27

reporter   ~0000527

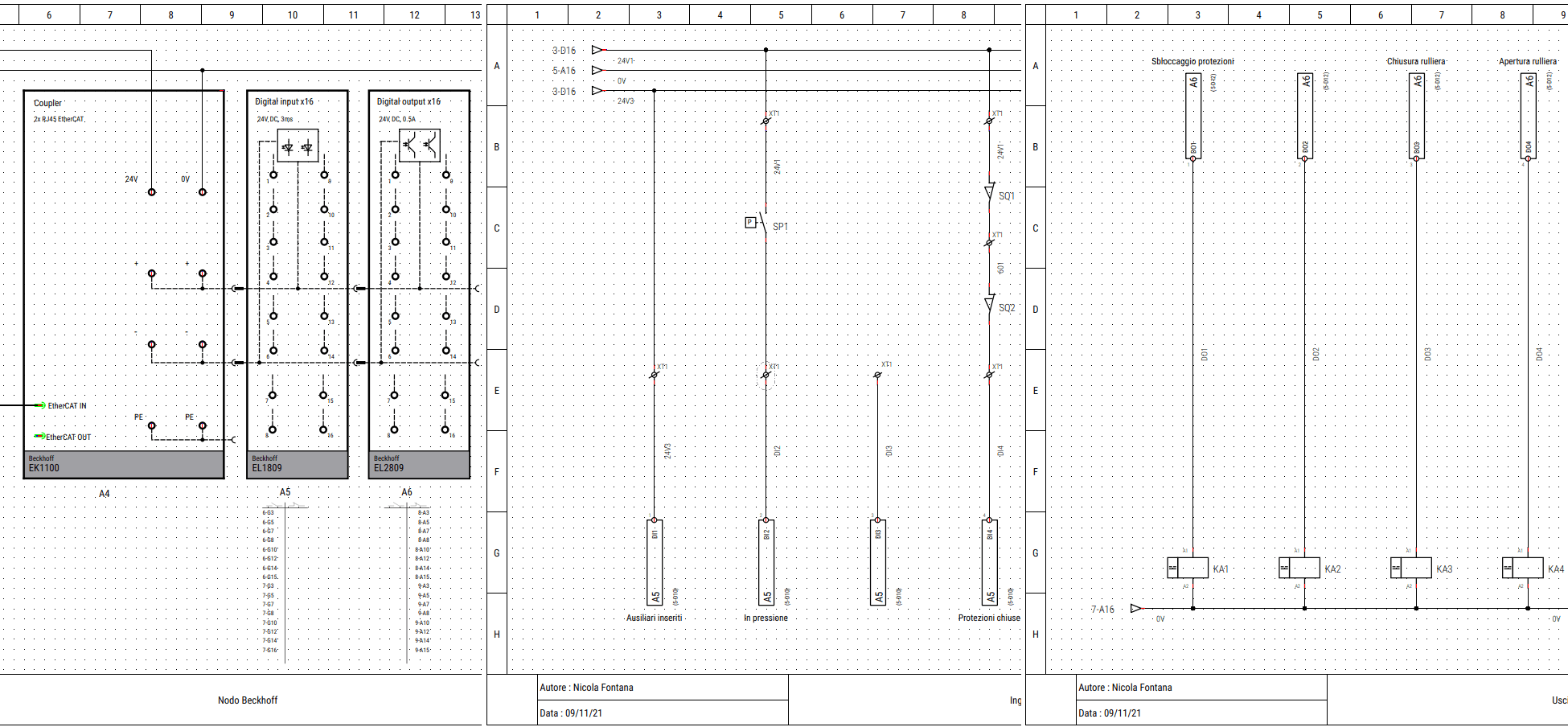

IMO the program is almost there. I'm already misusing the xref to do something like that: the only missing part is that the master element shows my inputs as open contacts and my outputs as closed contacts. In the attached image you can see what I'm talking about.

Tada9

2022-06-23 12:50

reporter   ~0000561

Last edited: 2022-06-23 12:52

I got inpatient and implemented this myself.
It is now merged. You can consider this issue closed.(can't close it myself)
