Summary0000184: Hard to select element if they are too close
DescriptionI have a group of arrows. If I hover over them, I am not able to highlight some arrows, due to the proximity of the others.
I have to move an adjacent arrow out of the way, then I can select it.
TagsNo tags attached.

Activities

scorpio810

2020-02-08 15:40

administrator


cad_tiger

2020-02-21 03:58

reporter   ~0000411

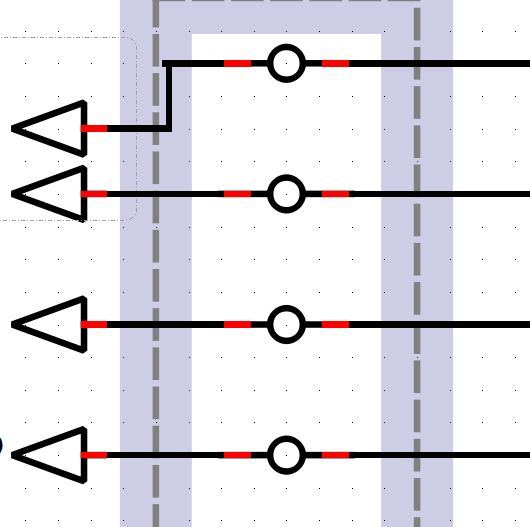

If I place the port too close, the highlight box is too large meaning that I cannot select the lower item.
Solution is to spread out the ports as show in image. Means ports on double grid spacing, whereas single grid spacing looks nicer.

Is there any reason why the selection box is so large?

Issue History

Date Modified Username Field Change
2020-02-07 07:51 cad_tiger New Issue

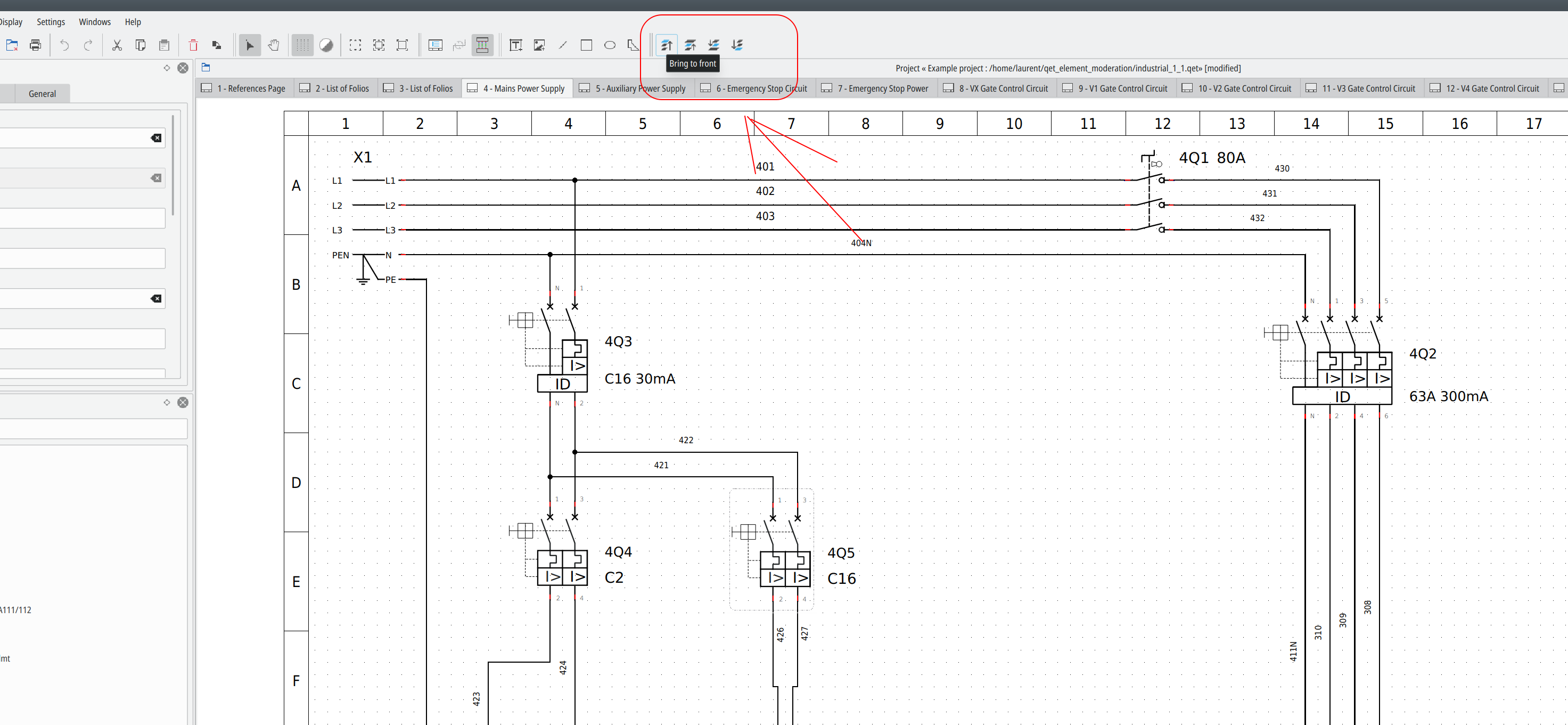

2020-02-08 15:40 scorpio810 File Added: raise_lower.png
